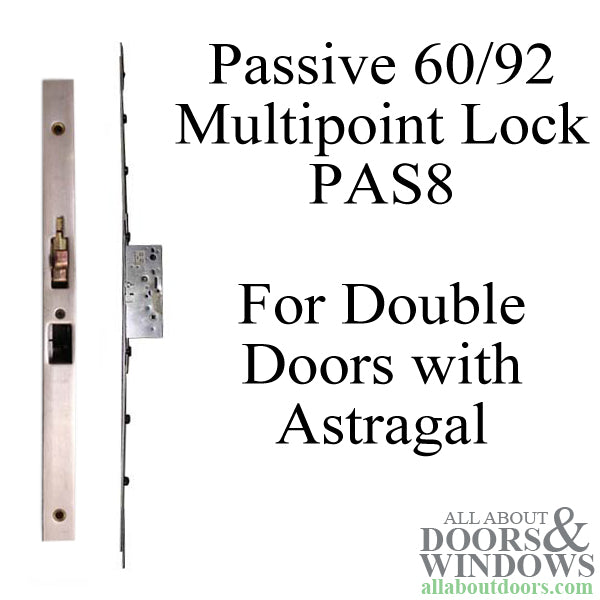

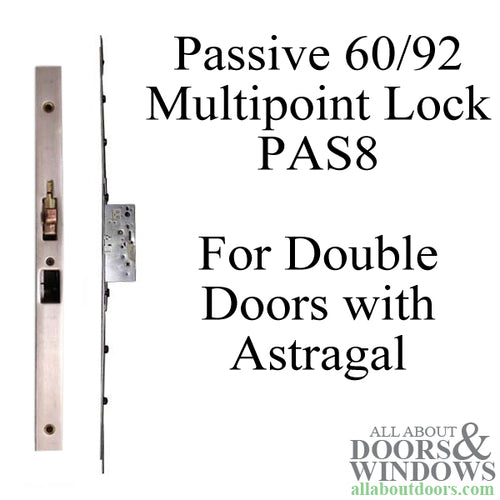

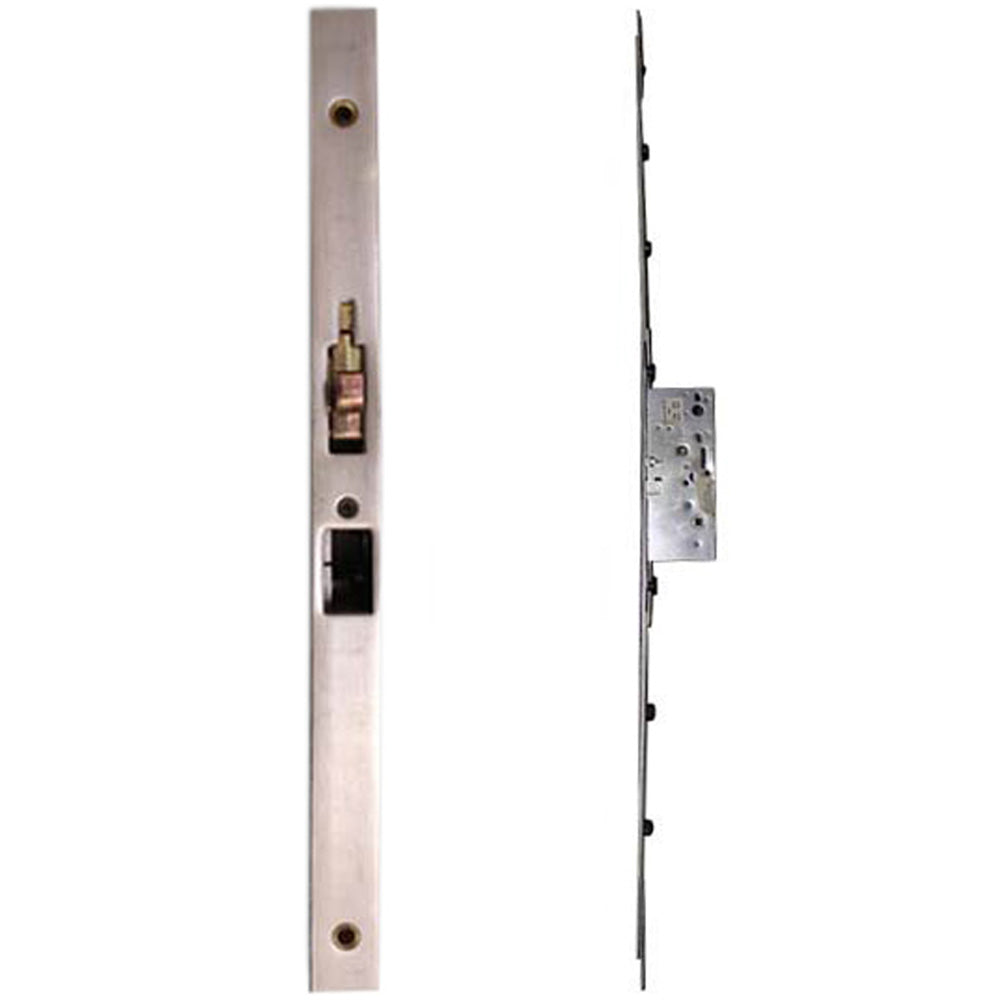

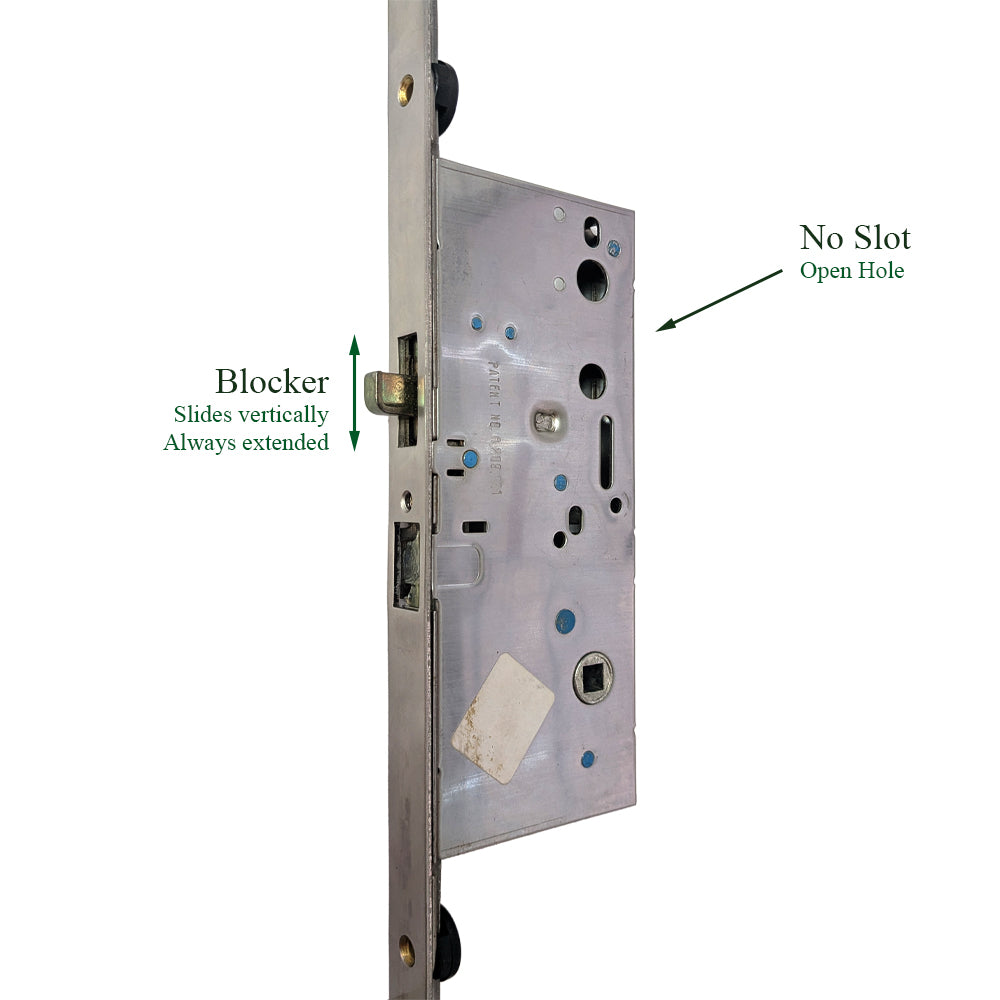

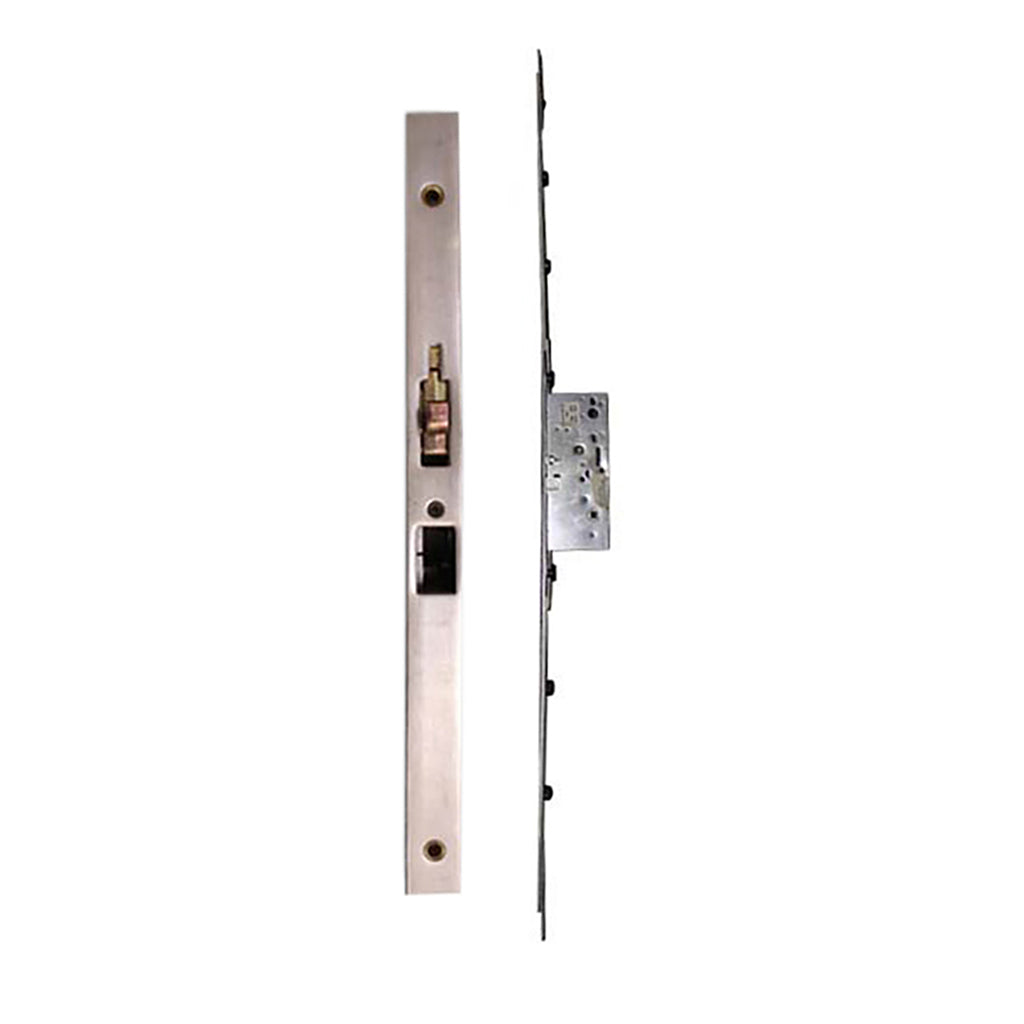

W5100STPAS8 – A passive lock designed for use in a double door system with an astragal

Can work with astragals from ½” up to 1” thick

Faceplate Length: 1040mm (40.93 inches)
Faceplate Width: 20mm (0.78 inches)
PZ (Distance between center of handle and center of cylinder): 92mm (3.62 inches)
Backset: 60mm (2.36 inches)
