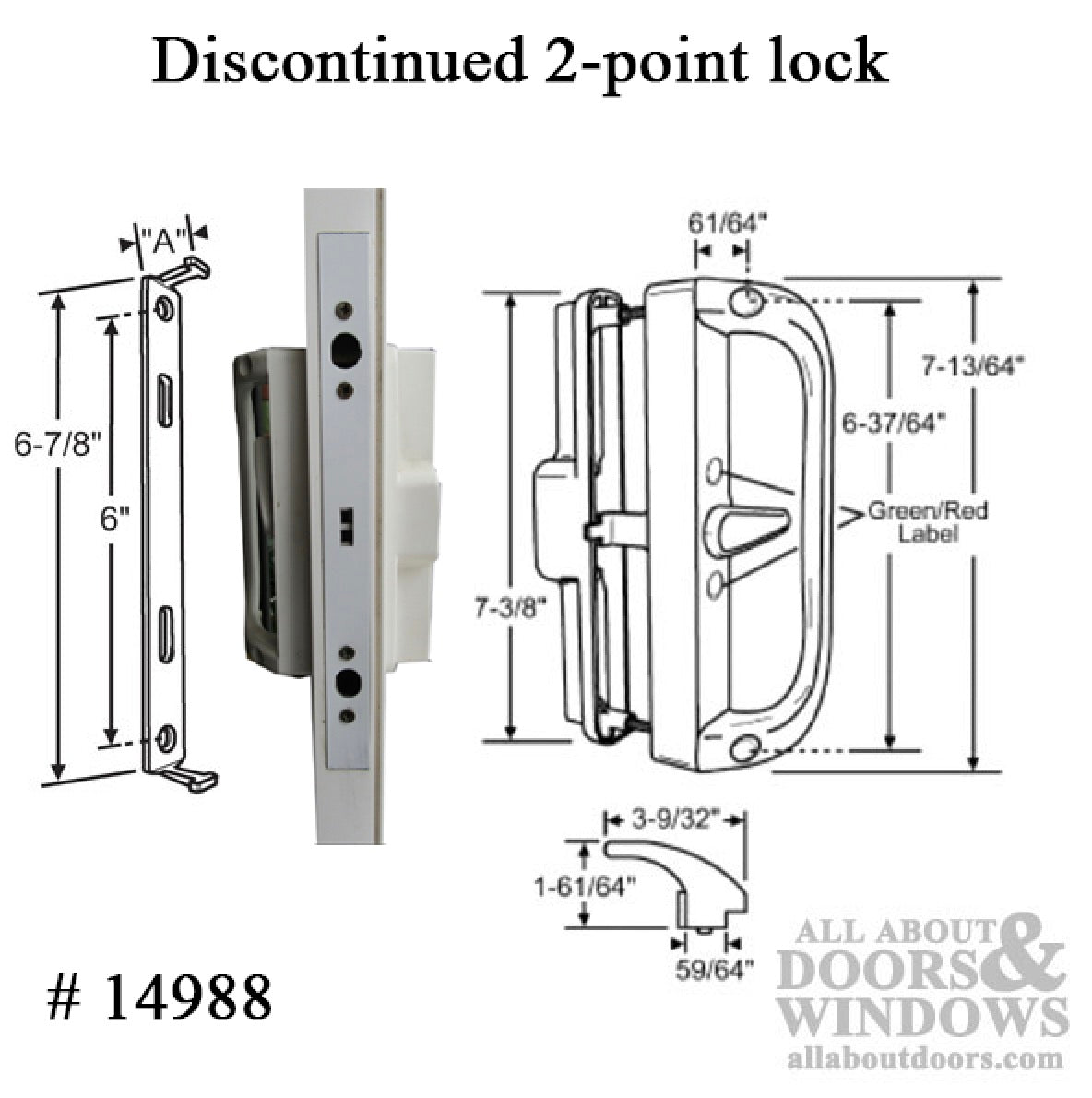

Patio Door Handle with Two Point Mortise Lock
Use the arrows or swipe left to view all images for this product
Patio Door Handle with Two Point Mortise Lock
Part Number:Sliding Patio Glass door handle - Currently Not Available from Therma-Tru
Replacement Option:

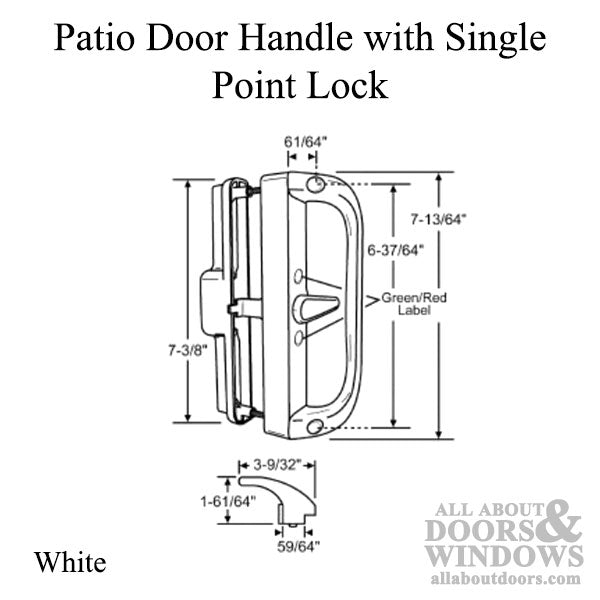

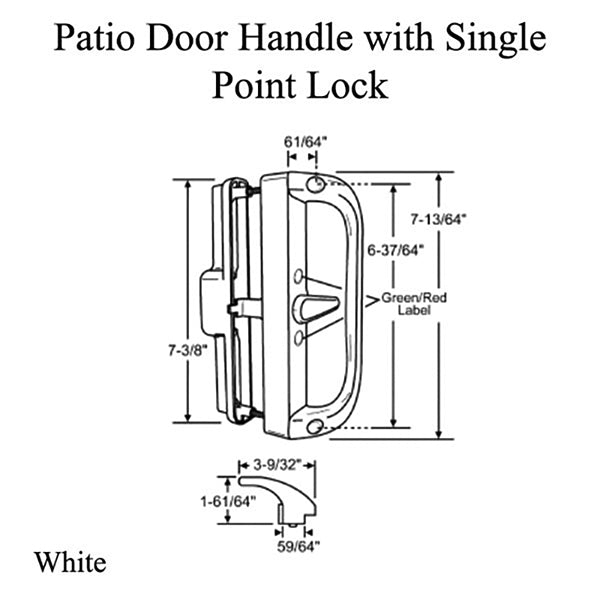

14361 is similar, with 6-9/16 screw holes, may work for most applications
Handle Screws: 6-9/16 inch
Markings: Outside Pull CD 442 / Inside Handle CD 453/ Latch CD 454
Pan head screw: 2-3/16 inch Length
Color: White

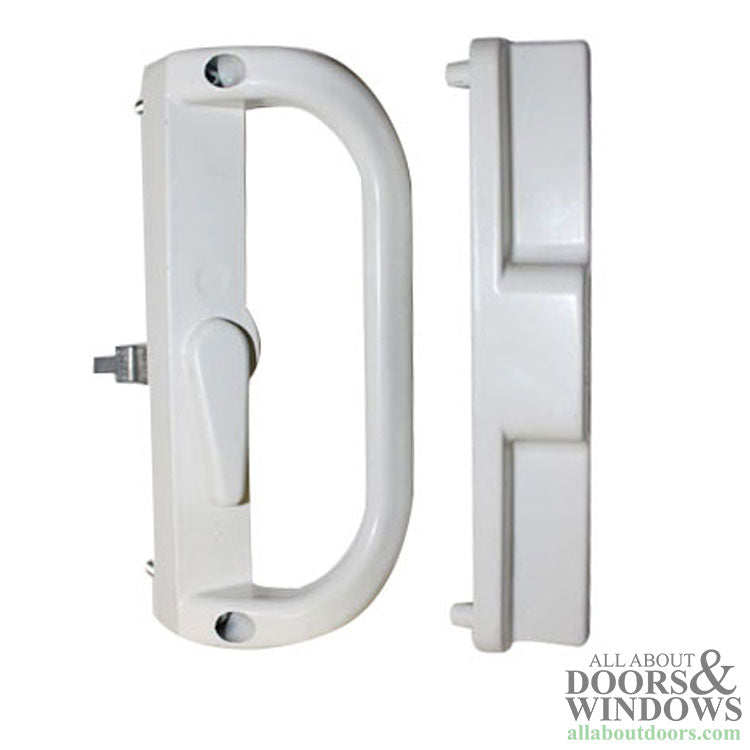

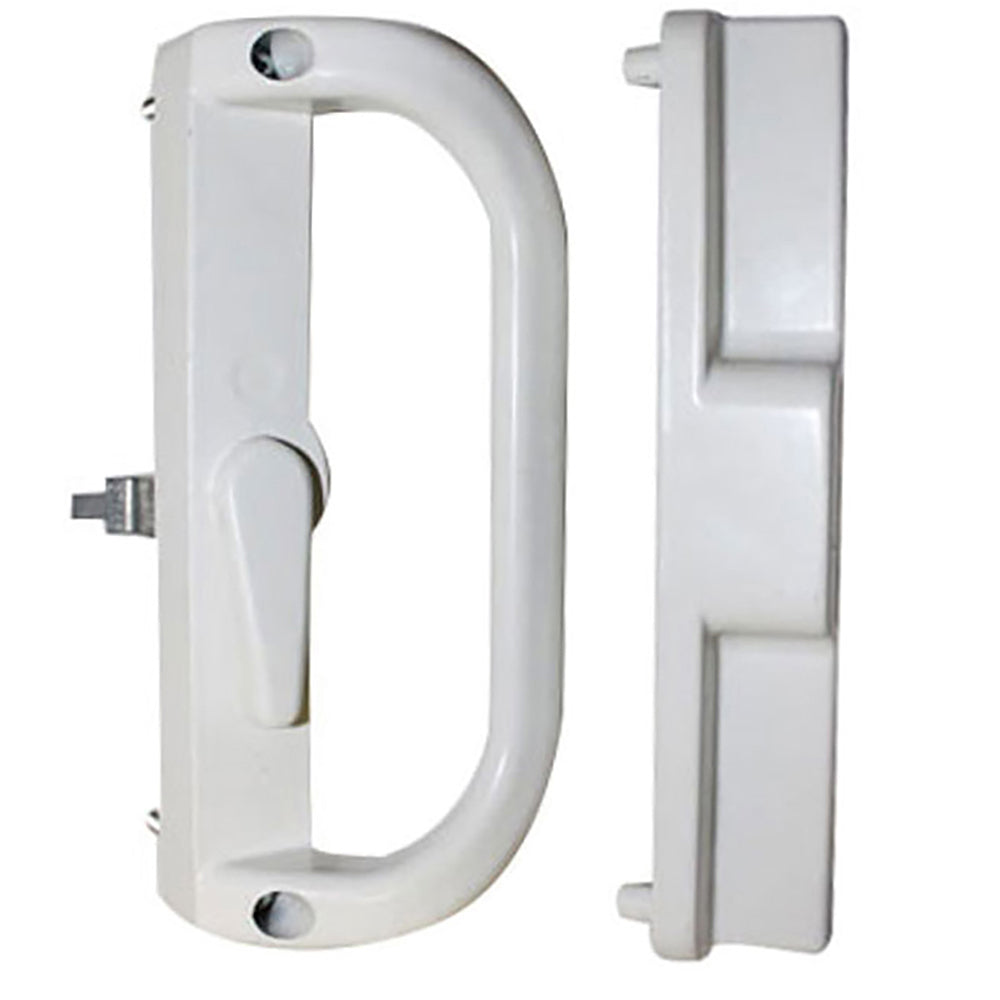

Therma-Tru Slimline sliding door Handleset - White
2 point lock
Handle Screws: 6-1/2 inch
Handle Screw Length: 2-1/4 inch Screw
Cylinder tailpiece: 2 inch length
Sliding Patio Glass door handle - Currently Not Available from Therma-Tru
NOTE: 14361 is similar, with 6-9/16 screw holes, may work for most applications
Handle Screws: 6-9/16 inch
Markings: Outside Pull CD 442 / Inside Handle CD 453/ Latch CD 454
Pan head screw: 2-3/16 inch Length
Color: White
Therma-Tru Slimline sliding door Handleset - White
2 point lock
Handle Screws: 6-1/2 inch
Handle Screw Length: 2-1/4 inch Screw
Cylinder tail piece: 2 inch length
