Peachtree Ariel 13-1/4-4 Channel Balance, 2436 Non-Tilt Window

Part Number: 13.25-4 Price: $11.95
Peachtree Ariel window special channel balance.
Used ONLY on non-tilt Peachtree Ariel windows with an aluminum
outside and a wood inside.

The Width & Height of the window is the call size
D2436 was 24 inches wide and 36 inches tall

IMPORTANT

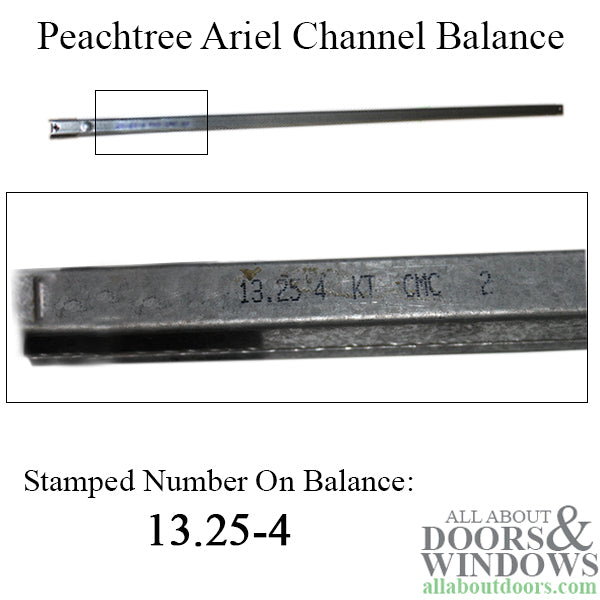

Stamped Number: Please double check all measurements and insure
your old balance has this number stamped on it. (see images)
Number stamped on balance indicates unit size and weight.
Number stamped on this balance: 13-1/4-4
The Channel Balance Length is 1 inch more than the number stamped on balance.

Channel Balance Length: 14-1/4 inch
Weight Capacity: 10 to 12 pounds
Peachtree Call Size: D2436
Priced and sold each.

Other Peachtree Ariel Windows: 24" Widths
D2436
D2440
D2448
D2454
D2460
D2472

Peachtree Ariel Single Hung windows have been discontinued,
Some balances may not be available.
Best if replaced in pairs,
Old balances can be reused as a pair, but it is unsafe to mix old balances with new ones.

NOTE:

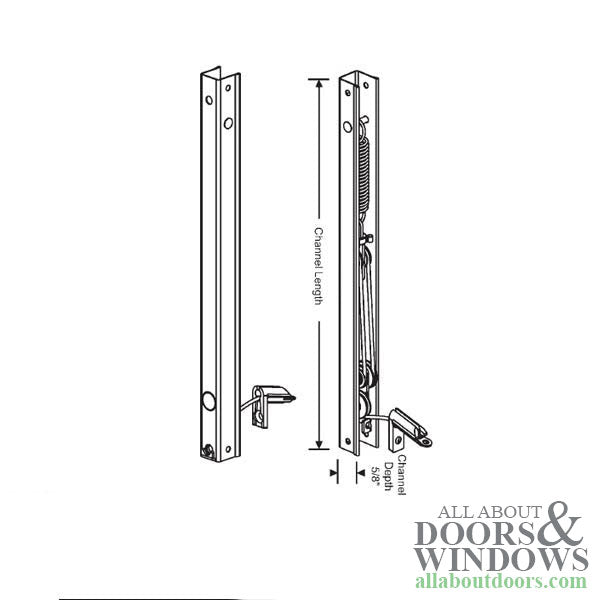

Channel balance is screwed to window and plastic end on cord goes into frame.
Sash needs to be removed to replace channel balance.
See Instructions here.
