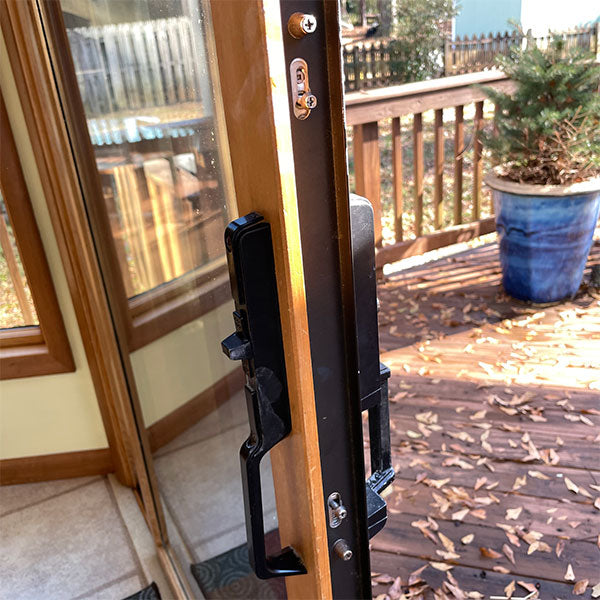

Discontinued Peachtree Ariel Slider Patio Door handle - limited to existing inventory, May have blemishes or imperfections in finish


Peachtree Ariel Door Handle - Existing screw Holes on door are spaced at 5-1/2 inches- 2-3/4 up and 2-3/4 down to center of key.
Used with Two Point Lock on 2 and 3 panel doors.
Inside, Outside handle set, with screws and Key Cylinder, 2 keys. - Black Zinc Finish
Discontinued 2008 Will require Drilling new holes for optional Replacement handle -

Replacement Options:

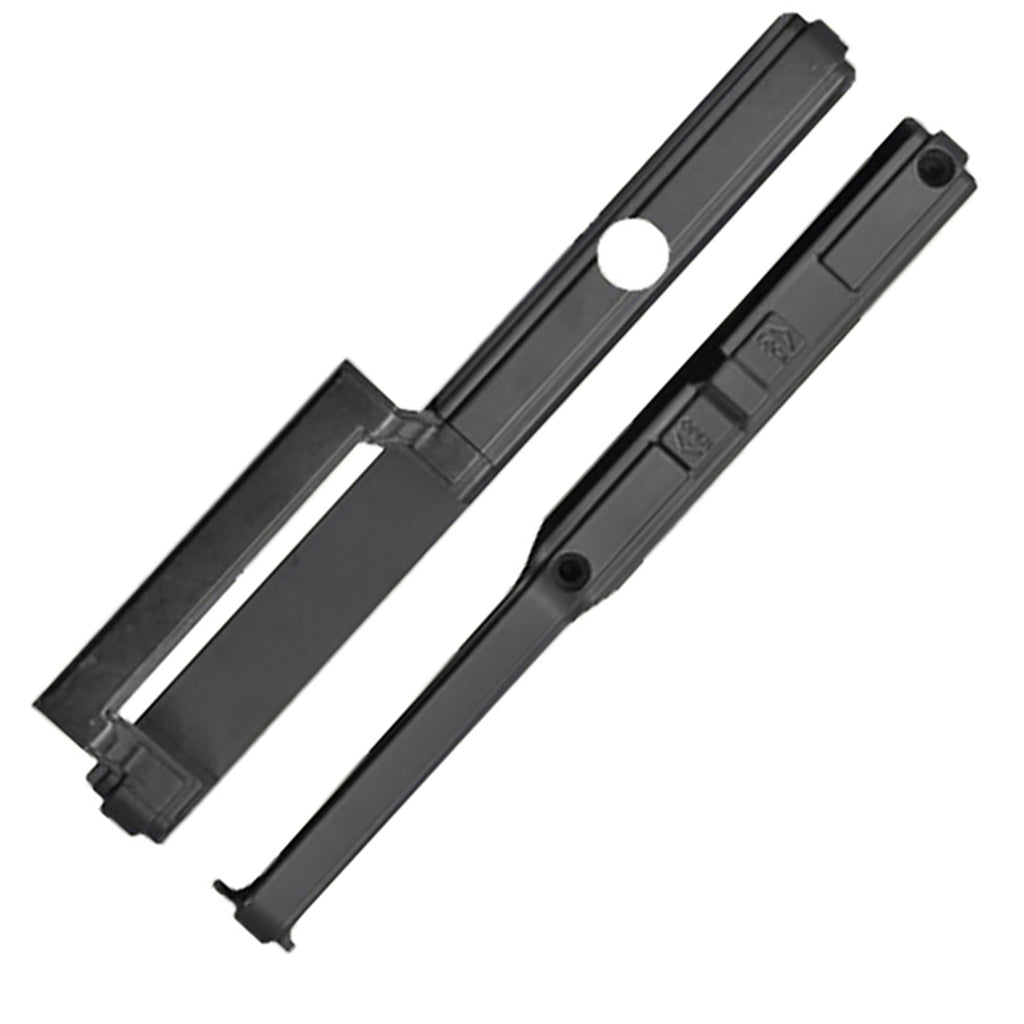

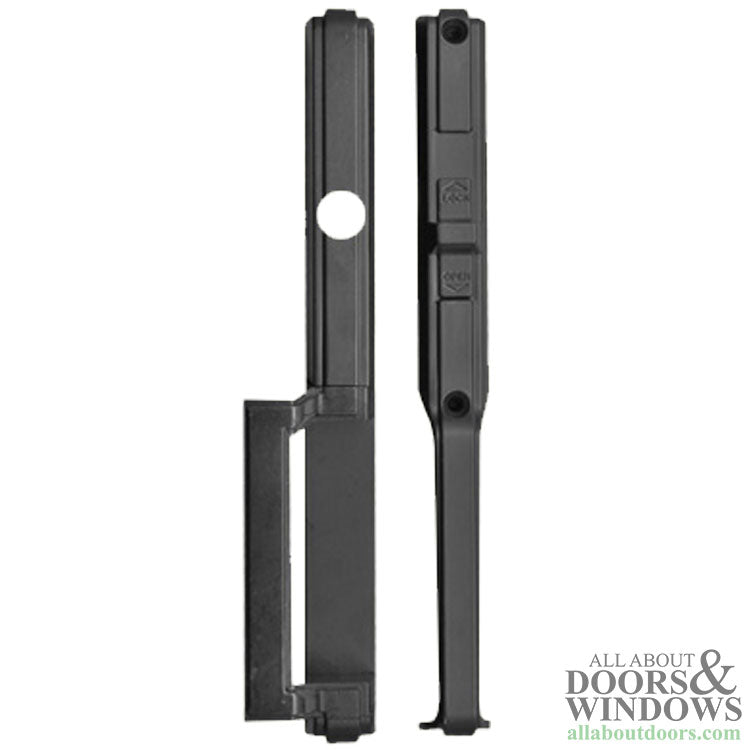

Option 1. 14254-WR - Keyed Exterior
Option 2. 14294 - Keyed Exterior
Available in 5 colors. 3-15/16 screw holes

Note:

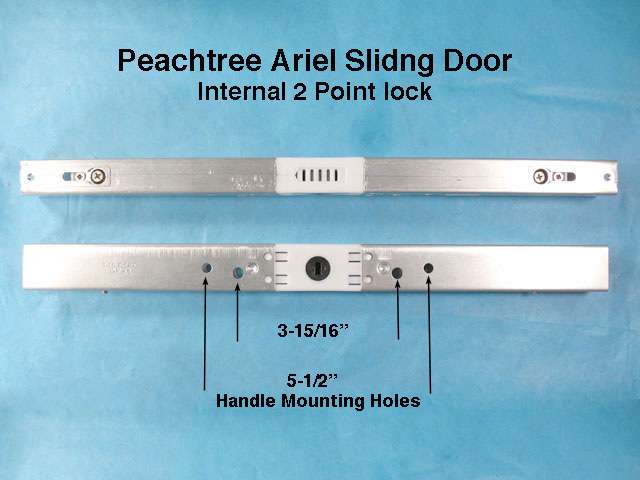

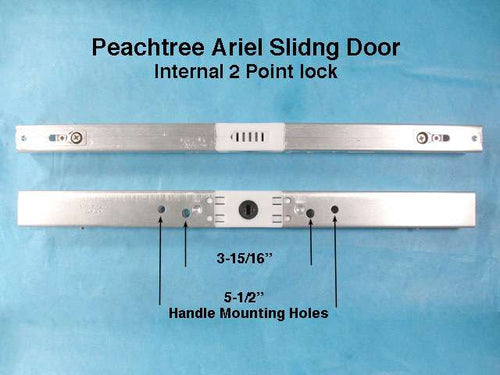

Original Handle had 5-1/2 screw holes in line with thumb latch
Replacement handles have 3-15/16 holes not inline with thumb-turn

IMPORTANT: When using replacement hardware there are 3 possible positions for the thumb latch,
USE THE CENTER POSITION

Caution: take care not to mis-drill holes.

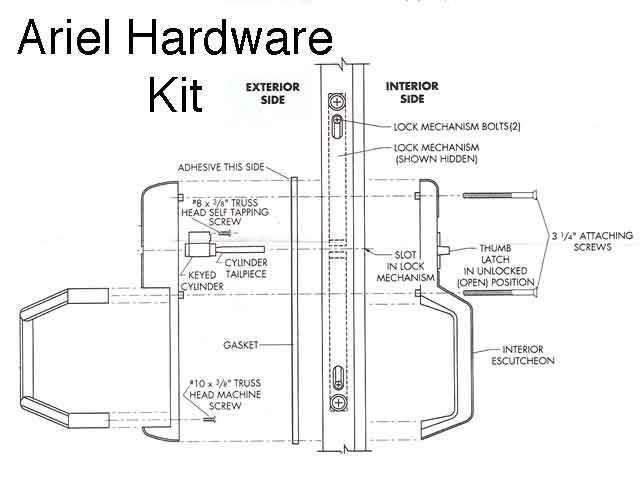

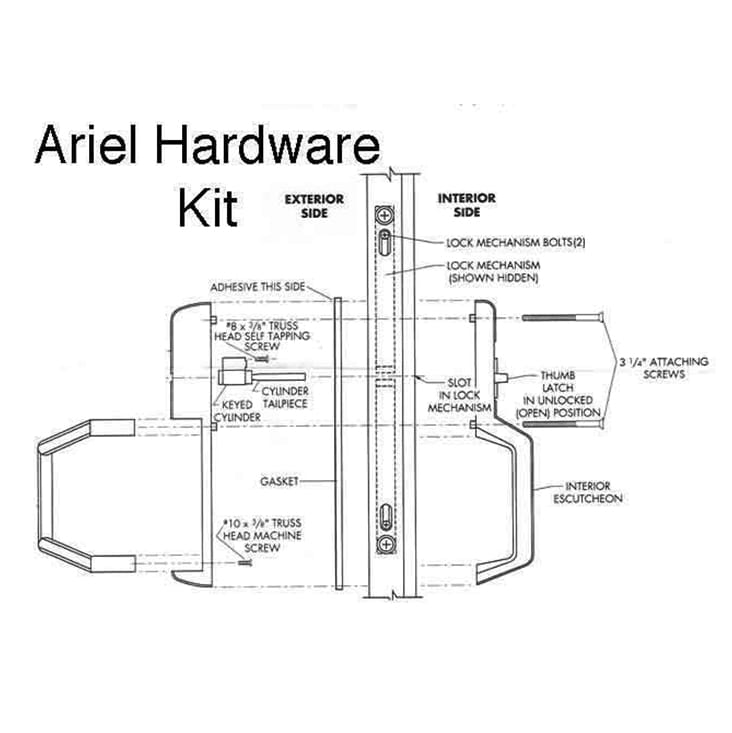

Installation Notes:
1. Using inside handle of replacement hardware 14418, 14254 or 14294
2. Put latch in center slot of inside handle
3. Insert flat tail piece into internal lock
4. Align screw holes vertically by measuring from edge of door - be sure the distance is the same for both screws.
5. Drill 1/8 inch pilot hole
6. Remove inside handle and put on outside of door, repeat step 4 & 5
7. Remove handle and drill through door using a maximum 1/4 inch bit
8. Install replacement handle - tighten screws snug only - do not over tighten.

Related Parts:
34021001 - Ariel Sliding Door Lock
