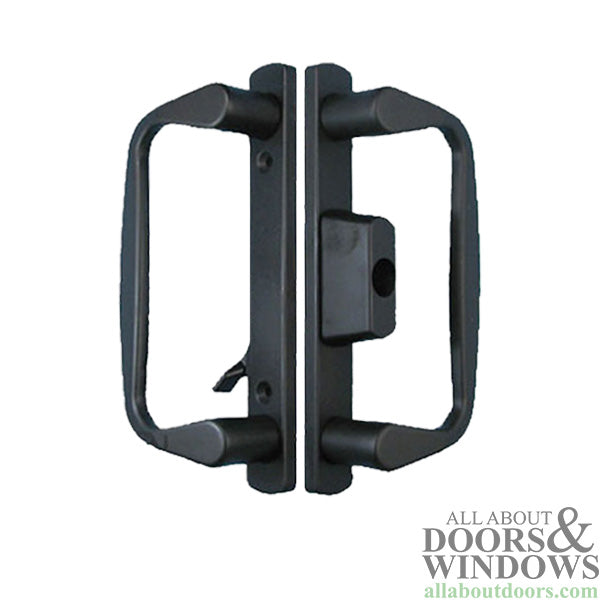

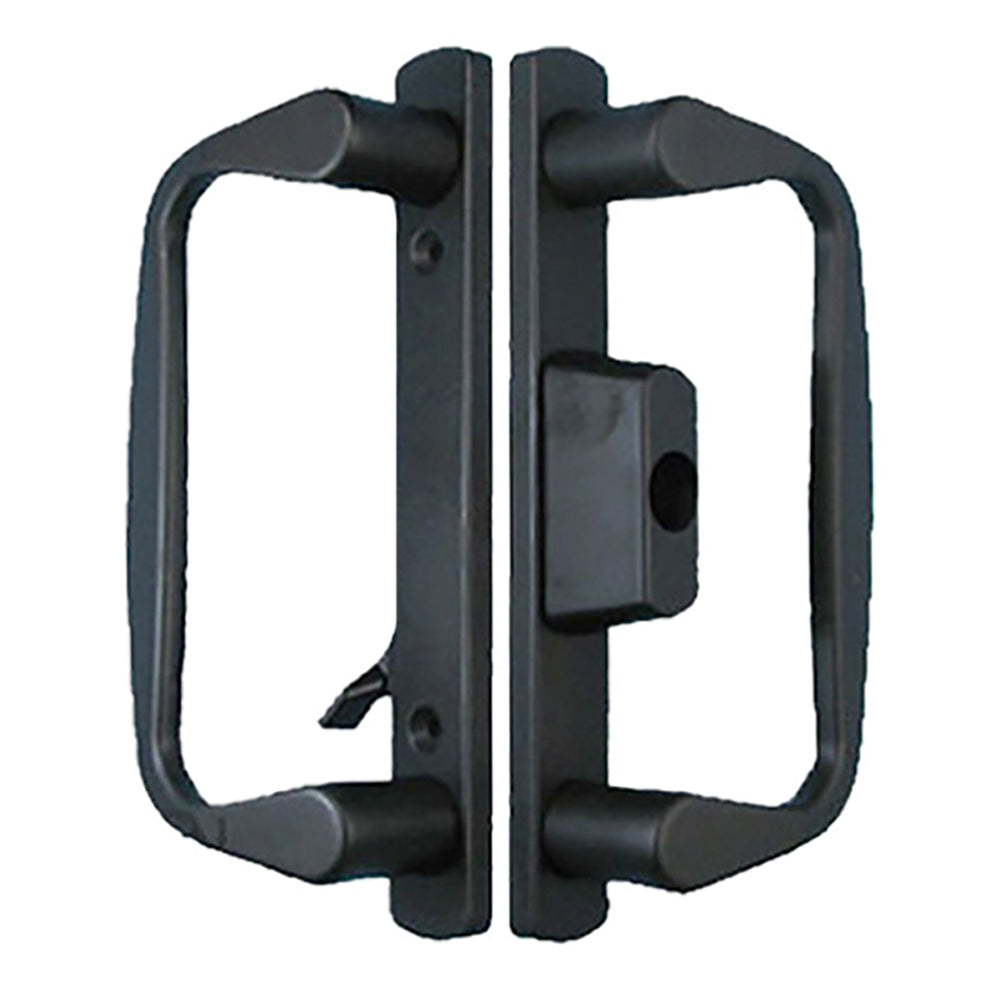

Peachtree Prado sliding patio glass door handleset
This part has been discontinued and is no longer available. Please see replacement options below.
We have found the best options for replacement handle sets are:
14254-WR
14294

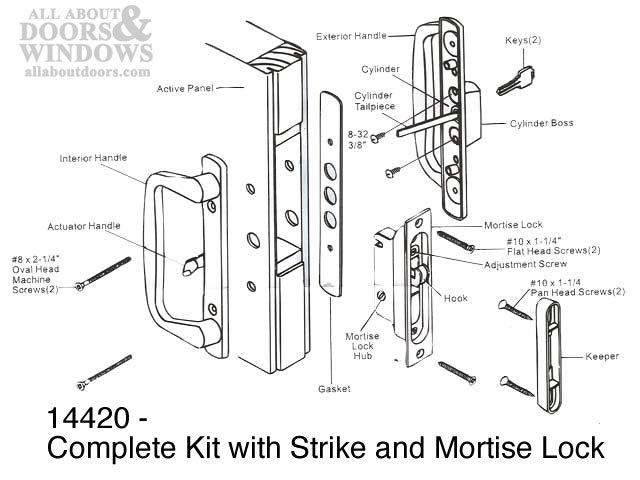

Mortise lock replacement (you will want to keep your original white mortise faceplate to use with this replacement):
15143
Includes: handles, Thumb Latch, keyed cylinder, 2 keys.
Rekeyable composite cylinder for Weiser, Weslock, Master, Dexter or Kwikset keying.
Handle screw holes spaced at 3-15/16 inches
Replaces other patio doors with centered keyed handles with same screw hole spacing
Easy Install with just a screwdriver
Available in 4 Colors:
Brass
Satin Nickel
White
Dark Bronze Finish (Peachtree's oil rubbed bronze)

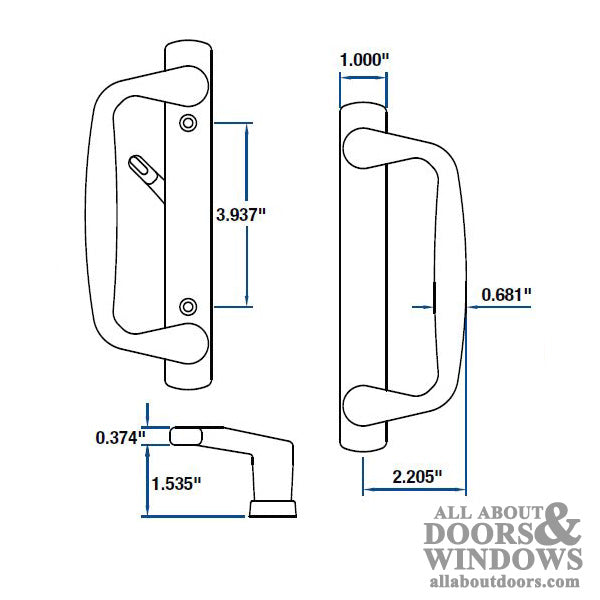

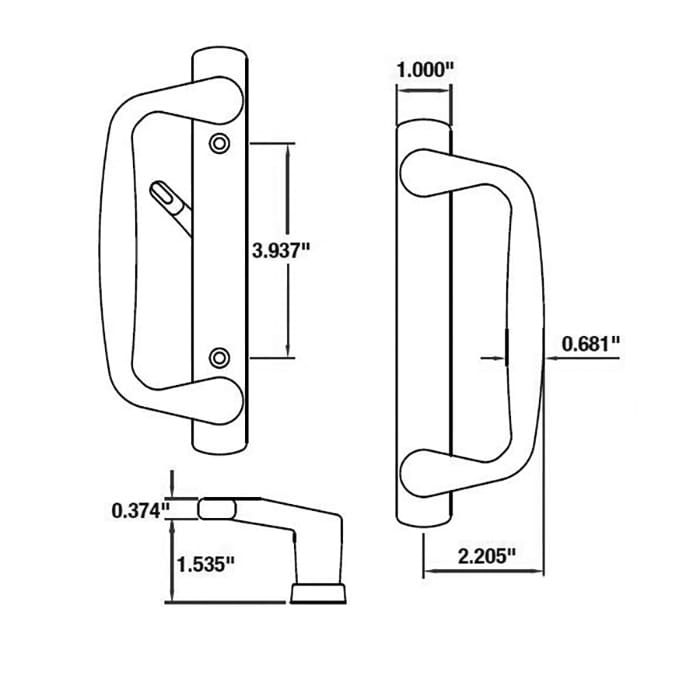

Peachtree Handle Dimensions:
Screw Holes: 3-15/16 inch
Plate Width: 1 inch
Plate Height: 8-1/2 inch
Handle Projection: 1-1/2 inch

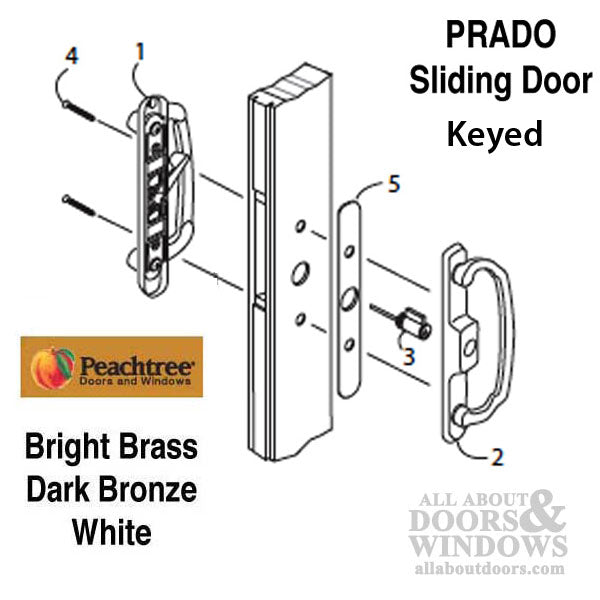

Peachtree Prado Sliding Door Hardware Installation Guide
This part has been discontinued and is no longer available. Please see replacement options below.
We have found the best options for replacement handle sets are:
14254-WR
14294
Mortise lock replacement (you will want to keep your original white mortise faceplate to use with this replacement):
15143
Includes: handles, Thumb Latch, keyed cylinder, 2 keys.
Rekeyable composite cylinder for Weiser, Weslock, Master, Dexter or Kwikset keying.
Handle screw holes spaced at 3-15/16 inches
Replaces other patio doors with centered keyed handles with same screw hole spacing
Easy Install with just a screwdriver
Available in 4 Colors:
Brass
Satin Nickel
White
Dark Bronze Finish (Peachtree's oil rubbed bronze)
Peachtree Handle Dimensions:
Screw Holes: 3-15/16 inch
Plate Width: 1 inch
Plate Height: 8-1/2 inch
Handle Projection: 1-1/2 inch
Peachtree Prado Sliding Door Hardware Installation Guide
