This item is Discontinued and is no longer available.

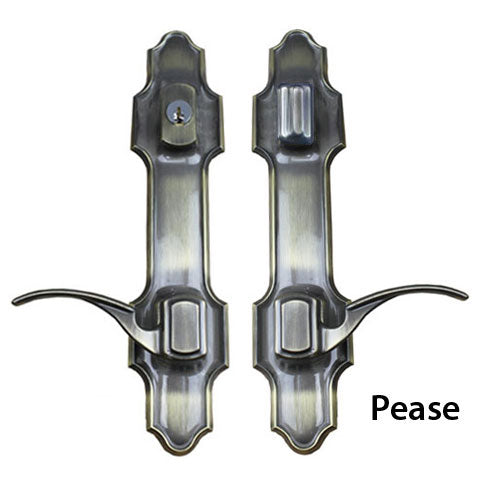

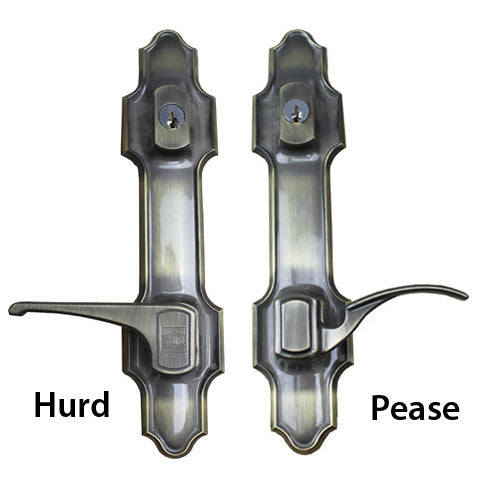

Hurd complete Normandy patio door lock set.
Used by Many Companies Like Pease, Hurd, Weathershield and others.
Backset: 2, 2 -3/8 and 2 -3/4 inch
Backplate Length: 10-1/2 inch
This lockset uses 2 individual latches, One spring latch and one dead bolt latch.

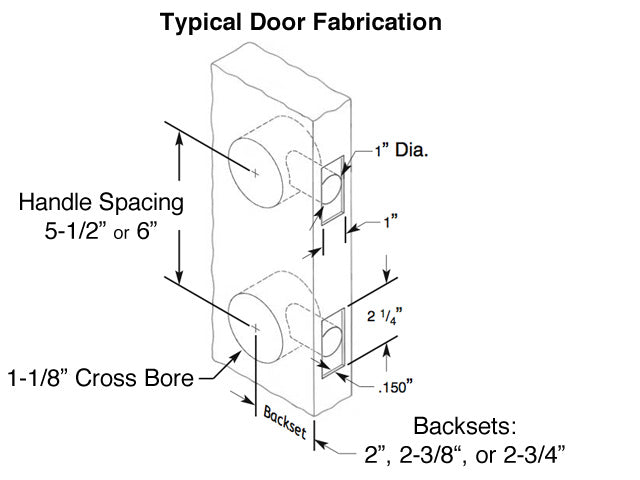

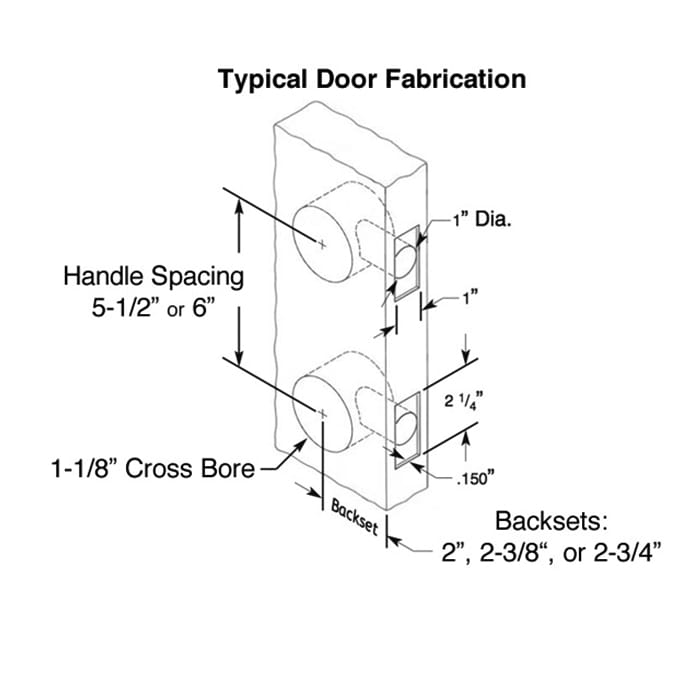

Hole spacing for the latches is 5-1/2 Centers, some doors where 6 inch
Backset: Standard 2-3/8, some doors had 2-3/4 or 2 inch
The most common problem is the internal spring on the handle breaks or the black plastic bushing breaks
Related Pease door replacement hardware:
40055 - 6 Inch Bore Spacing
40054 - 5-1/2 inch Bore Spacing
Pease/Normandy Style lockset some individual parts available:

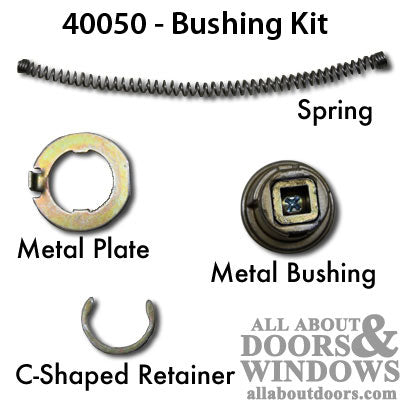

40050 - Bushing Kit, Metal Upgrade
40043 - 2-3/4 Backset Deadbolt Latch
40044 - 2-3/4 Backset Spring Latch
40045 - 2-3/8 Backset Deadbolt Latch
40046 - 2-3/8 Backset Spring Latch
40047 - 2 inch Backset Spring Latch - Discontinued - See 48145201+481499001
40048 - 2 inch Backset Deadbolt Latch - Discontinued - Limited Qty
40049 - 2 Backset Latches, Spring & Deadbolt Combo - Discontinued
40051 - 2-3/8 Backset Latches, Spring & Deadbolt Combo
40052 - 2-3/4 Backset Latches, Spring & Deadbolt Combo
