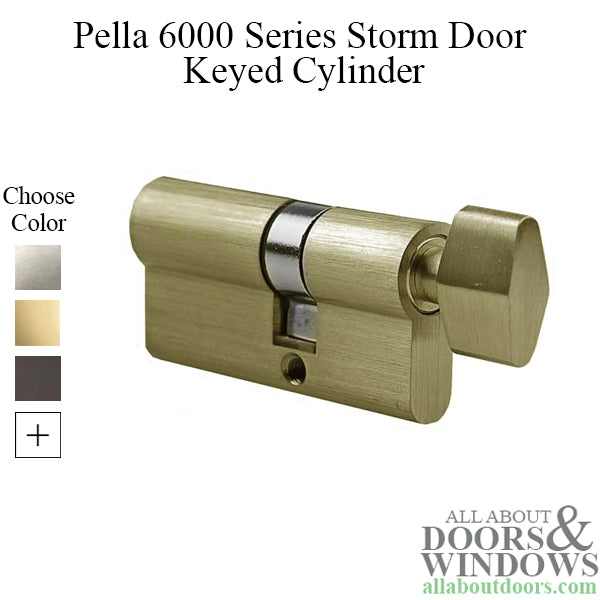

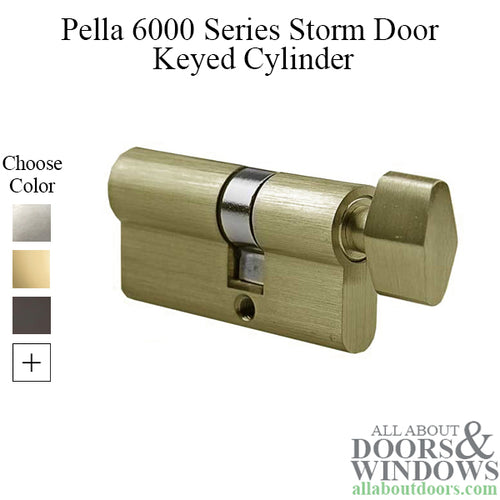

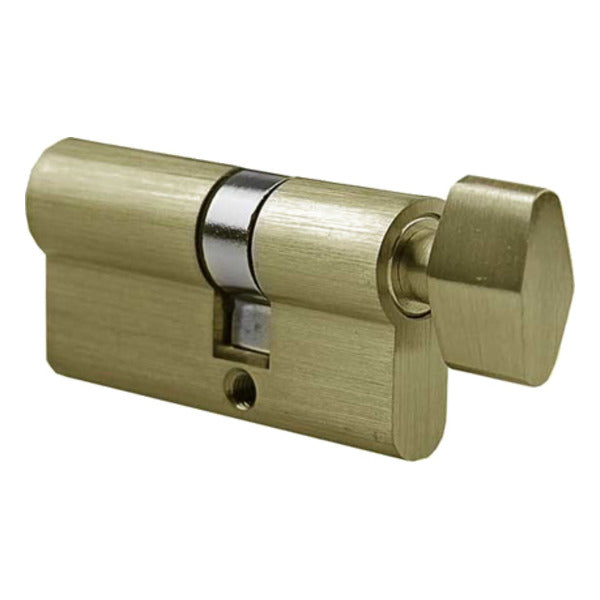

Pella 6000 Series Replacement Key Cylinder Schlage Keyway

Pella 6000 Series Replacement Key Cylinder Schlage Keyway

Type: Euro Version, 270A degrees
Keyway: Schlage 5 pin SC-1
Note: This lock can not be rekeyed with traditional pins, it uses a smaller diameter pin.

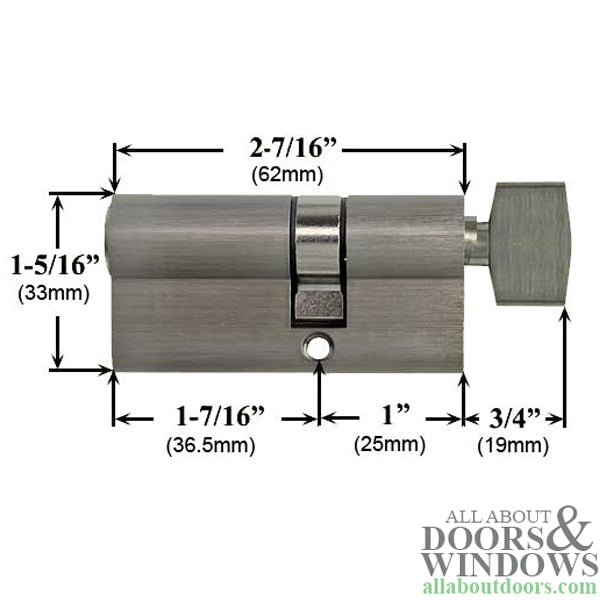

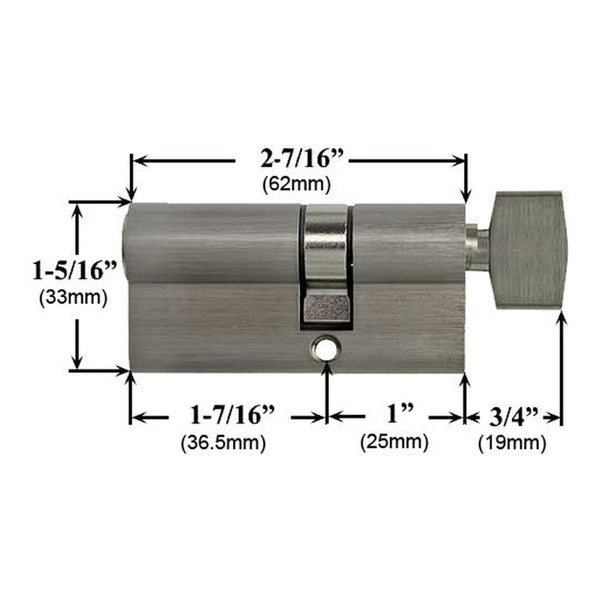

Overall Length: 2-7/16 Inch, offset cam
Height: 1-5/16 Inch
Thumbturn Projection: 3/4 Inch
Color/Finish: Polished Brass

NOTE: This cylinder is designed for the 2 bolt lock, may not work on other products
Pella Replacement cylinder for 2 bolt lock must be 270 degree
Pella's cylinder knob/key turns 270 degrees before the cam starts to turn.
cylinder knob/key turns 270 degrees before the cam starts to turn.

Available Finishes: Satin Nickel, Polished Brass, Oil Rubbed Bronze, Antique Brass
