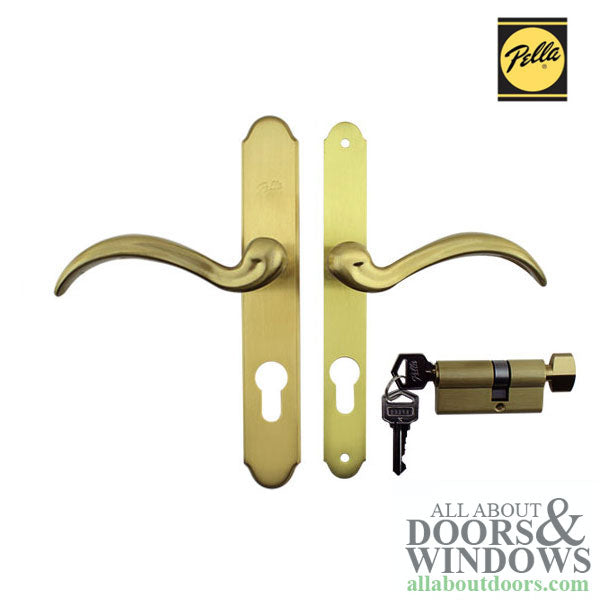

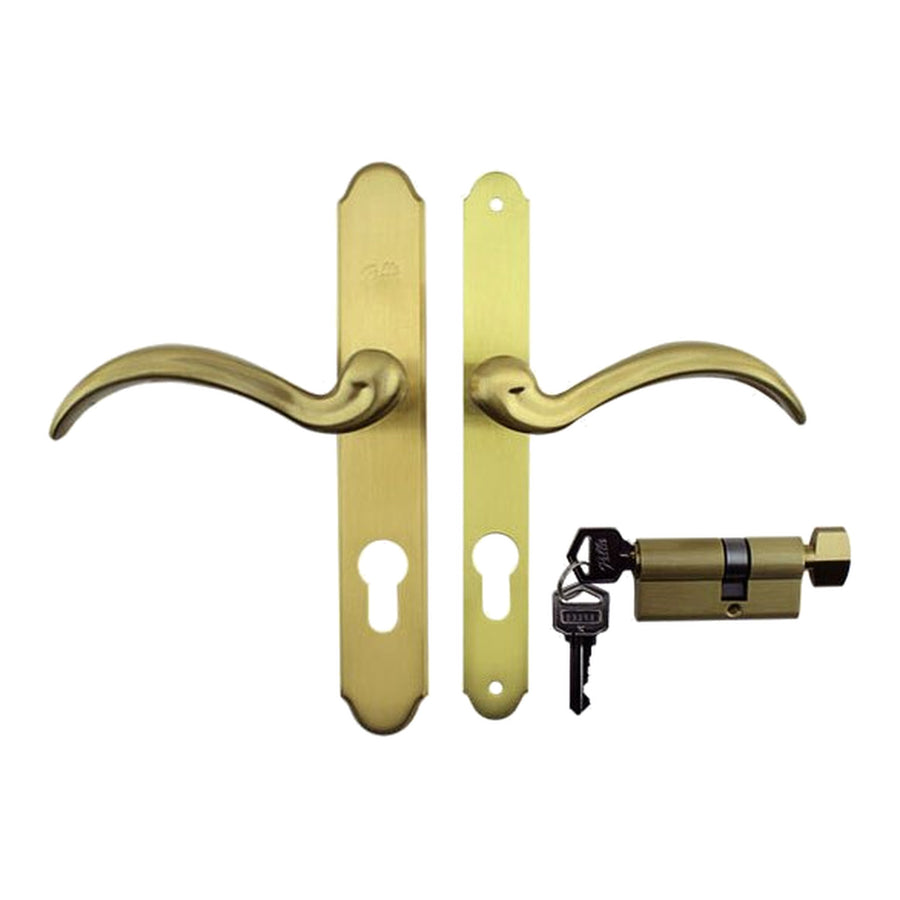

Pella Select 6000 Series Mortise Lock Storm Door Hardware Trim
Use the arrows or swipe left to view all images for this product

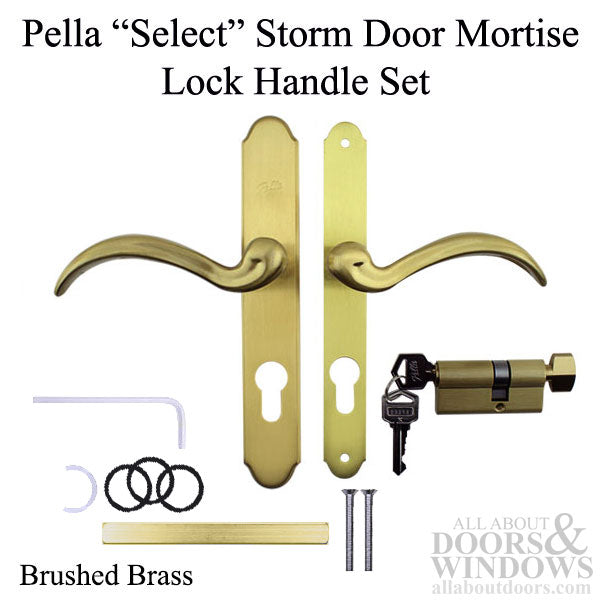

Pella Select 6000 Series Mortise Lock Storm Door Hardware - Brushed Brass
This trim does NOT fit the 2 Bolt Mortise (#305013)
Specifications:
- Backset: 7/8 Inch
- PZ: 2-1/2 Inches (center of handle to center of cylinder)
- Screw Holes: 7-1/4 Inches
- Faceplate Length: 8-1/4 Inches
- Faceplate Width: 1-5/16 Inches
- Cylinder Type: Euro, offset tailpiece
- Keyway: Kwikset KW1
Mortise Lock box NOT included in this package
See part # 22424
Priced and Sold each.
Pella Select 6000 Series Mortise Lock Storm Door Hardware TrimFinish: Brushed Brass
**This trim does NOT fit the 2 Bolt Mortise (#305013)

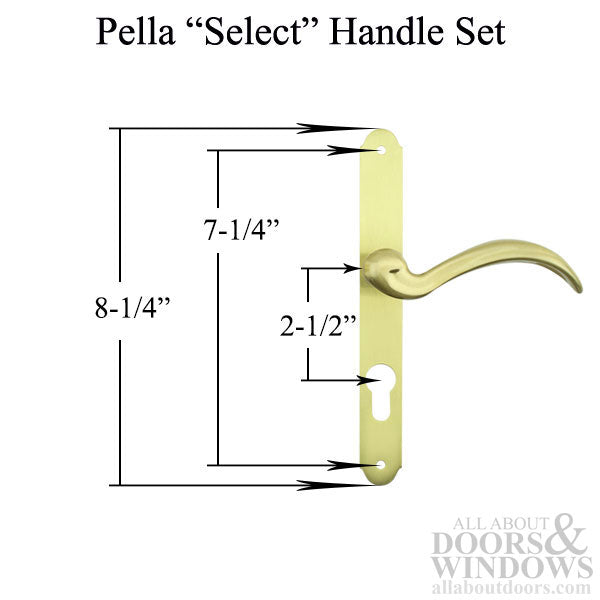

Handle Set Measurements:
Backset: 7/8"
PZ: 2-1/2" (center of handle to center of cylinder)
Screw Holes: 7-1/4"
Faceplate Length: 8-1/4"
Faceplate Width: 1-5/16"
Cylinder type: Euro, offset tailpiece
Keyway: Kwikset KW1
Mortise Lock box NOT included in this package
See part # 22424
Priced and Sold each.
Related Parts:
22424 - Pella Select Storm Door Mortise Lock
