Pella Active panel Multipoint lock with Deadbolt and vertical locking shootbolts
SPECIAL NOTE: This item is a SPECIAL ORDER item and may take 2-4 weeks for delivery.
To insure your lock order is placed correctly please contact our office with the following information.
We will require the age and height of your door.
Less Expensive - In stock option, see Multipoint Lock 4990330 AND 40325 Upper Extension
Type: 3-point lock with Deadbolt and vertical locking shootbolts
Faceplate Width: 5/8 inch (16mm)

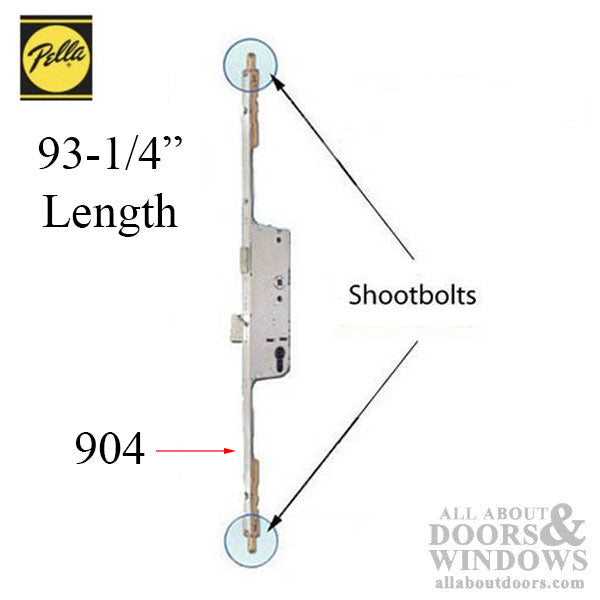

Faceplate Length: 93-1/4 inch ( 2368mm)

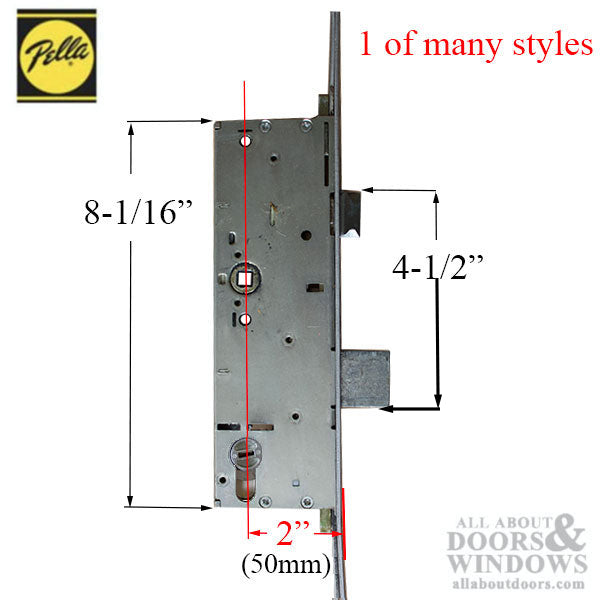

Backset: 2 inch (50mm)
Deadbolt Throw: 1 inch (25.4mm)
Handle Height: 35 inch (889mm)
Markings: Pella 904 on Faceplate
Replace with G-U / Ferco 50/92 + 500mm Extension
Pella Replacement Options:
1. Pella Original Replacement
Pella needs picture of door and frame size to order Pella MPL or Serial Number
2. G-U / Ferco 16/50/92 35" HH 2 piece lock, can be cut to size for door height
G-U latch and deadbolt are off less than 1/16 inch, lock case is slightly smaller. This replacement is what Pella used before this model of Multipoint Lock
For G-U Replacement, Doors up to 81 inches tall See 4990330-KIT
Doors over 81 inches up to 100 inches need an extension See 40325
SPECIAL NOTE: This item is a SPECIAL ORDER item and may take 2-4 weeks for delivery.
To insure your lock order is placed correctly please contact our office with the following information.
We will require the age and height of your door.
