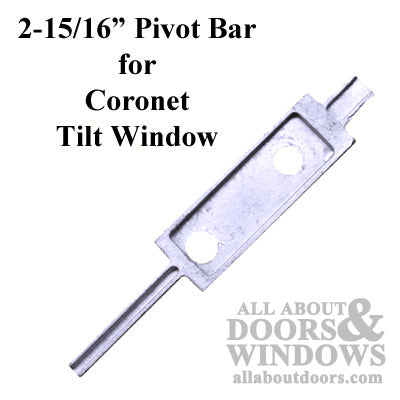

Pivot bar for old (late 80's) single hung and double hung vinyl windows Typically used with a 5/8 inch spiral balance rod
Used by Alcoa, Coronet, Seal Rite and others.

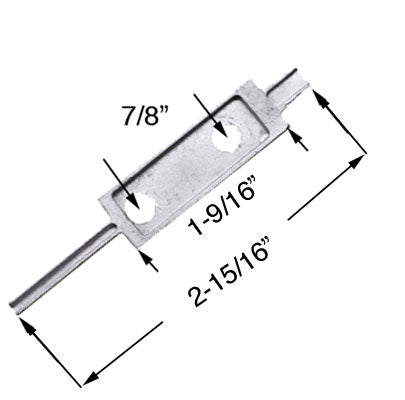

Length: 3 inch
Width: 1/2 inch
Thick: 5/16 inch
Screw hole spacing: 7/8 inch
Top center hole to long tail tip: 2-1/8 inch
Top center hole to short tail tip: 13/16 inch
Lower center hole to long tail tip: 1-1/4 inch
Lower center hole to short tail tip: 1-5/8 inch
Material: zinc die cast.

AVAILABLE REPLACEMENT OPTION:
532020 - T-Head Pivot Bar
62565 - Pivot Block Shoe, 1-1/4 width

There are several options, we think this is the best solution.
