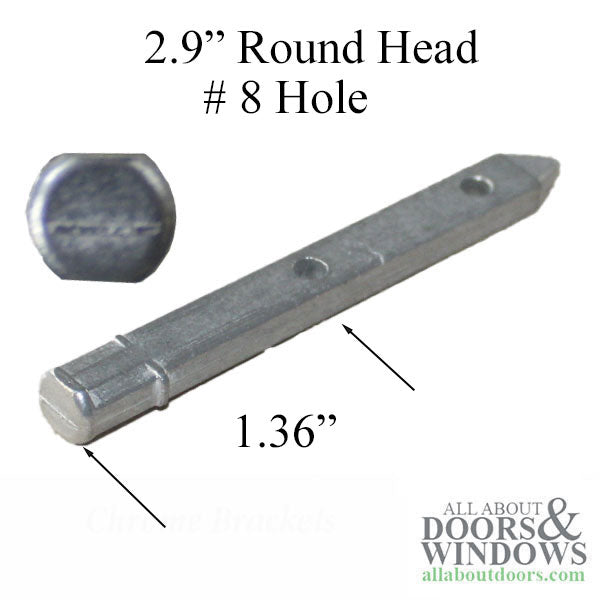

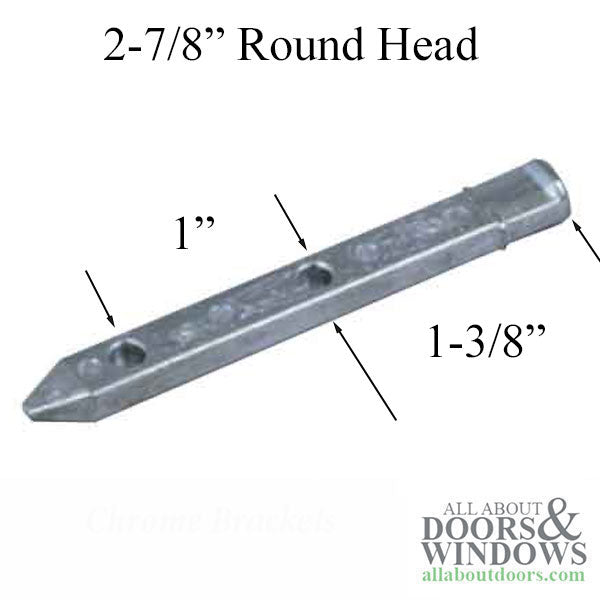

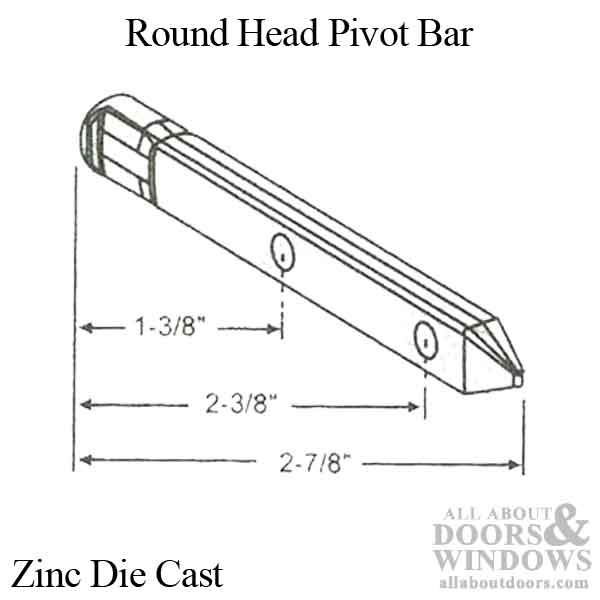

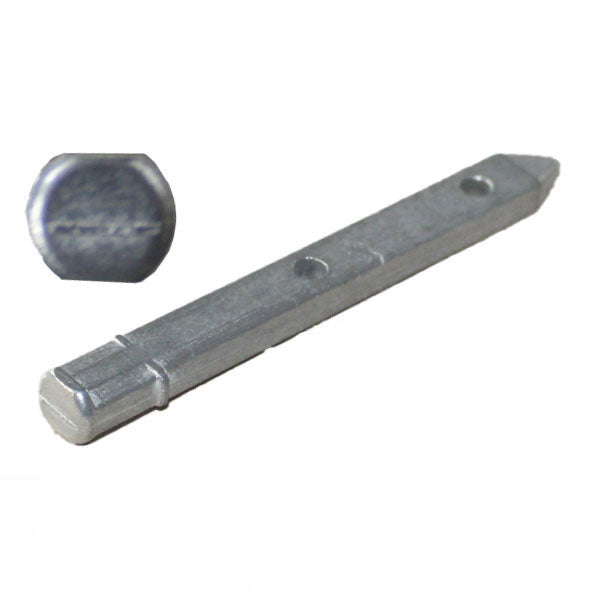

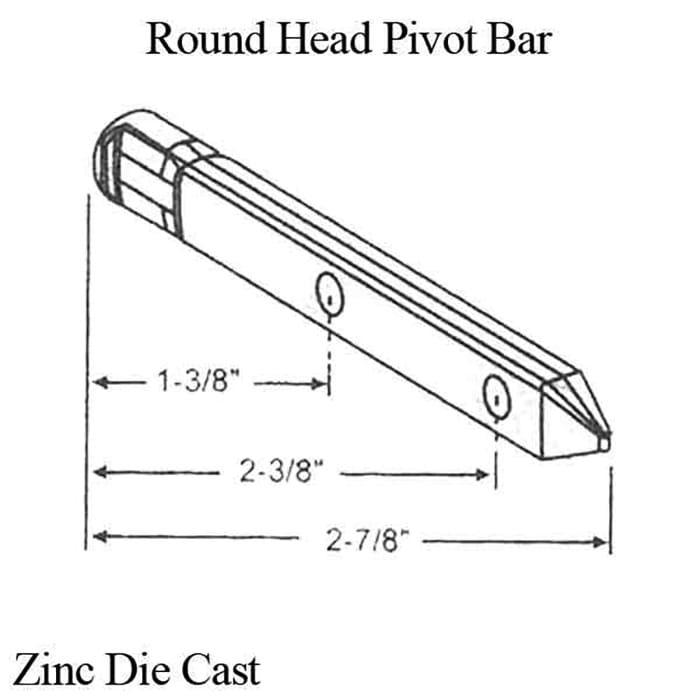

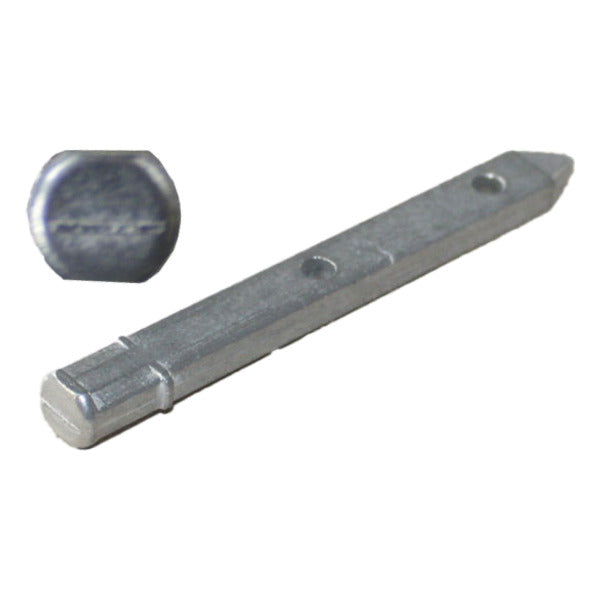

2-7/8 inch straight Pivot Bar with round head, 2 hole spaced 1 inch apart/
Round head pivot bar for use with New style quick tilt constant force balance assemblies.

Head Type: Round
Pivot Bar Length: 2.90 inch (73.66mm) 2-29/32
First Hole Location: 1.36 inch (34.54mm) 1-23/64
Second Hole Location: 2.36 inch (59.94mm) 2-23/64
Bar Configuration: Straight
Number of Holes: 2
Screw Size: # 8
Screw Included: No
Scribe Line: 0.438 (11.125mm) 7/16 inch
Material: Die-Cast Zinc Alloy


NOTE:

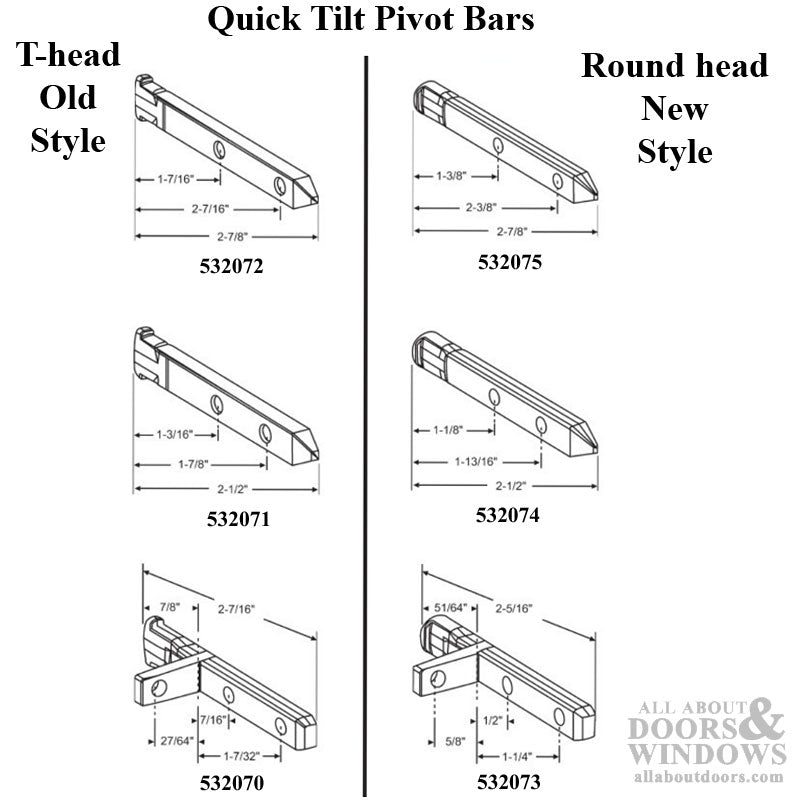

The Old style pivot bars # 532072 had a T-Head, the New style have a round head, # 532075. They are not normally interchangeable without grinding the head to fit opening.
