Pivot Bar, Tilt Window, 1 holes, 2-1/2 inch, Zinc die cast

Part Number:532039 Price: $3.95
Pivot Bar, Tilt Window, 1 holes, 2-1/2 inch, Zinc die cast.

Straight Pivot Bar has 1 ear/ leg.
Overall length 2-1/2 inches, 5/16 Wide, 3/16 thick.
The single hole is 1-1/2 inches from Pivot end.
1 inch from tip.

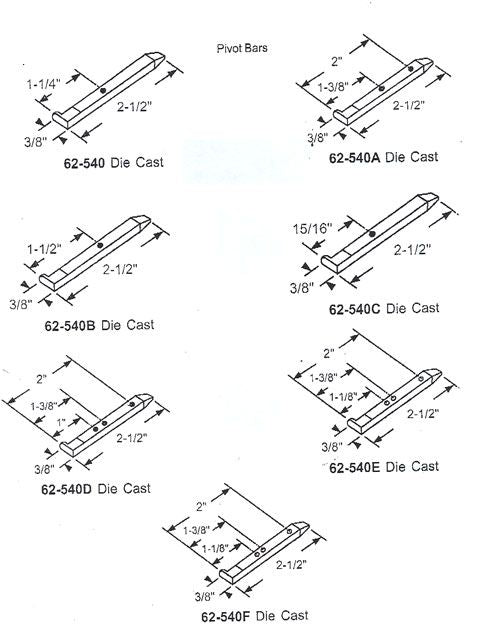

Note: There are 7 of these that look the same with different screw hole positions.

Priced and sold each.
This product is similar to or the same as the following part numbers in these brands:<br/>Strybuc Industries: 62-540B<br/>
