Pivot lock Brake Shoe Assembly, Heavy Duty Window Balance

Part Number: 535001 Price: $8.95

Brake Shoe Assembly for Heavy Duty Aluminum Windows used primarily in Commercial  buildings, apartments housing and sometimes residential homes


Window Type: Commercial

Window Series: 2000 Single Hung, 3000 Double Hung

Markings on window Spacer Bar - Thermo Cell (between panes of glass )

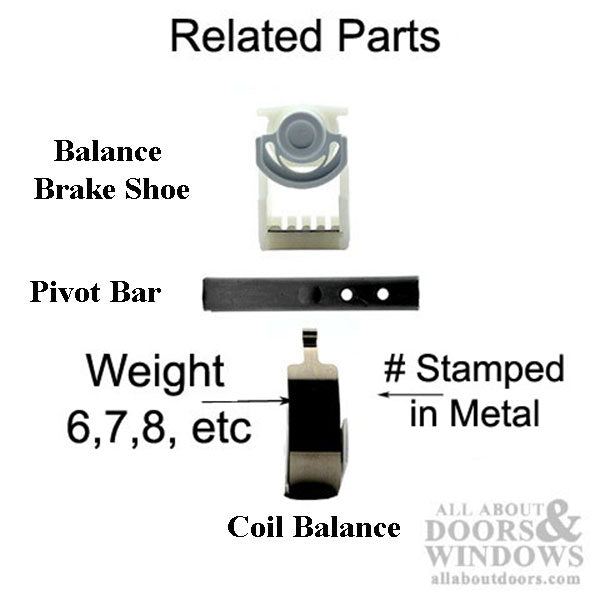

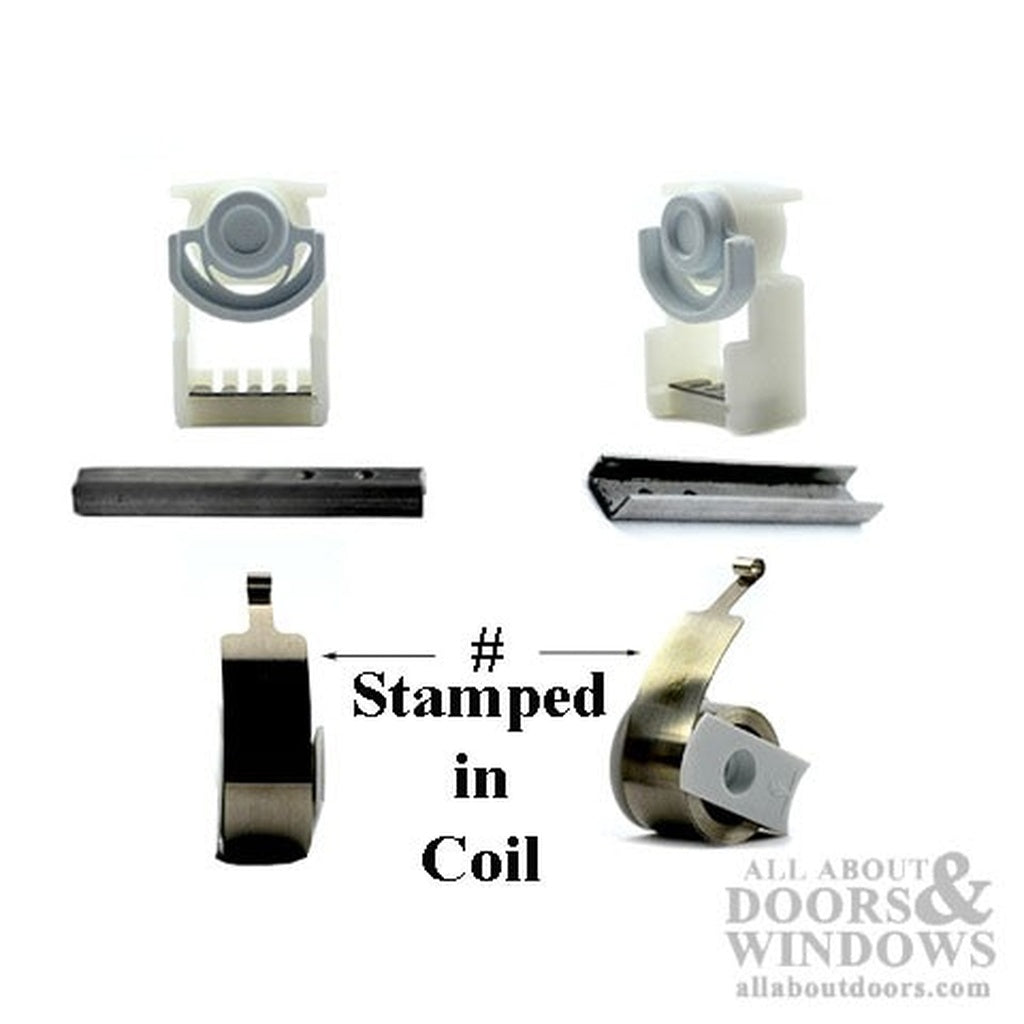

Related Window Assembly Parts:

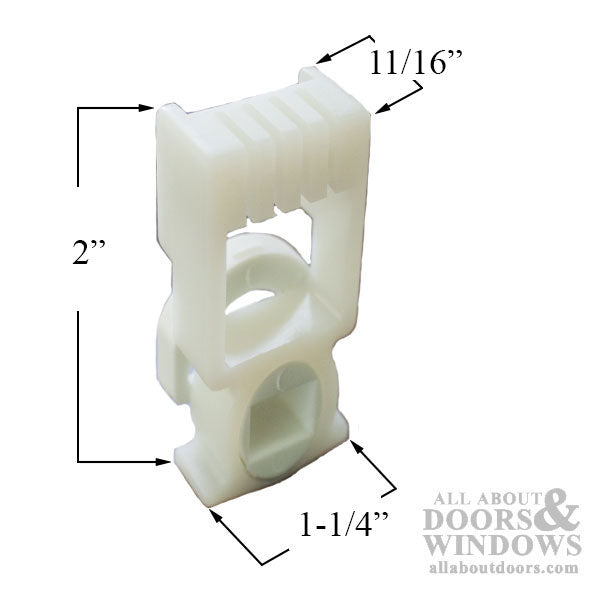

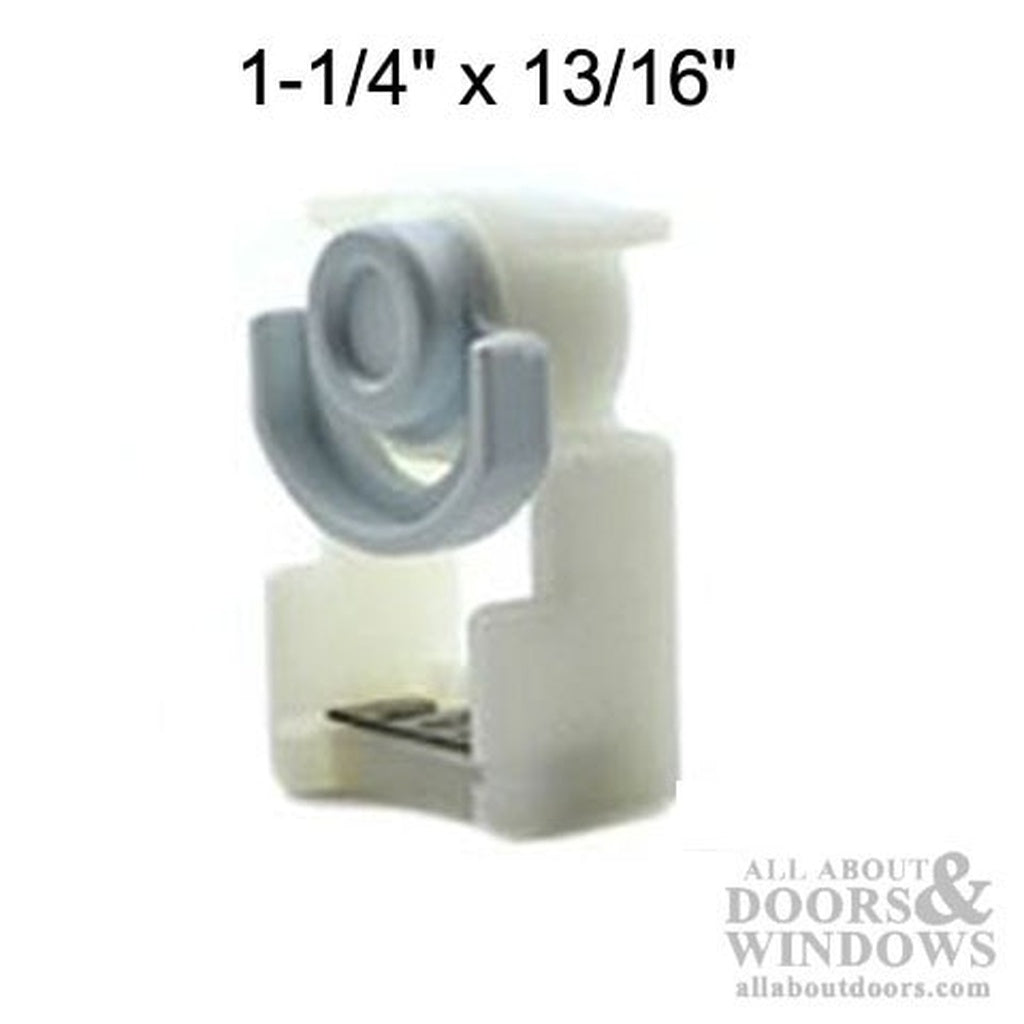

5350001: Brake Shoe: 1-1/4" x 13/16" thick

5350002: 3' Pivot Bar:  1/2" x 5/16" Steel , 2 holes

5350004-09:  Coil Spring Width: 11/16"
