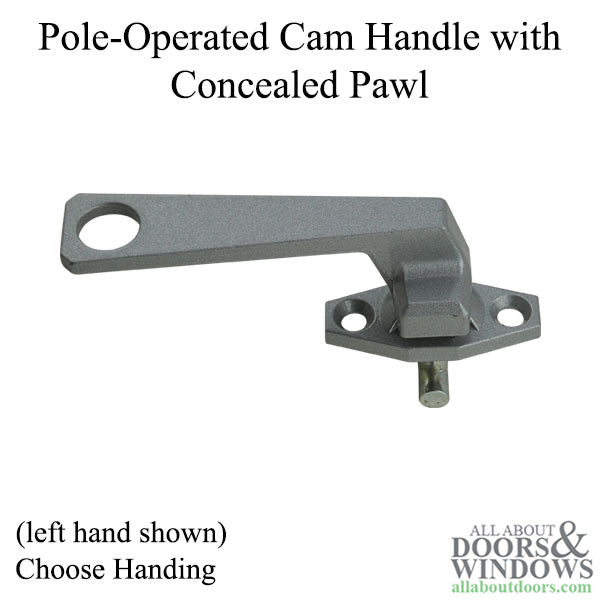

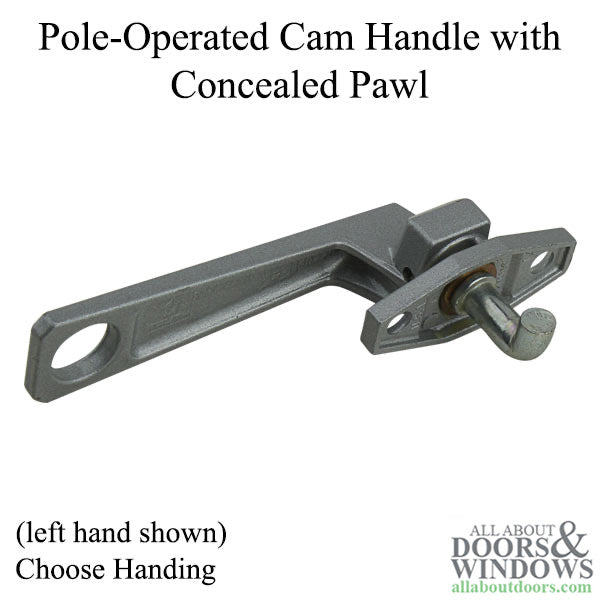

Pole-Operated Cam Handle with 12.7mm Concealed Pawl in aluminum finish - Choose Handing
Part Number: Price: $20.75 to $20.75Truth Hardware's specially designed for use on in-swinging ventilators that are located in elevated areas. A variety of pawl dimensions are available.
Color / Finish : Aluminum
Material : High-pressure die-cast zinc handle and base. Zinc-plated steel pawl.
Handle Length : 3-9/16''
Screw Hole Distance : 1-1/2''
Base: Inline
Markings: Truth, Made in USA

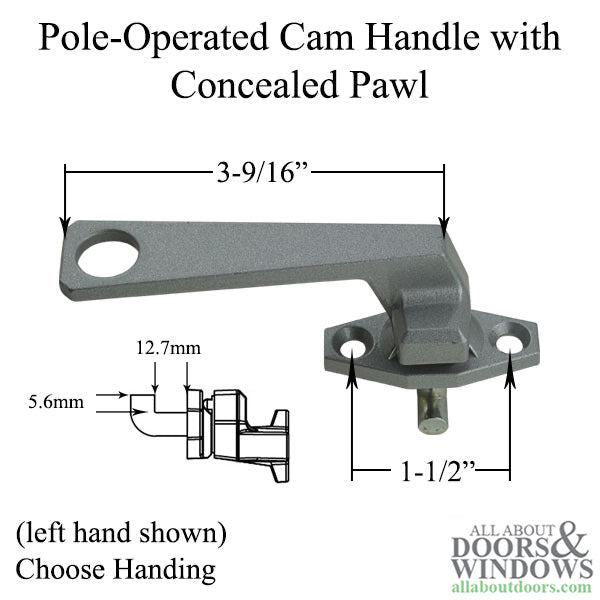

Projection of pawl from gasket to the inside of the vertical curve : 12.7mm (see the 3rd image\'s line drawing).
Specify left or right hand (determined by the direction the handle points when viewed from the inside on an awning window). Handle points in opposite direction when used on a hopper top window.
Related Parts:
555096 - 12.7mm, Right Hand, Chestnut Bronze Handle
555097 - 13.3mm, Left Hand, Trimline, Chestnut Bronze Handle
555098 - 11.1mm, Right Hand, Trimline, Aluminum Handle
Item may be slightly blemished due to bulk storage and time but functions like new.
Special pricing while supplies last.
No returns, refunds, or exchanges.
Priced and sold each.
Color / Finish : Aluminum
Material : High-pressure die-cast zinc handle and base. Zinc-plated steel pawl.
Handle Length : 3-9/16''
Screw Hole Distance : 1-1/2''
Base: Inline
Markings: Truth, Made in USA
Projection of pawl from gasket to the inside of the vertical curve : 12.7mm (see the 3rd image\'s line drawing).
Specify left or right hand (determined by the direction the handle points when viewed from the inside on an awning window). Handle points in opposite direction when used on a hopper top window.
Related Parts:
555096 - 12.7mm, Right Hand, Chestnut Bronze Handle
555097 - 13.3mm, Left Hand, Trimline, Chestnut Bronze Handle
555098 - 11.1mm, Right Hand, Trimline, Aluminum Handle
Item may be slightly blemished due to bulk storage and time but functions like new.
Special pricing while supplies last.
No returns, refunds, or exchanges.
Priced and sold each.
