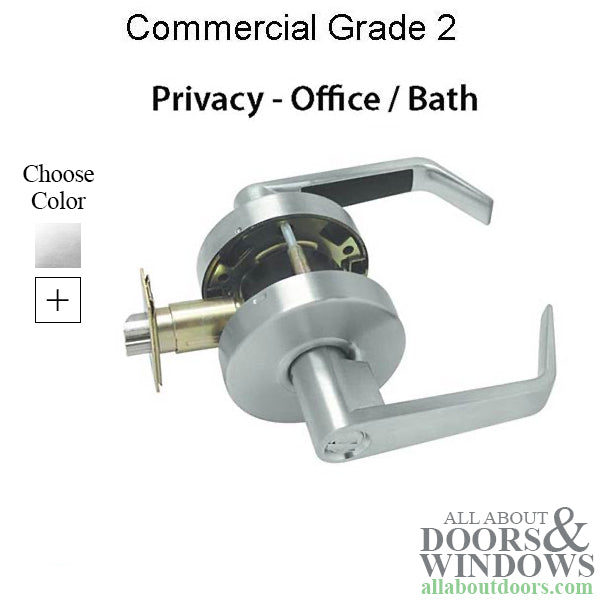

Privacy Lever, Office, Bathroom doors - Grade 2, Standard Commercial Duty
Certification: UL listed ANSI A156.2 Grade 2
Door Thickness: 1-3⁄4 - 2 inch ( 45mm-50mm)
Backset: 23⁄4 inch (70mm)
Cylinder: None
Keying: None
Functions: See below
Latch: 1⁄2" projection Stainless Steel Face:11⁄8” x 21⁄4” (Optional 3 hour UL Rated)
Bore: 2-1⁄8” hole retrofits all cylindrical locksets
Fits 161 Prep doors
Strike: ANSI 1-1⁄4” x 47⁄8” strike
Removable Thru-Bolts
Non-handed / reversible
Warranty: Lifetime mechanical. 10 year finish.
Finishes: US3 Polished Brass, US10B Oil Rubbed Bronze, US26D Brushed Chrome
Note: Some Finishes may be special order, normally 7-14 days
