11/1/2019 6-31661-62-R-1 discontinued, Limited to existing stock, will be replaced with 6-37558-62-R-1 ( little shorter version)

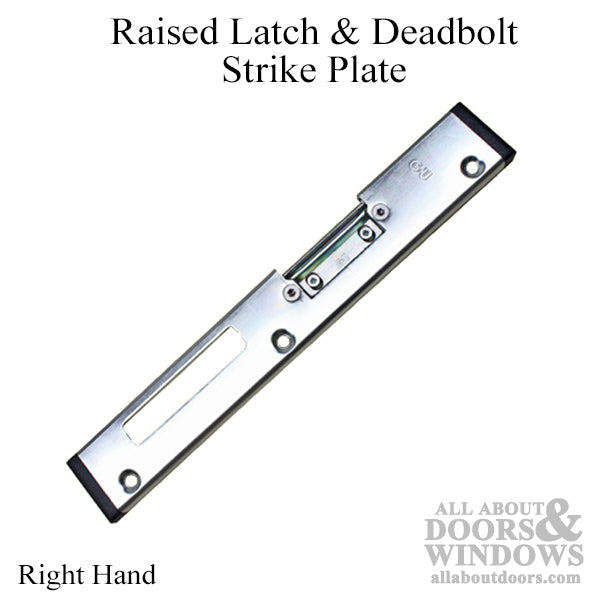

G-U Latch & Deadbolt raised strike plate for Sloped frame
The strike is from a PVC door and the strikes are specific to the extrusion
REHAU has a sloped frame and the strike packer is sloped to match the frame.
G-U / Ferco Latch & Deadbolt raised strike plate is handed
Application: Hinged Door, Normally vinyl
Handed: Yes, Right Hand Door

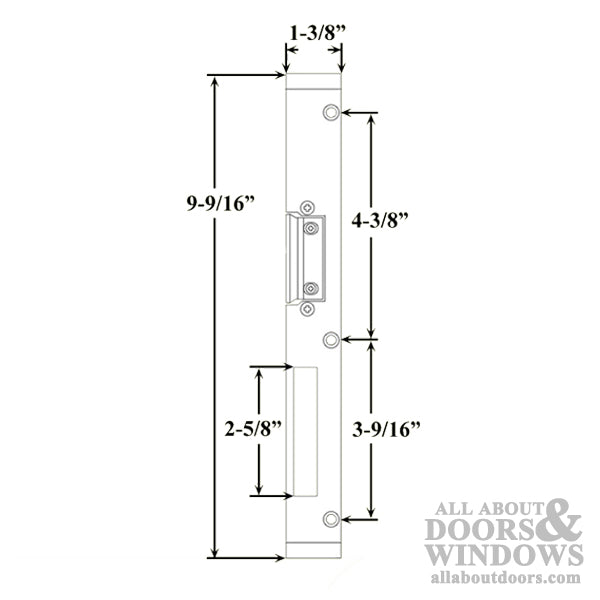

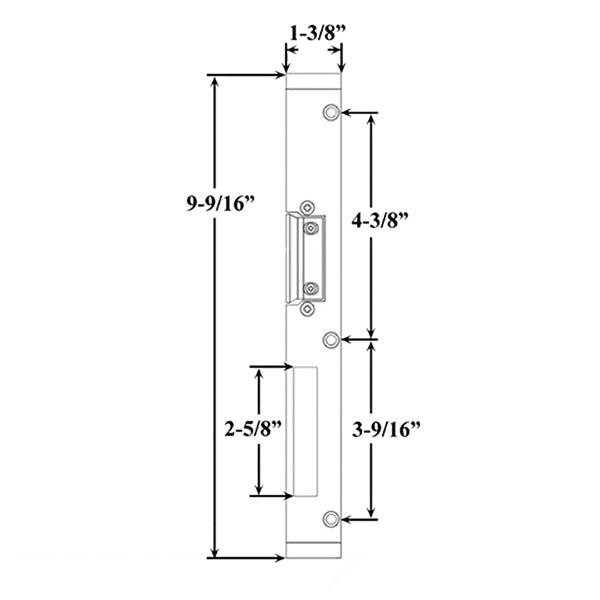

Width: 1-3/8
Length: 9-9/16 inch
Thickness, High Side: 1/2 inch
Thickness, Low side: 7/16 inch
Material: Metal and Black Plastic
Markings on Strike Plate - G-U 9-38941-02, 9-416570 2A, 4663

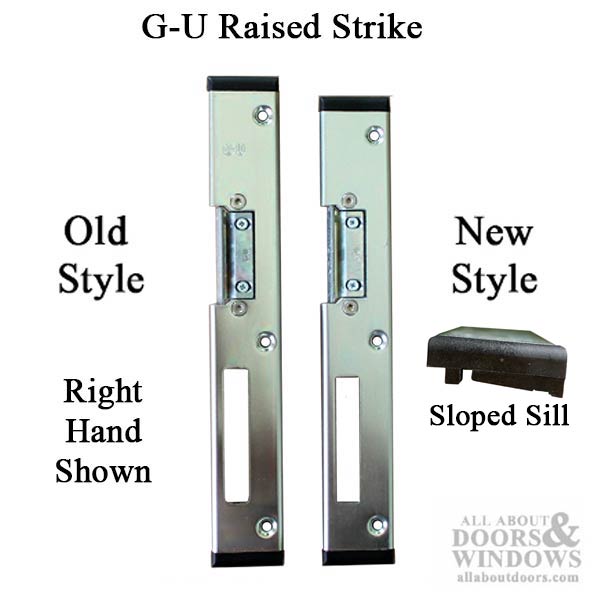

Related Parts: Replacement are a little shorter, see additional images
Left Handed Version: 6-37558-62-L-1
Right Handed Version: 6-37558-62-R-1
