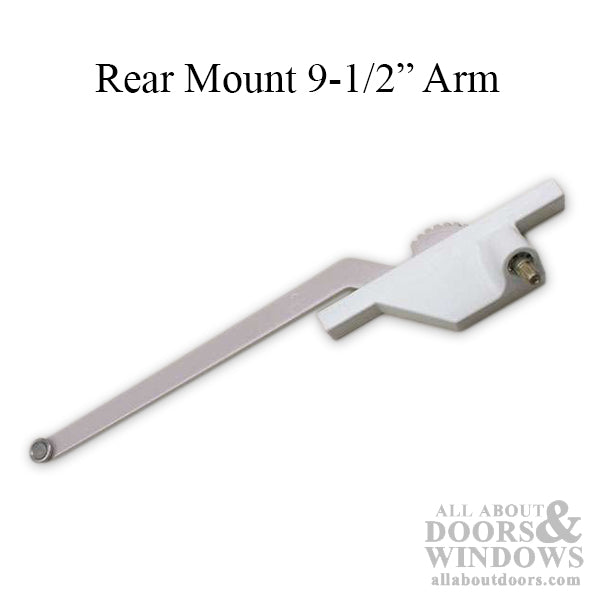

Rear Mount Casement Operator, Truth Single arm

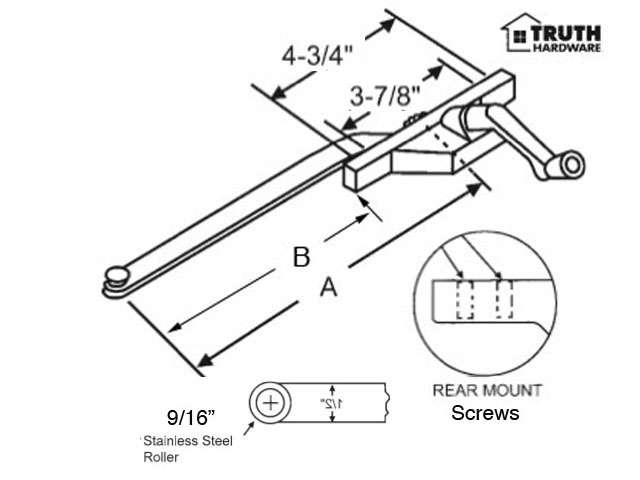

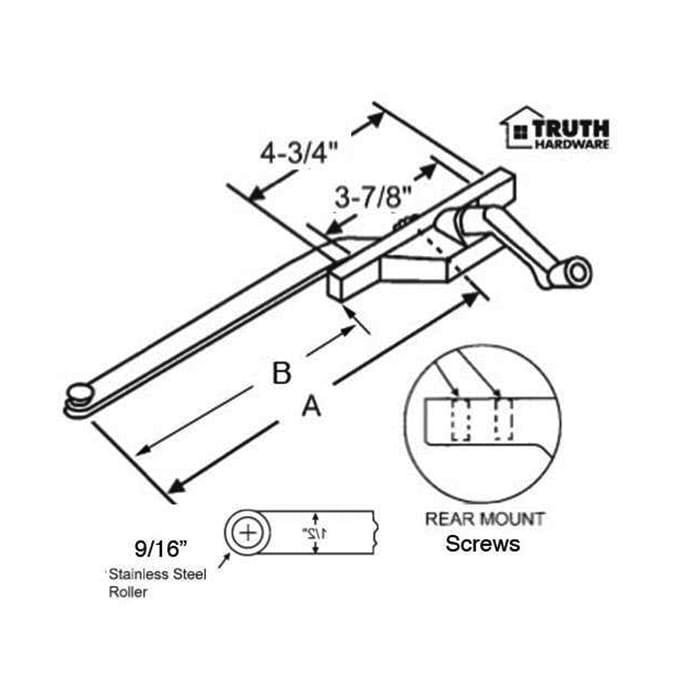

Measurement A: Arm Length: 9-1/2 inch (A)
Measurement B: Housing to center of button: 6-11/16 (B)
Metal Button: 9/16 diameter; Stainless Steel
Double Mounting Screw Holes: 3-7/8 and 4-3/4 spacing

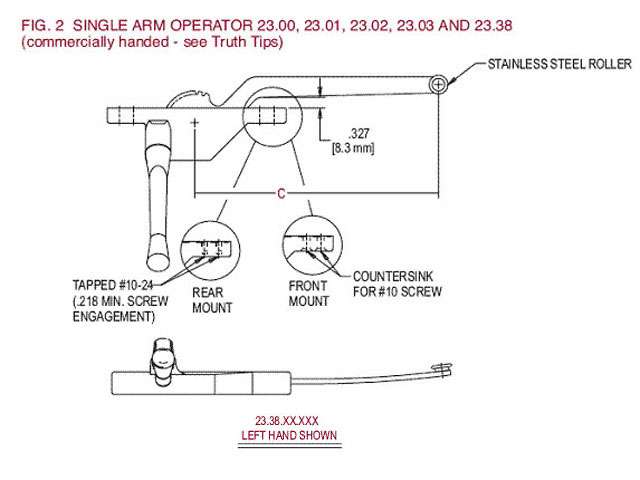

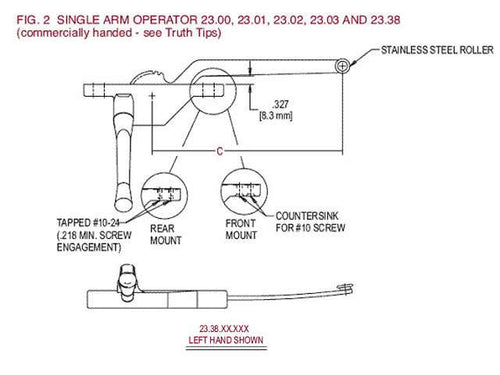

Thread tapped for # 10-24 screw.
Markings: number 40049 stamped on underside of arm
Color Options:
White
Chestnut Bronze
Handing: Right Hand as shown
