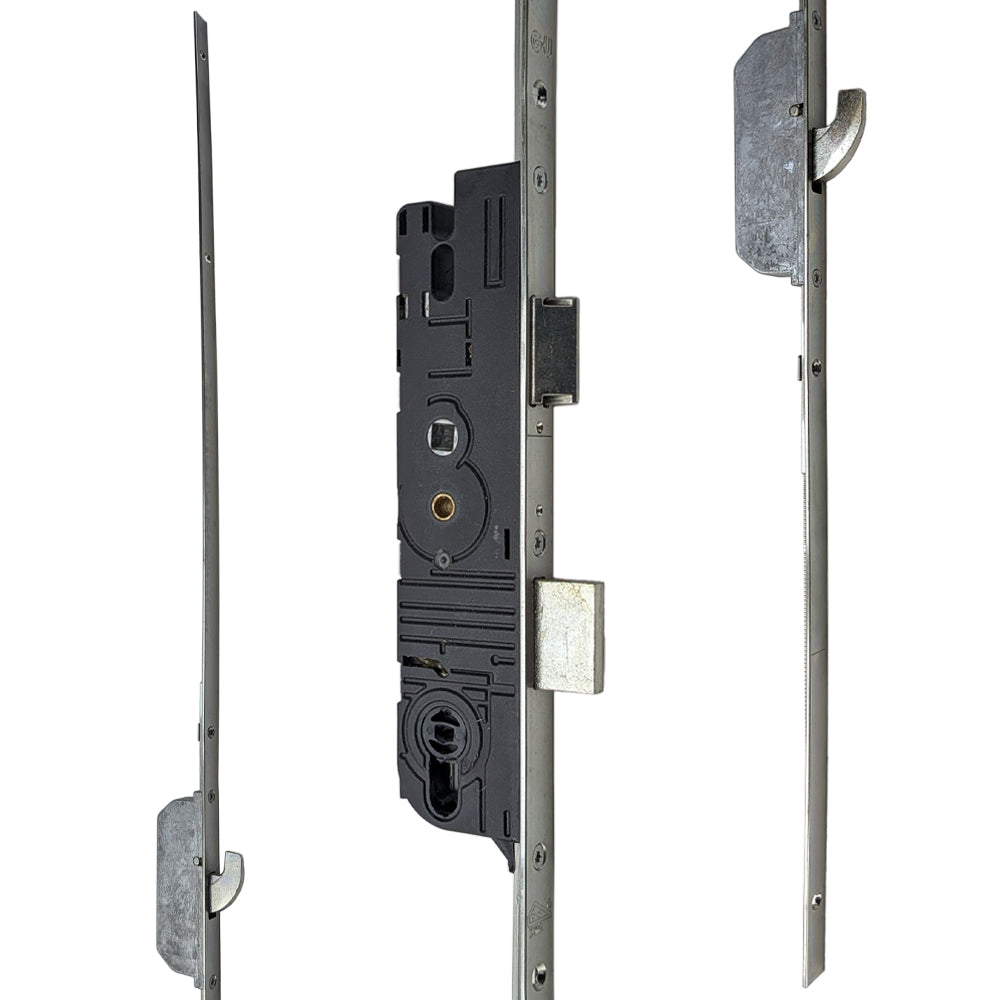

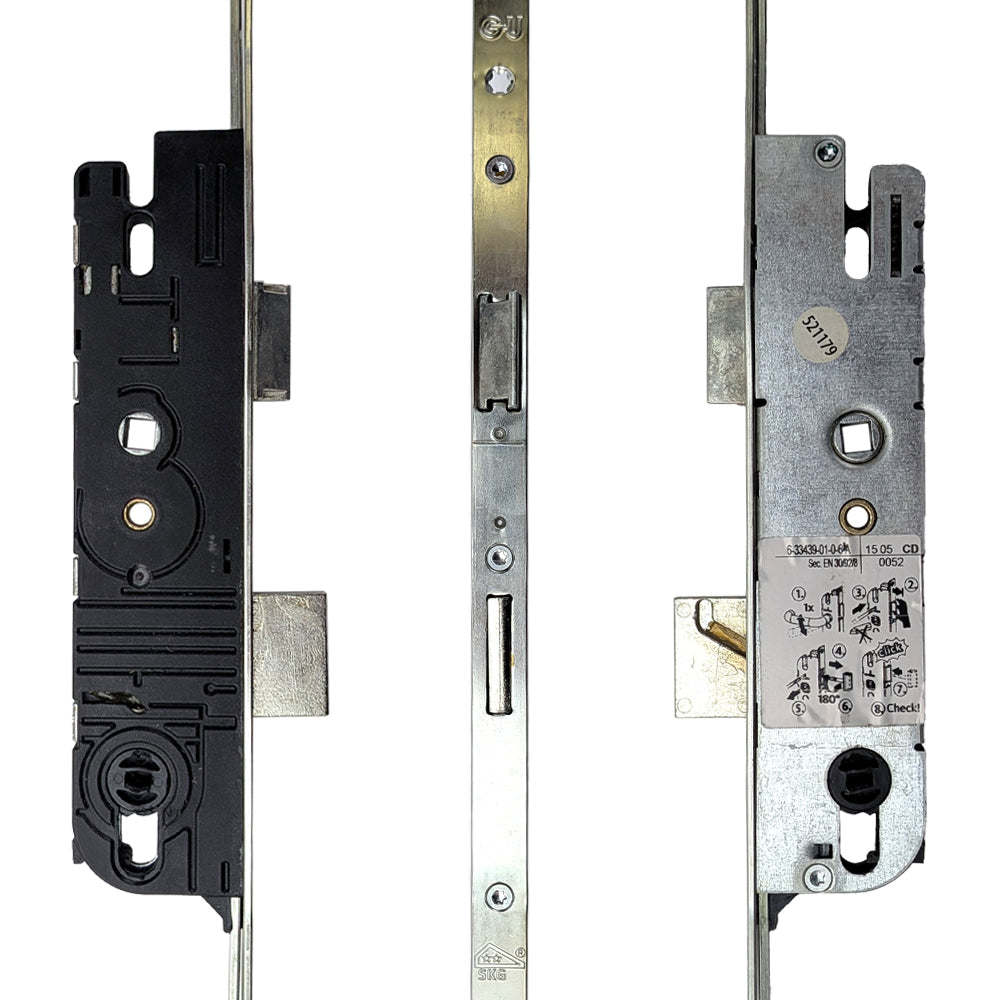

G-U Rhino Multipoint Hook Lock

3 to 5 Point Lock with Latch and Silver Finish

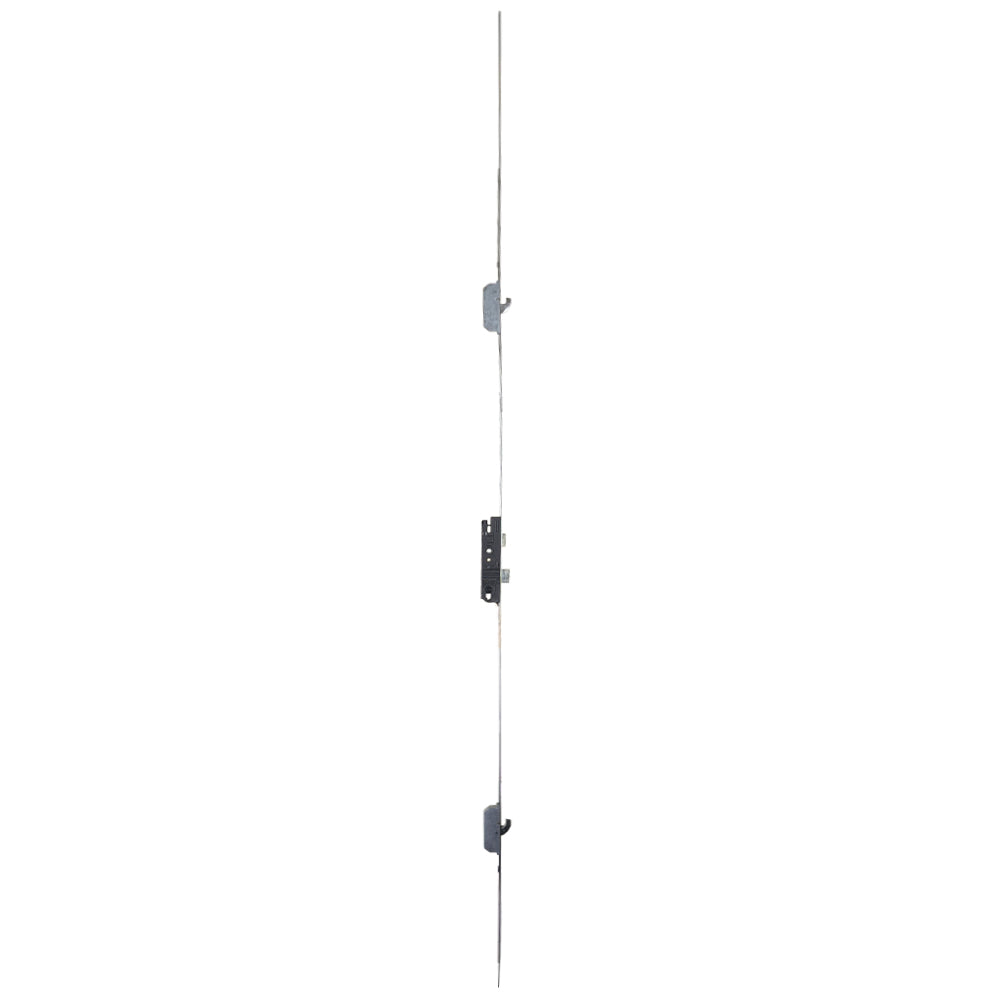

Features three locking points with deadbolt and two hooks, extensible to five locking points with the optional addition of top and bottom shootbolts for added security and prevention of door warp.

• Series: Rhino
• Cylinder Type: American
• Locking Function: Deadbolt and upper & lower hooks, capable of adding optional shootbolts at top and bottom
• Backset: 30 mm (1-3/16 inches)
• PZ (Distance from center of cylinder to center of handle): 92 mm (3-5/8 inches)
• Handle Position: Key below handle
• Handle Height: 1050 mm (41-5/16")
• Spindle Size: 8 mm Square
• Hook Positions (Distance from center of handle to center of extended hook):
  • Upper: 570 mm (22-3/8 inches)
  • Lower: 660 mm (26 inches)
• Faceplate Width: 16 mm (5/8 inch)
• Faceplate Finish: Silver Ferguard
