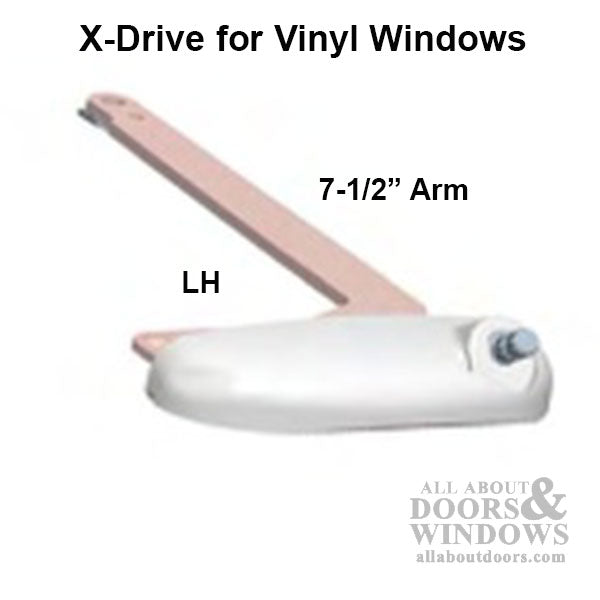

Roto X-Drive Casement window operator with 7-1/2" Single Arm, For Vinyl Window Application.

Brand: Roto Hardware
Application: Vinyl Windows
Arm Length: 7-1/2
Handed: Left
Colors/Finish: White

Note 1:

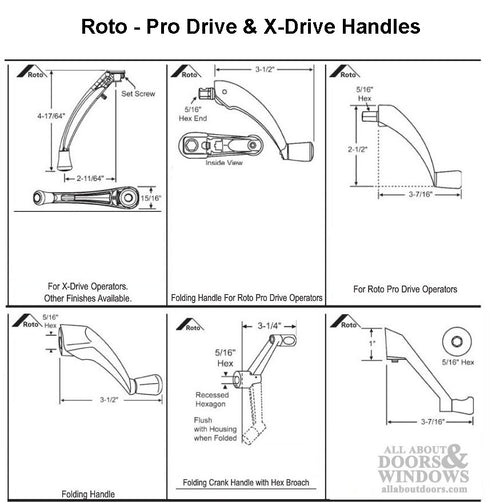

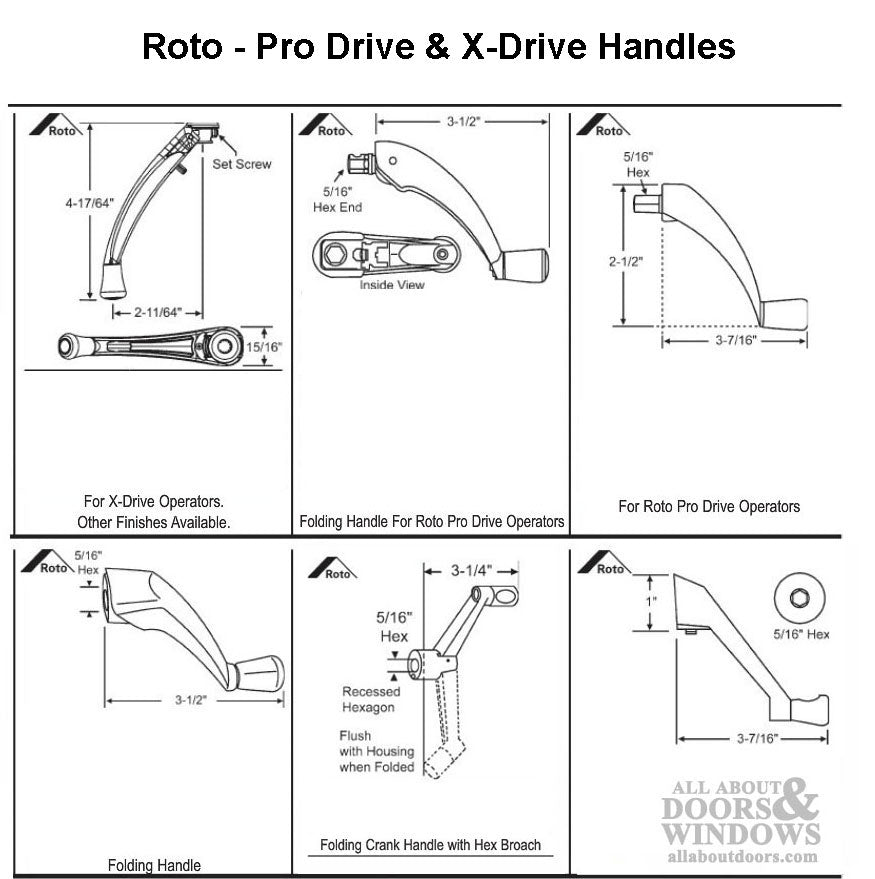

The X-Drive and Pro Drive are the same operator that uses a different crank handle.

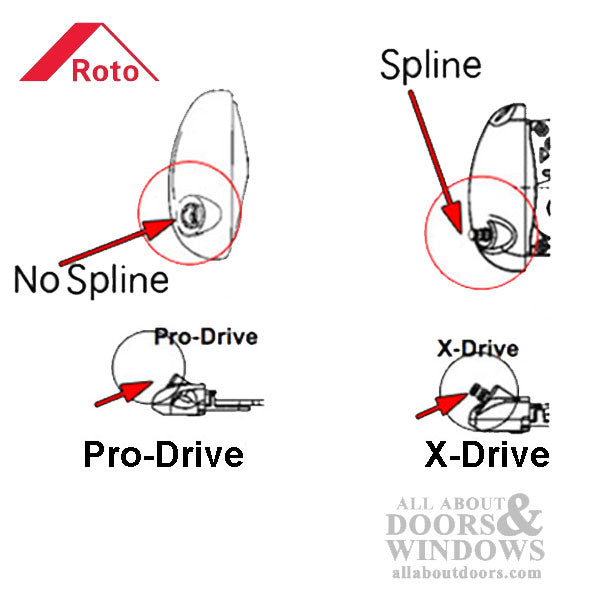

The Pro drive operators have a hex shaped hole in the operator and the handle with a 5/16" hex stud pushes into operator.

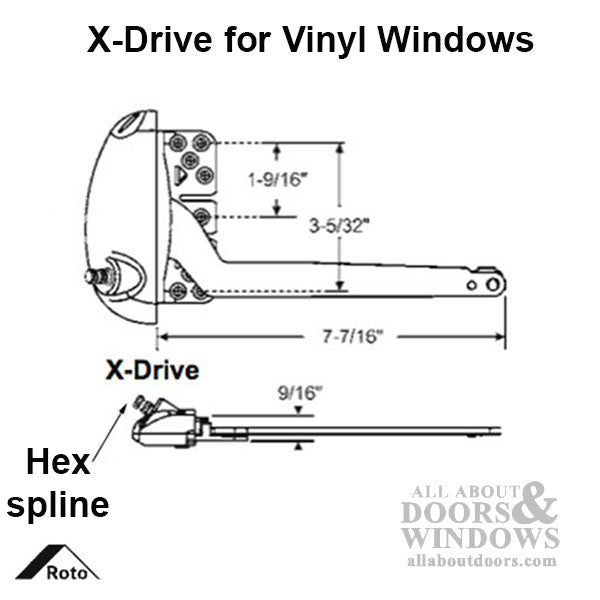

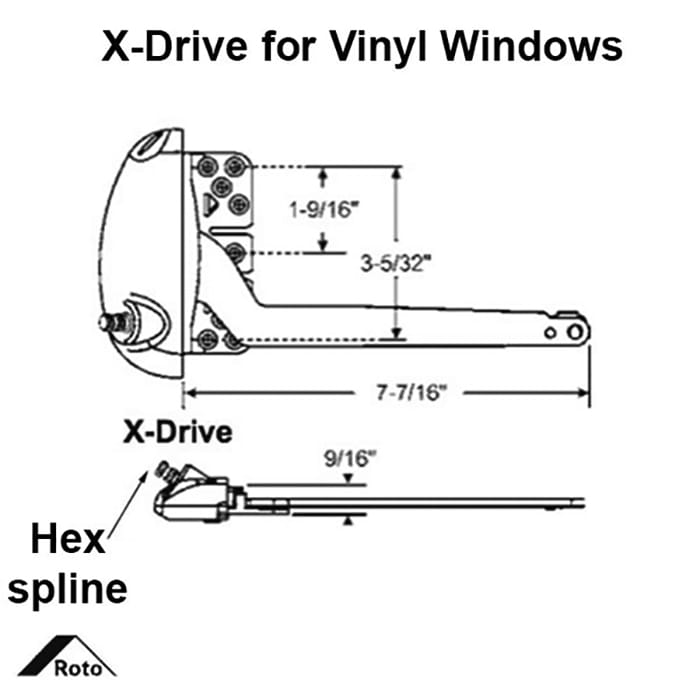

The X-Drive has a 5/16" Hex spline that protrudes from the base and the handle fits onto it.

Note 2: Roto Operators for vinyl windows have a flat base, the wood window operators are notched
