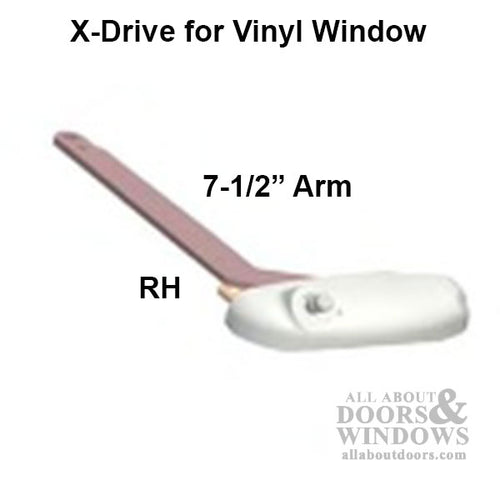

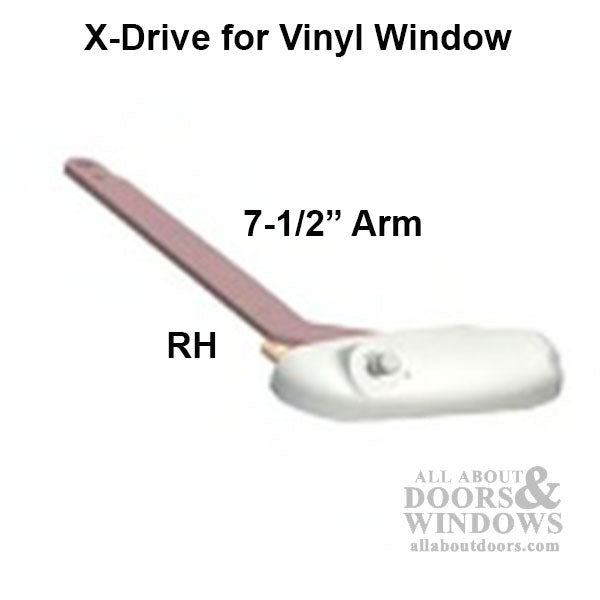

Roto 7-1/2" Single Arm X-Drive, RH For Vinyl Window Application - White
Part Number: Price: $39.95Roto X-Drive qwith 7-1/2" Single Arm, For Vinyl Window Application.
Brand: Roto Hardware

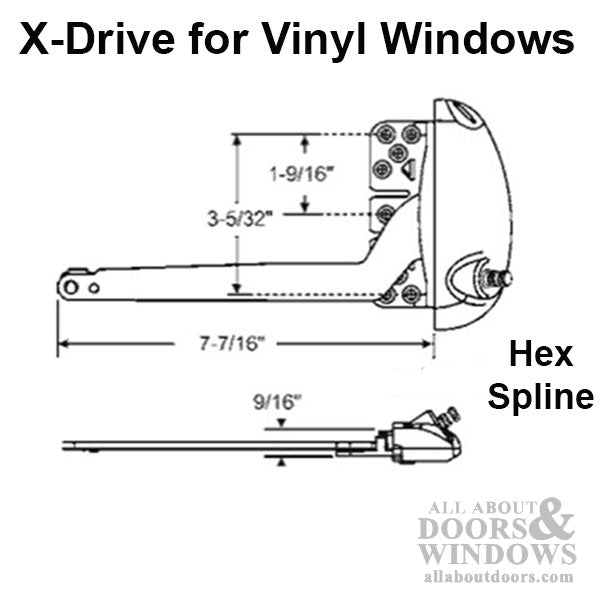

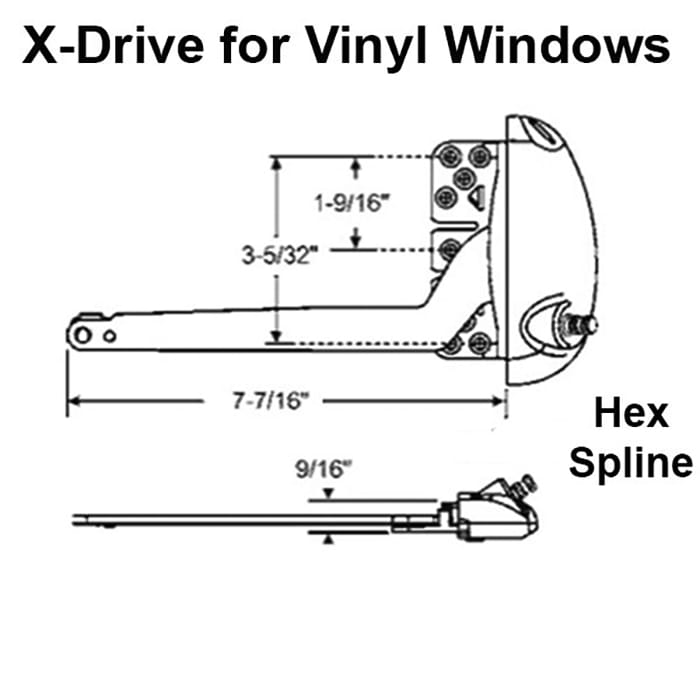

Arm Length: 7-1/2 from housing to middle of arm
Handed: Yes, Left and right handed applications as shown
Colors/Finish: White
Note:

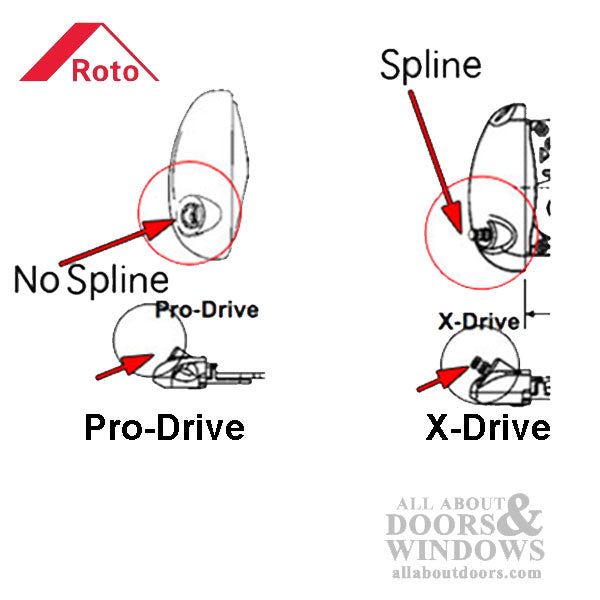

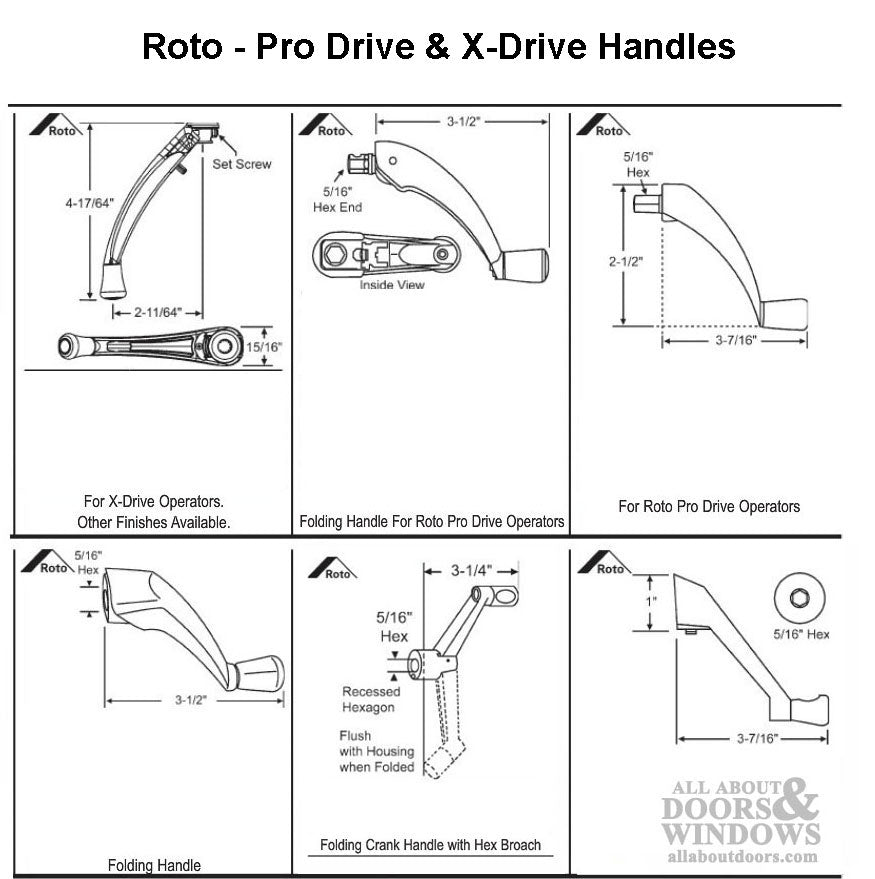

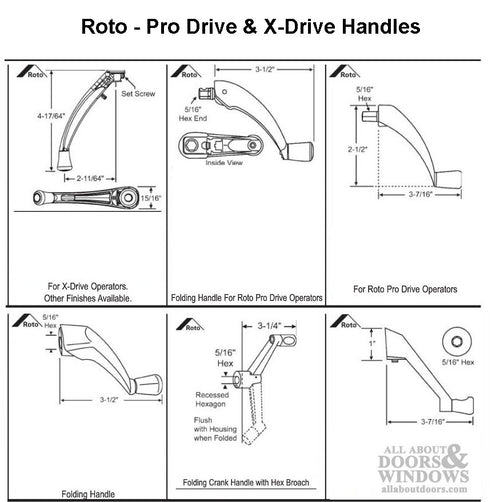

The X-Drive and Pro Drive are the same operator that uses a different crank handle.
The Pro drive operators have a hex shaped hole in the operator and the handle with a 5/16" hex stud pushes into operator.
The X-Drive has a 5/16" Hex spline that protrudes from the base and the handle fits onto it.
Brand: Roto Hardware
Arm Length: 7-1/2 from housing to middle of arm
Handed: Yes, Left and right handed applications as shown
Colors/Finish: White
Note:
The X-Drive and Pro Drive are the same operator that uses a different crank handle.
The Pro drive operators have a hex shaped hole in the operator and the handle with a 5/16" hex stud pushes into operator.
The X-Drive has a 5/16" Hex spline that protrudes from the base and the handle fits onto it.
