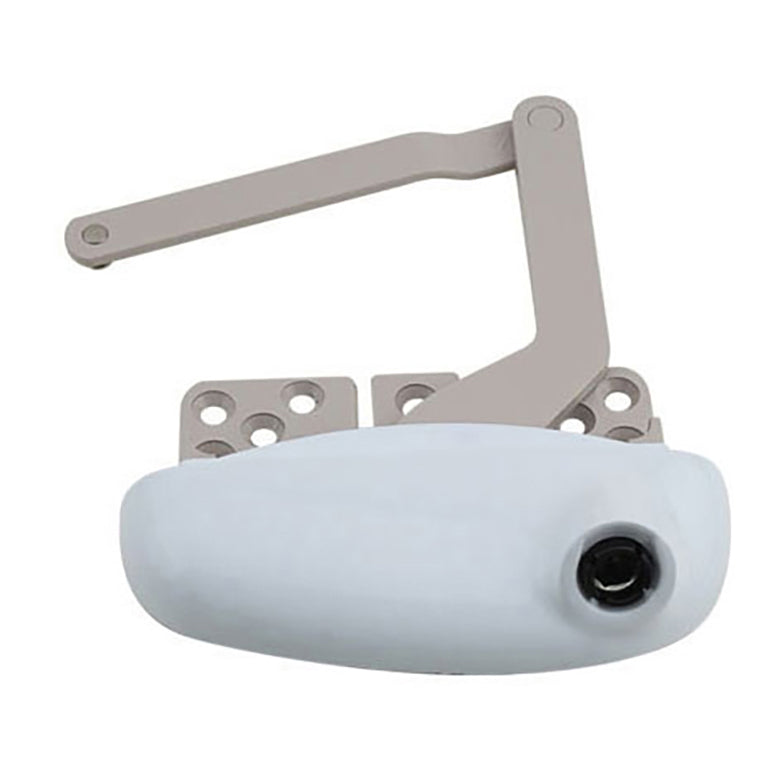

Roto Pro Drive Stainless Steel Split Arm RH Vinyl Window Operator
Use the arrows or swipe left to view all images for this product
Roto Pro Drive Stainless Steel Split Arm RH Vinyl Window Operator
Part Number: $19.95Roto Pro Drive (no spline) Split Arm, Pin Down for Vinyl Window Installations
This part has been discontinued and should be replaced with the corresponding Roto X Drive Operator and a new handle:
Right Hand: OP06-7509 - Right Hand X-Drive Operator for Vinyl Windows with Pin Down, Link Offset Up
Left Hand: OP06-7508 - Left Hand X-Drive Operator for Vinyl Windows with Pin Down, Link Offset Up
Please note, these operators will only replace yours directly if you have a vinyl window and your original operator had the pin down and link offset up
Brand: Roto Hardware
Markings: OP06-7515-08

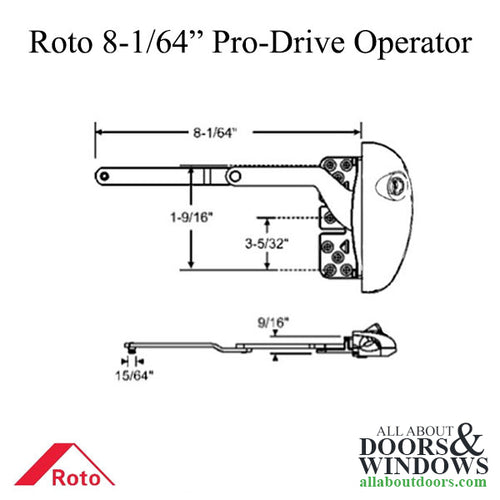

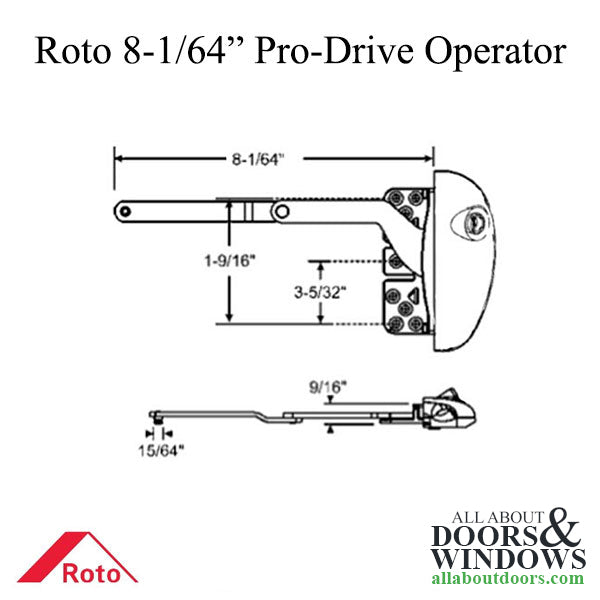

Arm Length: 8-1/64" from housing to middle of arm
Pin Position: Down
Link Offset: UP
Stack: 9/16 vinyl windows (11/16 wood windows)
Handed: Yes, Right Handed as Shown
Note:
The discontinued Pro Drive should be replaced with the X-Drive Operator

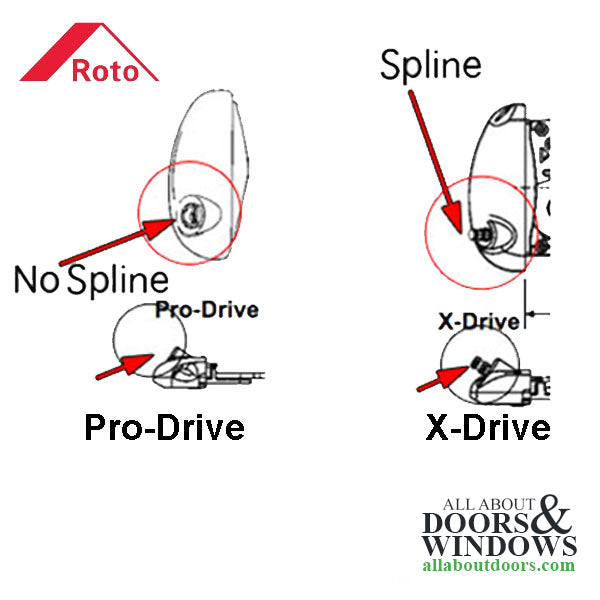

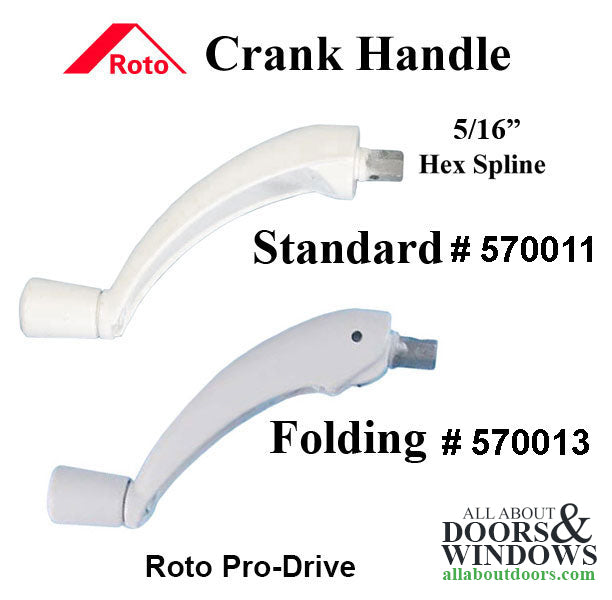

The X-Drive and Pro Drive are the same operator that use different crank handlesThe Pro drive operators have a hex shaped hole in the operator, the handle has a 5/16" hex stud attached that pushes into operator housing.
The X-Drive has a 5/16" Hex spline that protrudes from the base and the handle fits onto it
This part has been discontinued and should be replaced with the corresponding Roto X Drive Operator and a new handle:
Right Hand: OP06-7509 - Right Hand X-Drive Operator for Vinyl Windows with Pin Down, Link Offset Up
Left Hand: OP06-7508 - Left Hand X-Drive Operator for Vinyl Windows with Pin Down, Link Offset Up
Please note, these operators will only replace yours directly if you have a vinyl window and your original operator had the pin down and link offset up
Brand: Roto Hardware
Markings: OP06-7515-08
Arm Length: 8-1/64" from housing to middle of arm
Pin Position: Down
Link Offset: UP
Stack: 9/16 vinyl windows (11/16 wood windows)
Handed: Yes, Right Handed as Shown
Note:
The discontinued Pro Drive should be replaced with the X-Drive Operator
The X-Drive and Pro Drive are the same operator that use different crank handlesThe Pro drive operators have a hex shaped hole in the operator, the handle has a 5/16" hex stud attached that pushes into operator housing.
The X-Drive has a 5/16" Hex spline that protrudes from the base and the handle fits onto it
Roto Pro Drive, Split Arm, Pin Down, Vinyl Window, Right Hand, Corrosion Resistant Steel (CRS)
OP05-7509-00 = G2 White
OP05-7509-08 = G1 White
OP05-7509-03 = Blue White
OP05-7509-26 = Almond
OP05-7509-38 = Almond MK
OP05-7509-06 = Dark Bronze
OP05-7509-04 = Earth Brown
OP05-7509-57 = Cameo
OP05-7511-57 Stainless Steel - Cameo
OP05-7511-58 Stainless Steel - Tan
942420 Weather Shield Cameo
942422 Weather Shield Tan
Strybuc 36-525DBR
Strybuc 36-525BEW
Strybuc 36-525EB
Strybuc 36-52ORBZ
