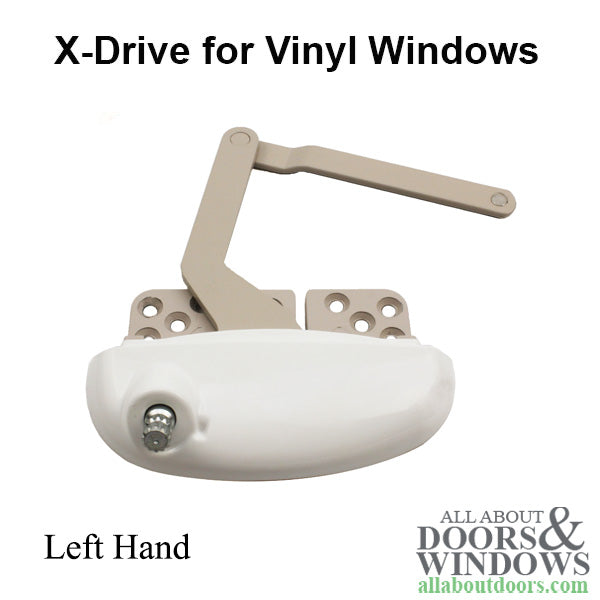

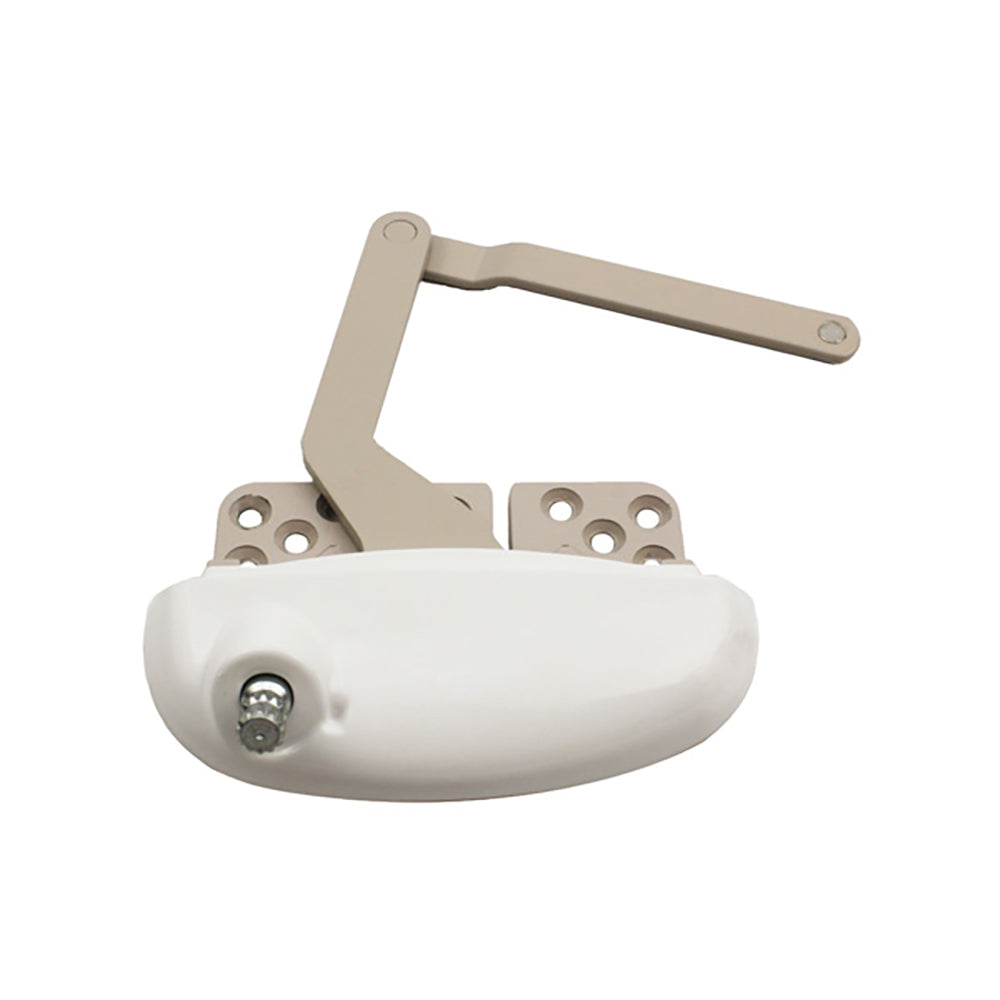

Roto 8-1/64" Split Arm, X-Drive, LH Vinyl Window Application

Part Number: OP06-7512-WG1
COLOR: - Cameo
Please note, this product has been discontinued.

Roto X Drive Split Arm for Vinyl Window Application, 9/16 Thin base



Application: Vinyl Windows

Brand: Roto Hardware


Base: 1/8 inch Thin base, 9/16 Overall housing thickness

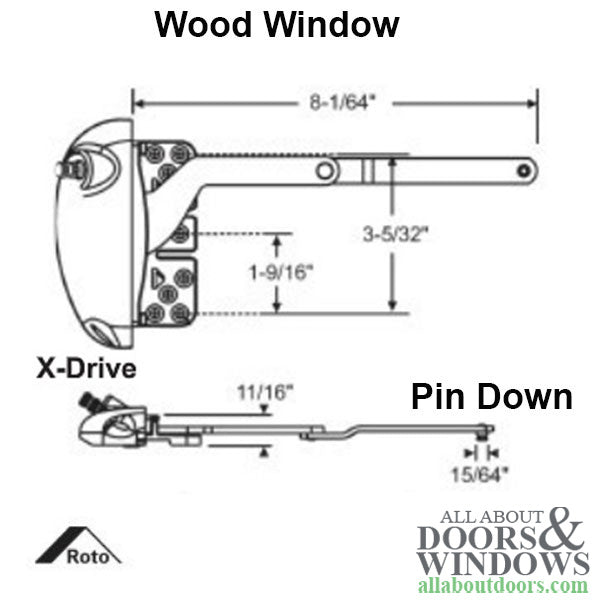

Arm Length: 8-1/64" from housing to middle of arm

Pin Position: DOWN

Link Offset: Yes

Handed: Yes, Left and right hand as shown

Colors/Finish: G1 Off White

Optional Colors: White G2, Off White G1, Blue White, Almond



Roto Operator Note:

The X-Drive and Pro Drive are the same operator that uses a different crank handle.

The Pro drive operators have a hex shaped hole in the operator and the handle with a 5/16" hex stud pushes into operator.

The X-Drive has a 5/16" Hex spline that protrudes from the base and the handle fits onto it.
