Roto 8-1/64" Split Arm, X-Drive, LH Wood Window Application - White
Part Number: 572039 Price: $49.95Roto X-Drive Split Arm operator for Wood window application
Brand: Roto Hardware

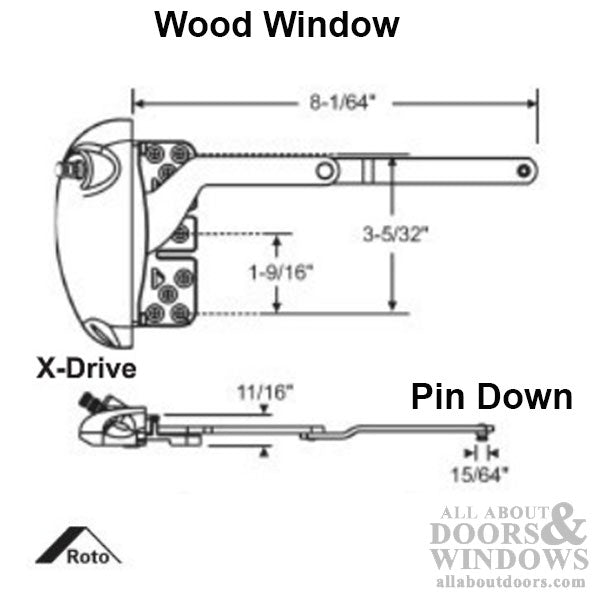

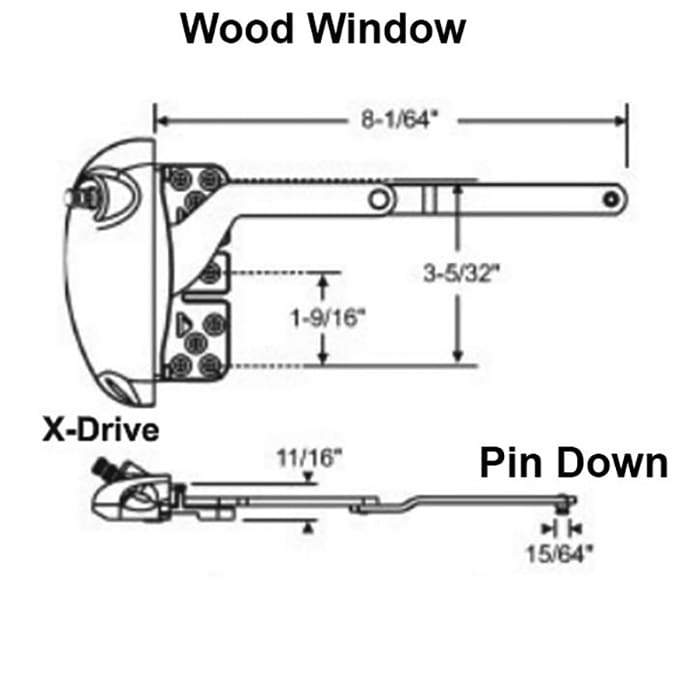

Arm Length: 8-1/64" from housing to middle of arm

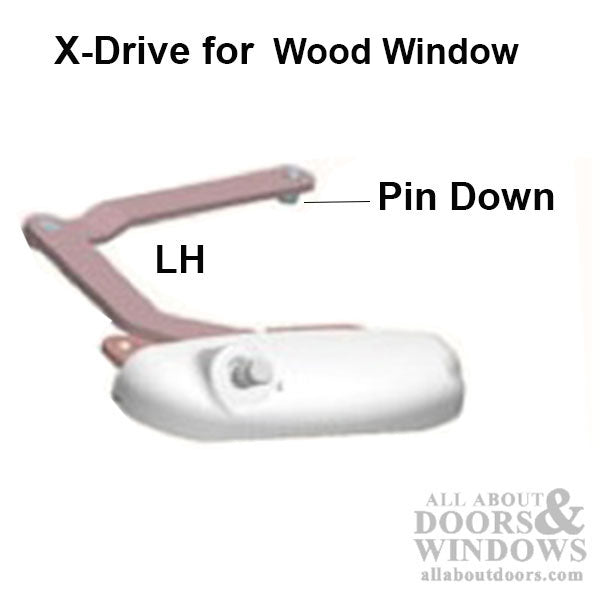

Stud Post / Pin Position: Down
Link Offset: UP
Stack: 11/16" (Either 9/16 or 11/16")
Application: Wood Windows

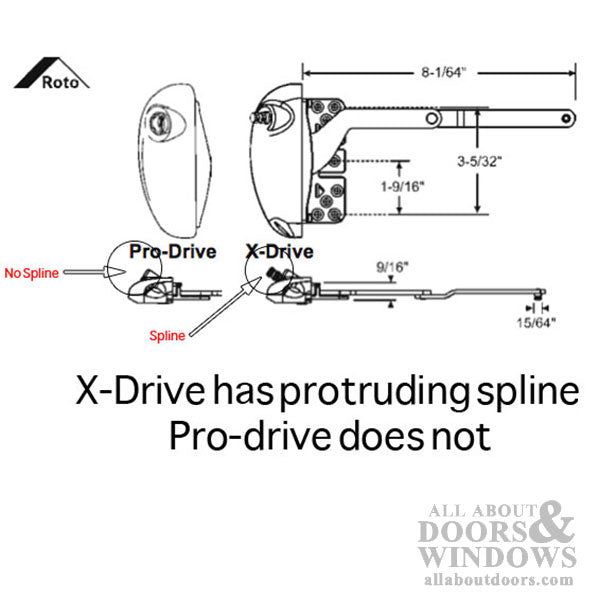

Crank Handle Drive: X-Drive with protruding spline
Handed: Yes, Left and right handed, as shown
Colors / Finish: White
Brand: Roto Hardware
Arm Length: 8-1/64" from housing to middle of arm
Stud Post / Pin Position: Down
Link Offset: UP
Stack: 11/16" (Either 9/16 or 11/16")
Application: Wood Windows
Crank Handle Drive: X-Drive with protruding spline
Handed: Yes, Left and right handed, as shown
Colors / Finish: White
