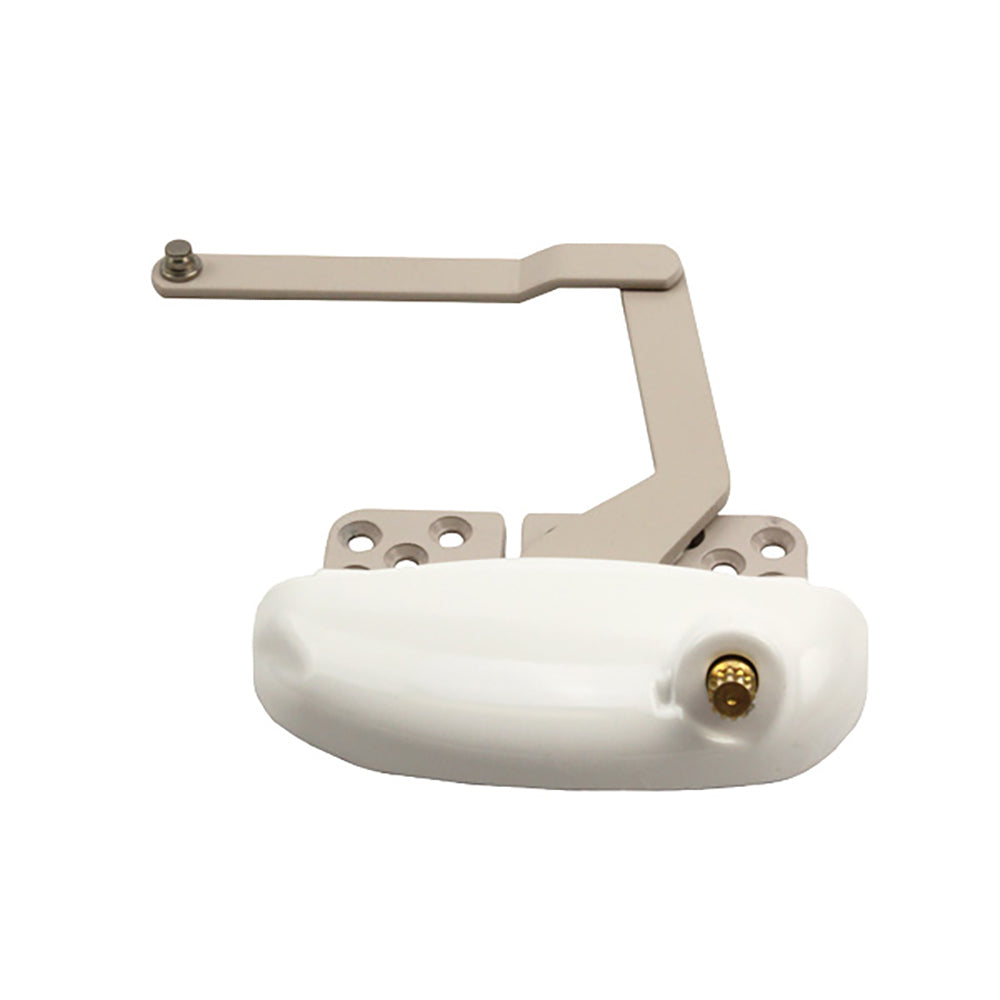

Roto X Drive Split Arm for Vinyl Window Application.
Brand: Roto Hardware
Application: Vinyl Windows

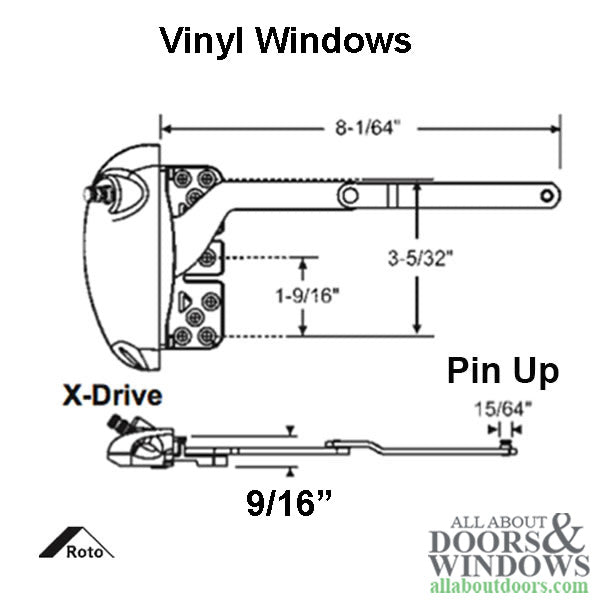

Arm Length: 8-1/64" from housing to middle of arm
Pin Position: UP
Link Offset: Yes
Handed: Right Handed
Note:

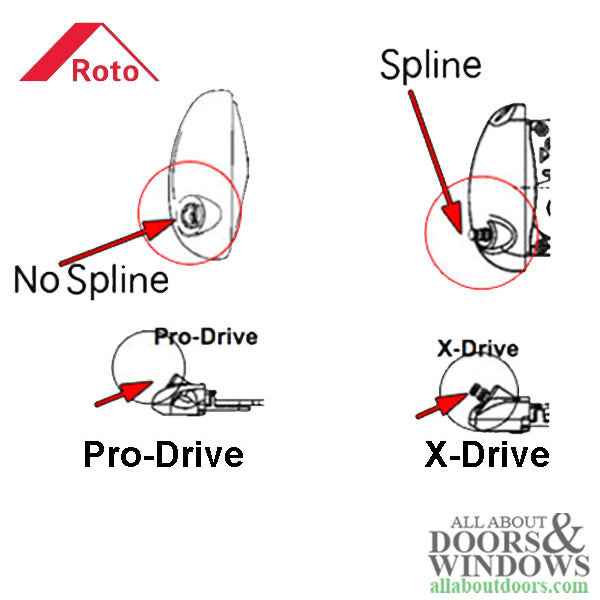

The X-Drive and Pro Drive are the same operator that uses a different crank handle.
The Pro drive operators have a hex shaped hole in the operator and the handle with a 5/16" hex stud pushes into operator.
The X-Drive has a 5/16" Hex spline that protrudes from the base and the handle fits onto it.
Brand: Roto Hardware
Application: Vinyl Windows
Arm Length: 8-1/64" from housing to middle of arm
Pin Position: UP
Link Offset: Yes
Handed: Right Handed
Note:
The X-Drive and Pro Drive are the same operator that uses a different crank handle.
The Pro drive operators have a hex shaped hole in the operator and the handle with a 5/16" hex stud pushes into operator.
The X-Drive has a 5/16" Hex spline that protrudes from the base and the handle fits onto it.
