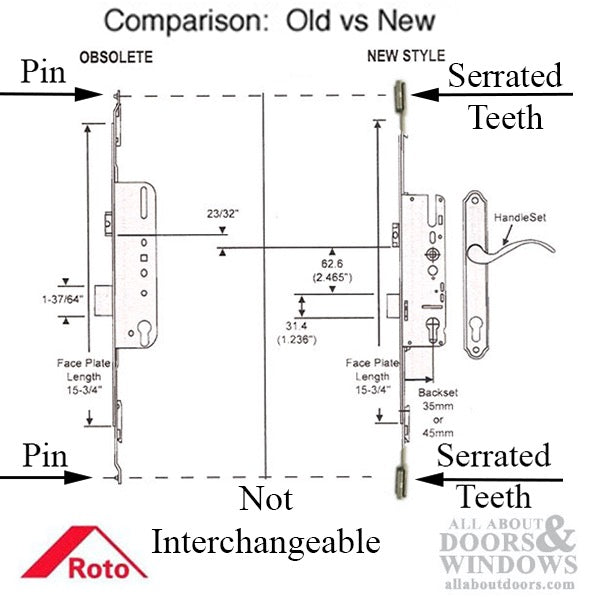

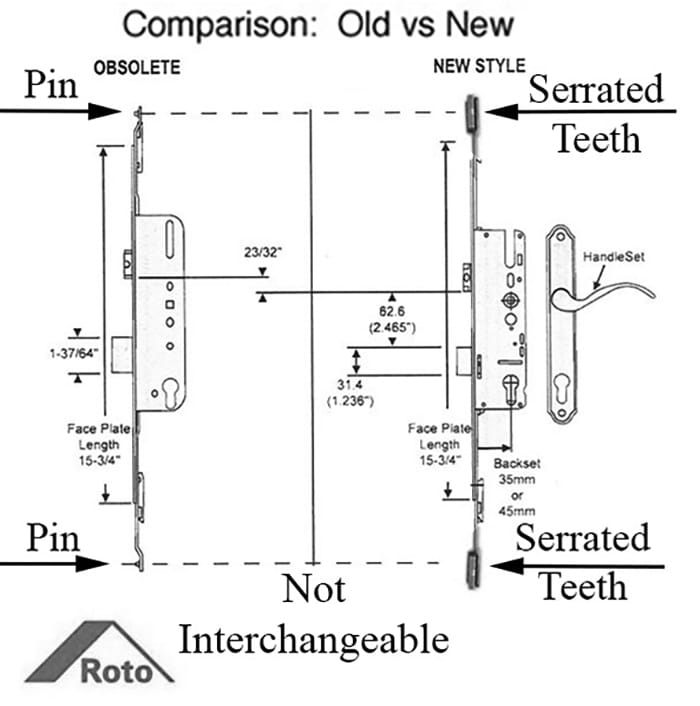

Roto Multipoint Lock gear Assembly with 15-3/4 face plate and studs for Pin Connection to upper and lower assemblies (current style uses serrated teeth). This will NOT replace the old style with the 13-3/8 faceplate used on earlier multipoint locks. The deadbolt is in a new location. about 1/8" lower than the old 13-3/8 style.

This Roto gear lock box works on roller and tongue version locks with Pin Connection. This replaces only the 15-3/4 face plate with Pin connections and will not work with the 13-3/8 model or the 15-3/4 inch model with Serrated teeth connection.

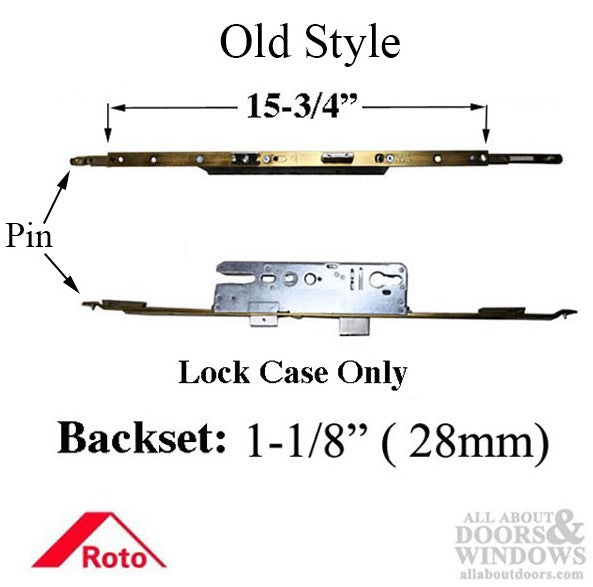

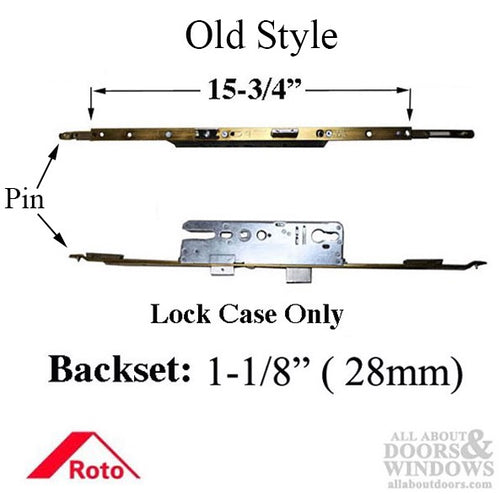

Roto Lock Specifications:
Style: 2nd Generation Gear Box assembly
Backset: 1-1/8 inch (28mm) 1.102
Faceplate Length: 15-3/4 inch (400mm)
Connection Type: Pins

When Retrofitting new lock, the door may need to be notched out 23/32 inch to accept the position of the new style gear box.
Also, the strike plate may need to be lowered or replaced. Modification of 23/32 inch to line up with the latch and dead bolt.

Best Replacement Option: An entire, new stainless steel multipoint lock is available, please call for details.

Priced and sold each.

HOW THIS LOCK WORKS:
To Lock the door, Lift Handle and deadbolt will extend. Turn Key or thumb turn to lock in position. To Unlock the Door, Turn Thumb Turn or Key, and depress the lever to Open.


How to Re hand a Roto Multipoint Lock Gear Box
