Roto Roller Multi-Point Lock 45/92 ; 79" - Discontinued, SEE NOTES
Part Number: 499090099 Price: $0.00Roto Multi-Point lock hardware, Roller Version - Discontinued; Conversion Required.
This Roller Version lock has 1-3/4 inch Backset, 3-5/8 Handle Spacing.
Overall length about 78-5/8 inches,
Handle height 36-1/8 inches,

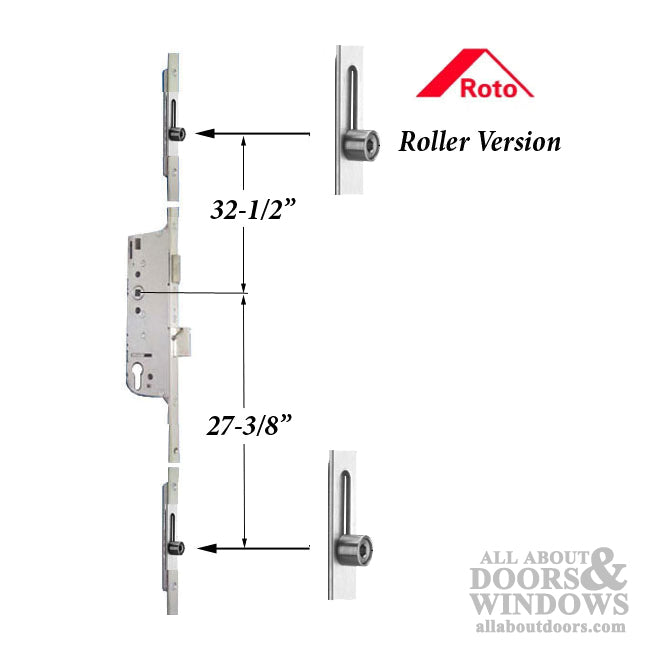

Bottom Roller Position located about 27-3/8 Below handle,
Top Roller Position located about 32-1/2 Above handle.
Please review all pictures - If your lock body looks like the pictures you have an old style - Obsolete. Must be replaced with new style lock body or complete replacement.
NOTE: If Replacing an old style Roto with new style Roto; the Gear Box is 23/32 inches different. It will be necessary to lower the Strike Plate about 3/4 inch to match with the new latch and deadbolt; and the door will need to be notched about 3/4 inch to accommodate the new Multipoint lock body. Remember to measure the backset either 1-3/8 (35mm) or 1-3/4 inch (45mm) when ordering.
Replacement Options:
Option 1 - Complete replacement see # 4990219 (45mm) (Replacement Instructions)
Option 2 - Complete replacement with HOPPE Shootbolt Version
Option 3 - If you are replacing a Roto lock in a Weathershield door, Weathershield recommends replacement with part #4990917
Additional Resources:
Replacing this Lock in a Weather Shield Door
Q&A on Replacing Roller Locks in Weather Shield Doors With Non-Roller Locks
How to reverse the handing (change direction of latch slope) on Roto multipoint lock
General Information on Roto Multipoint Locks
How to Rehand a Roto Multipoint Lock Gear Box
