Discontinued Item - Please Read All Information - Replacement Available

This is a 92-5/8" Roller Version Multipoint Lock made by Roto.
It was used most commonly around 1996. It is no longer available for purchase and must be replaced.

Discontinued Lock Measurements:
Overall Length: 92-5/8 inches
Face Plate Width: 5/8 inch (16mm)
Face Plate Length (at gear box): 13-3/8 inches
Faceplate Color: Painted Gold
Backset: 1-3/4 inch (45mm)
Handle Spacing (PZ): 3-5/8 Inch (92mm)

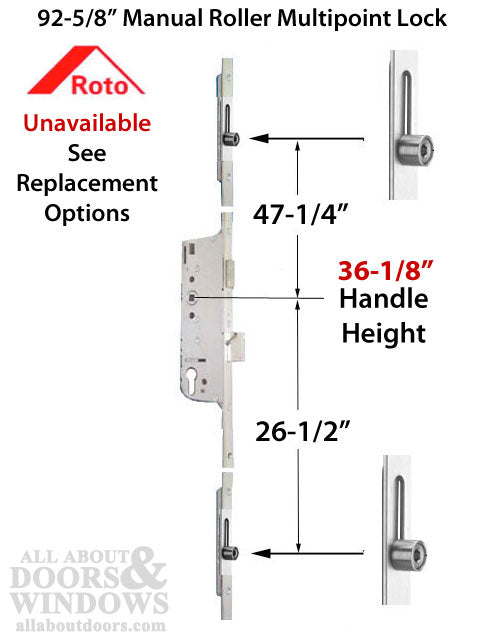

Handle Height: 36-1/8 inches
Bottom Roller Position: 26-9/16 Below handle (down position)
Top Roller Position: 47-5/16 Above handle (down position)
Marking on Lock Body: S 623 A 80
Lock 45/92/8/PZ-25.4 10/96

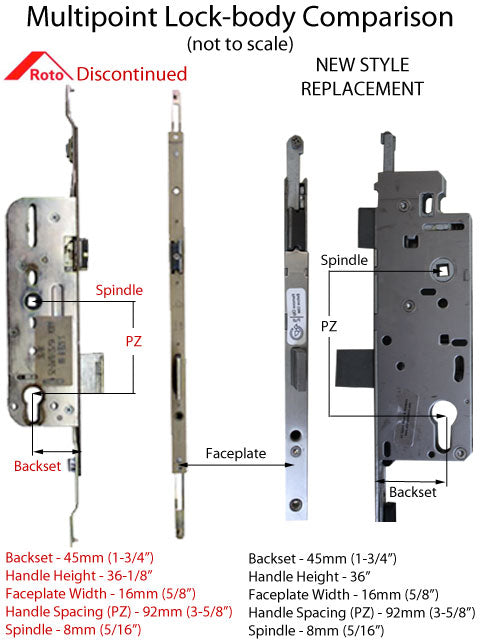

The best replacement for this Discontinued Roto Lock is a Complete Replacement Kit (See Replacement Options)

The second option is much more complicated.
It requires replacing the Old Style Roto Lock Body/Gear only. (See Notes)

NOTES: If Replacing an Old Style Lock Body with the new style; the gear box is 23/32 inches different.

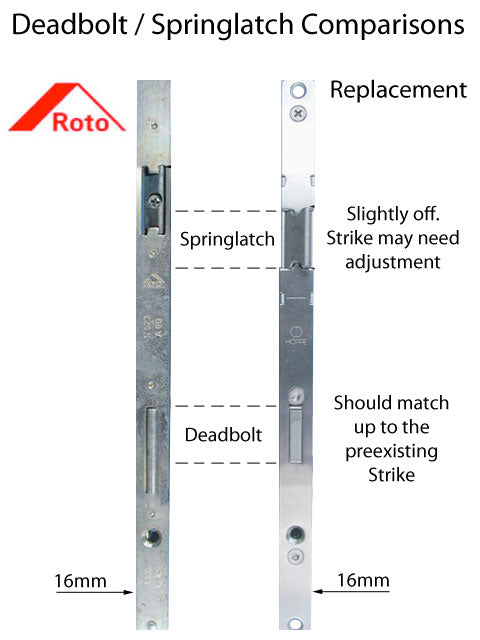

It will be necessary to lower the strike plate about 3/4 inch to match with the new latch and deadbolt.
The door will also need to be notched about 3/4 inch to accommodate the new Multipoint lock body.
This option is available, however NOT recommended.

Replacement Options:
Option 1 - Complete Replacement Kit - 4990220 (45mm) Backset, Tongue Version (Replacement Instructions)
Option 2 - Replace with HOPPE Shootbolt version
