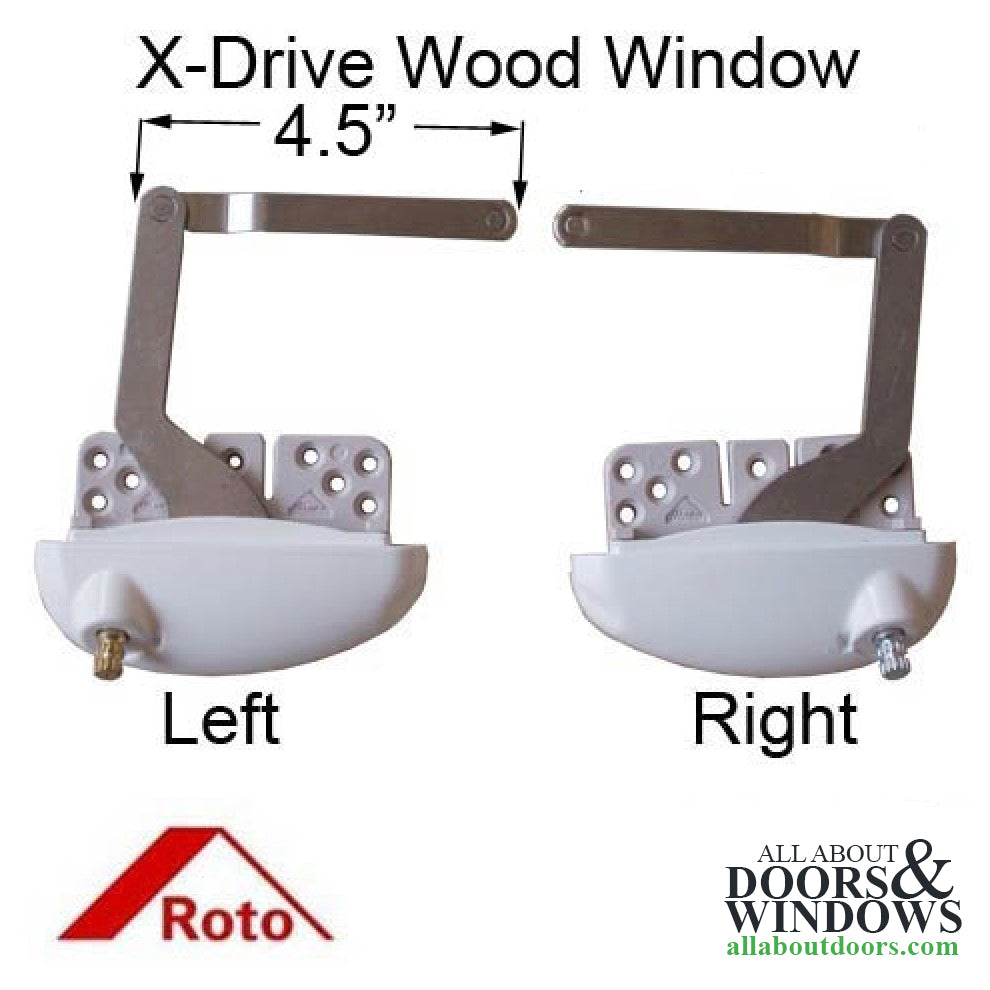

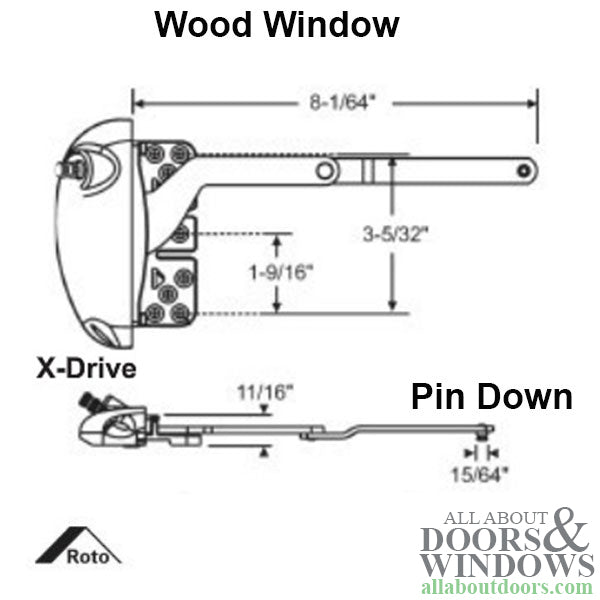

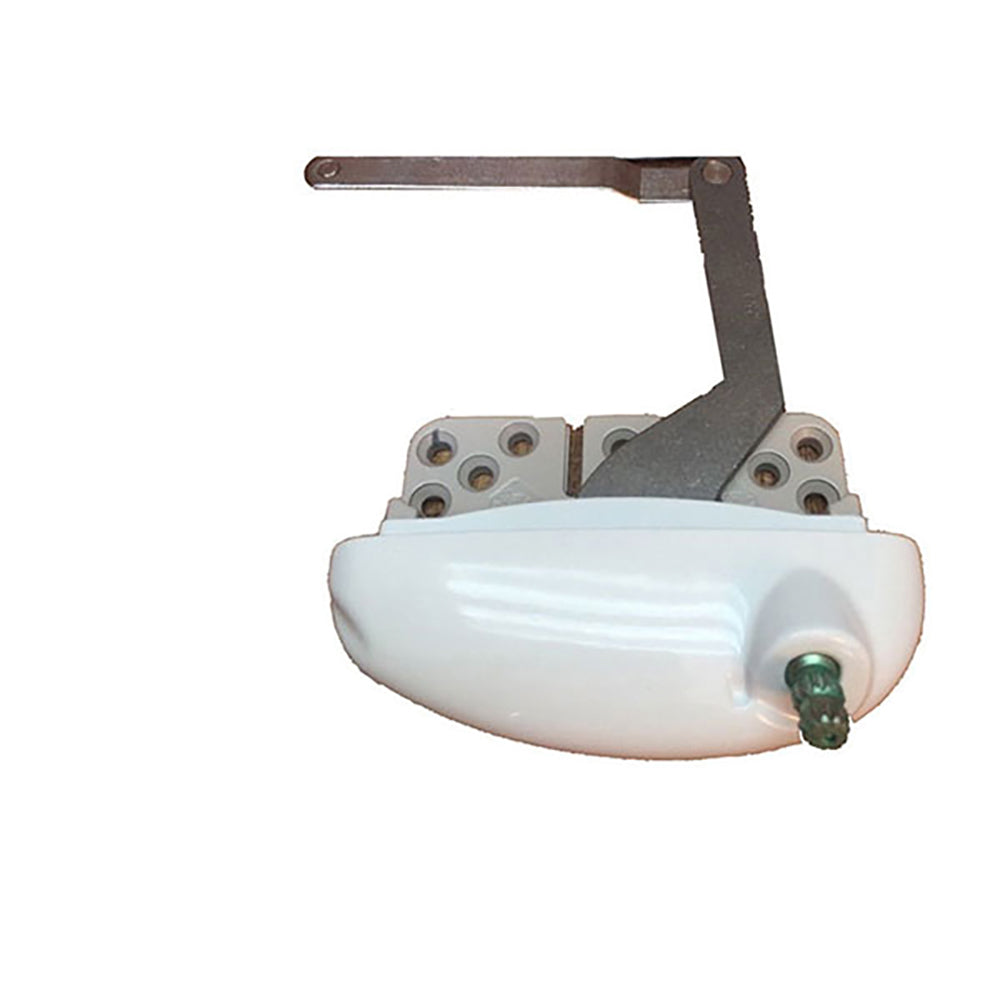

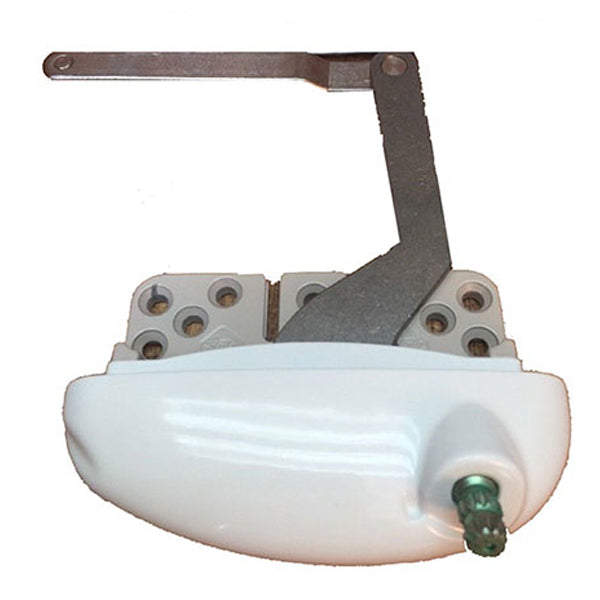

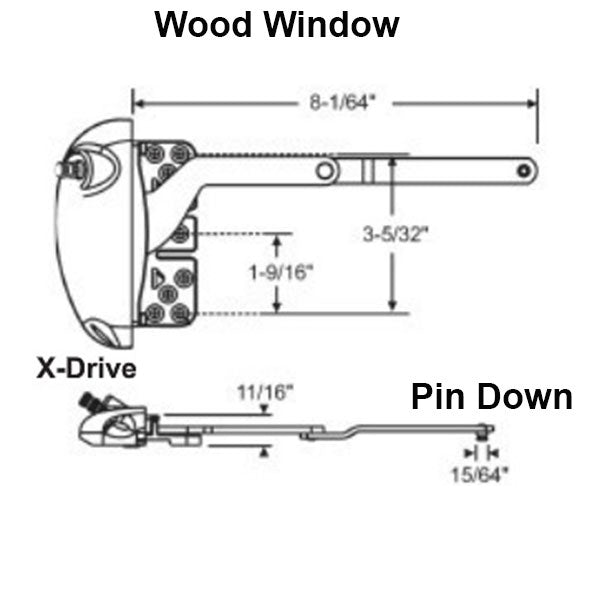

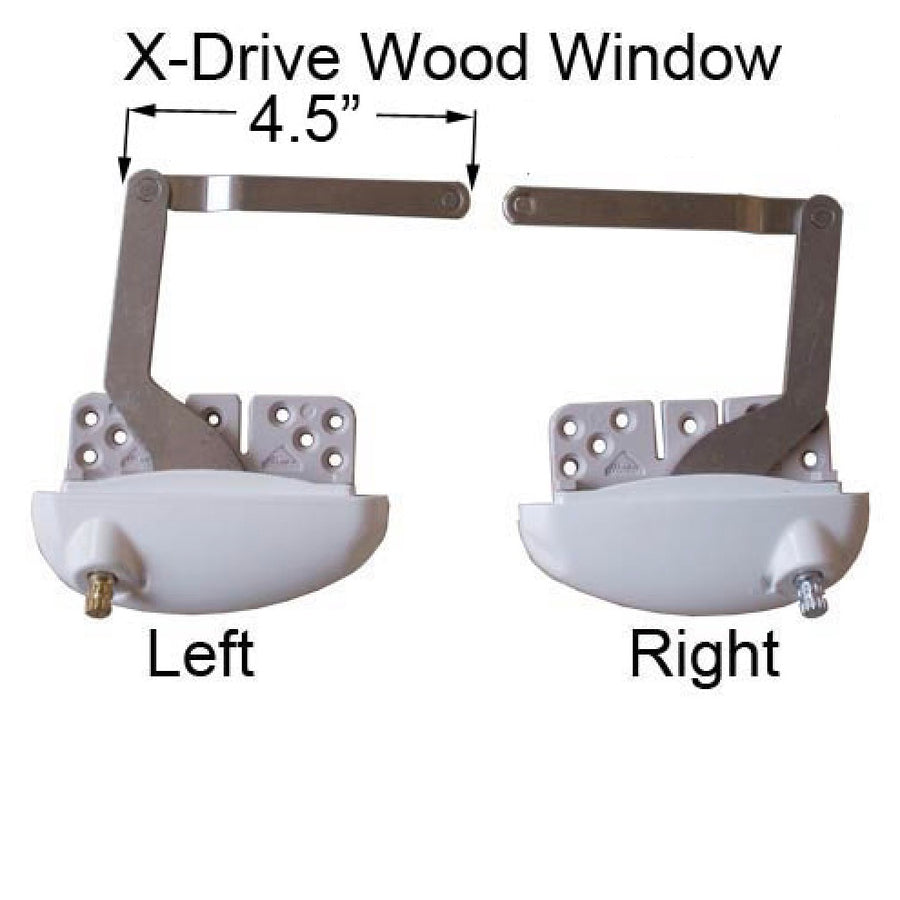

Roto 8-1/64" Split Arm, X-Drive, RH Vinyl Window Application, Coastal

Thick Base, Wood Window
Type: Split Arm Operator

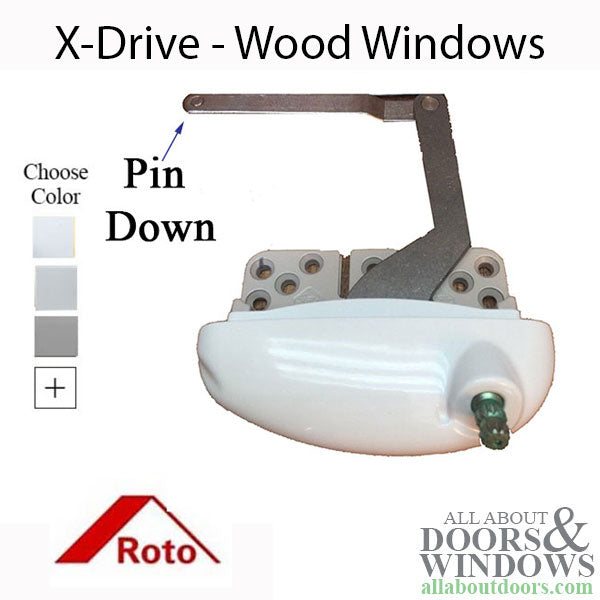

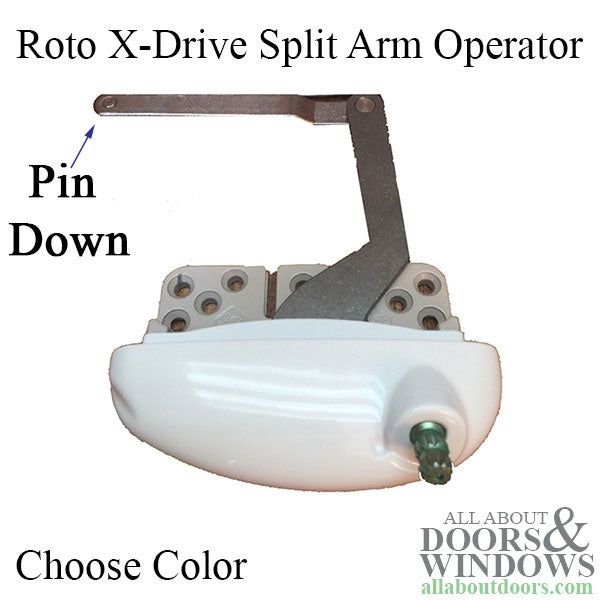

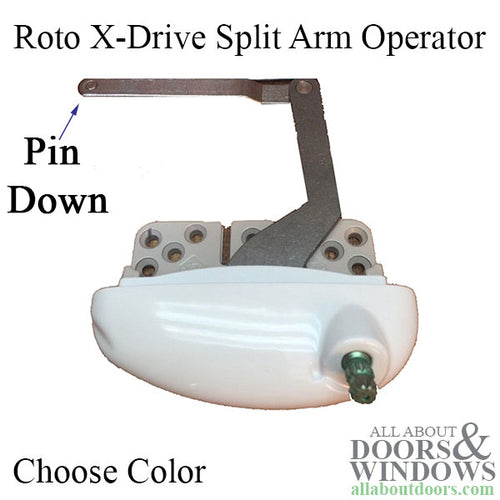

Pin Down

Arm Number: 2034, OP05-2026 (0P05-2026)
Base Number: OP06-1507

Note:
The X-Drive and Pro Drive are the same operator that uses a different crank handle.
The Pro drive operators have a hex shaped hole in the operator and the handle with a 5/16" hex stud pushes into operator.
The X-Drive has a 5/16" Hex spline that protrudes from the base and the handle fits onto it.
