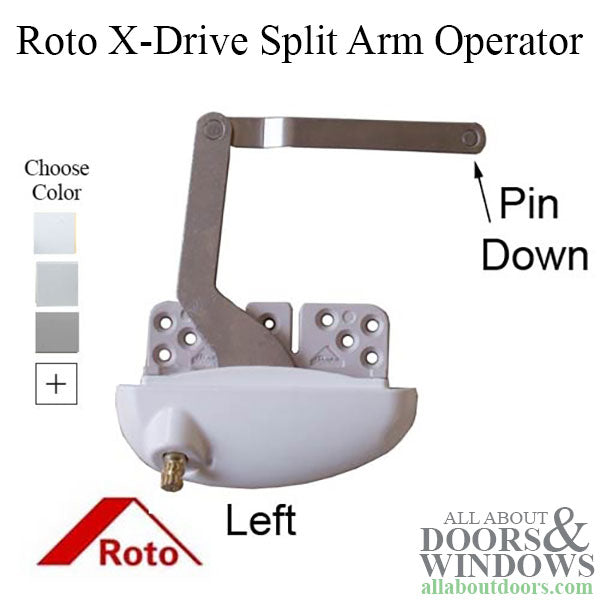

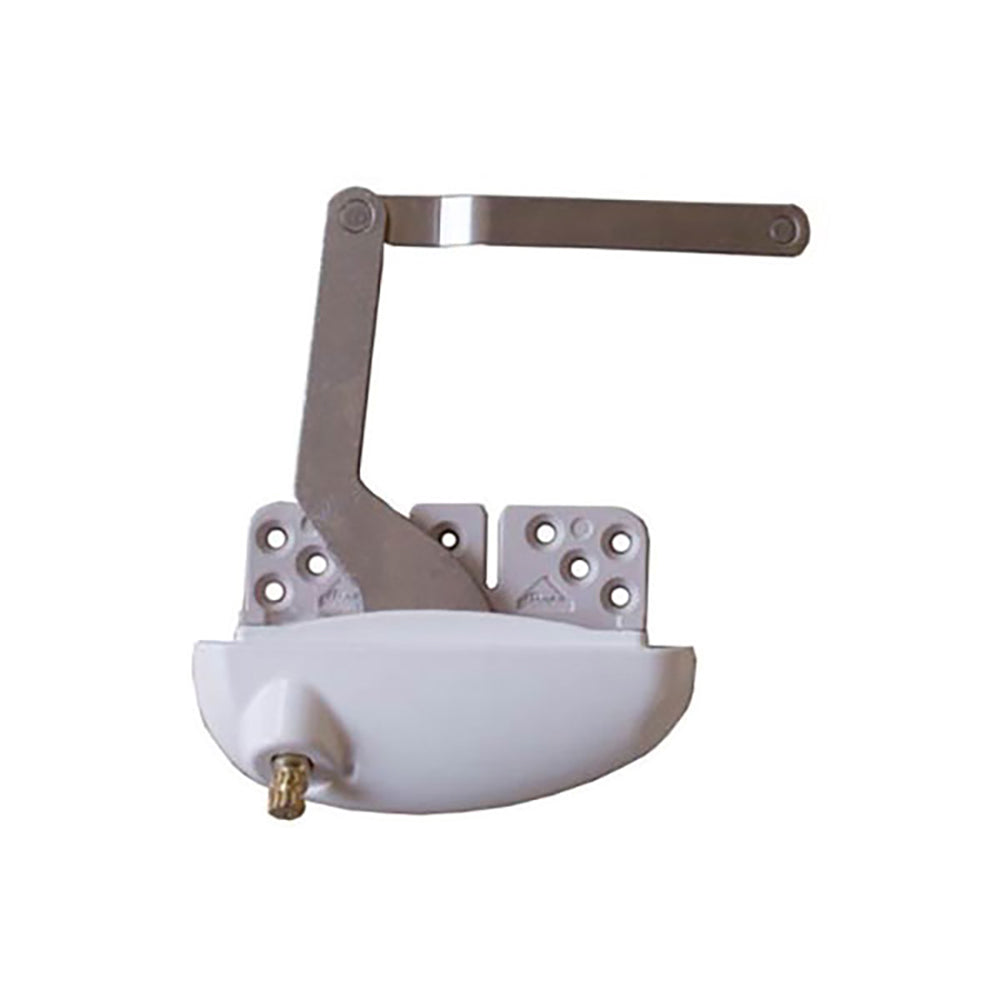

Roto X Drive Split Arm for Wood Window Application,
Application: Wood Windows, Notched Base
Brand: Roto Hardware
Base: 1/8 inch Thin base, 9/16 Overall housing thickness

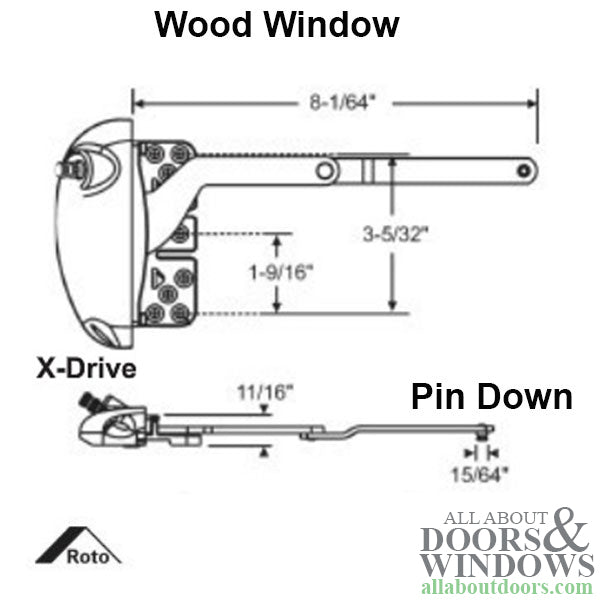

Arm Length: 8-1/64" from housing to middle of arm
Pin Position: DOWN
Link Offset: Yes
Handed: Yes, Left and right hand as shown
Colors/Finish: G1 Off White
Optional Colors: White G2, Off White G1, Blue White, Almond
Roto Operator Note:
The X-Drive and Pro Drive are the same operator that uses a different crank handle.
The Pro drive operators have a hex shaped hole in the operator and the handle with a 5/16" hex stud pushes into operator.
The X-Drive has a 5/16" Hex spline that protrudes from the base and the handle fits onto it.
