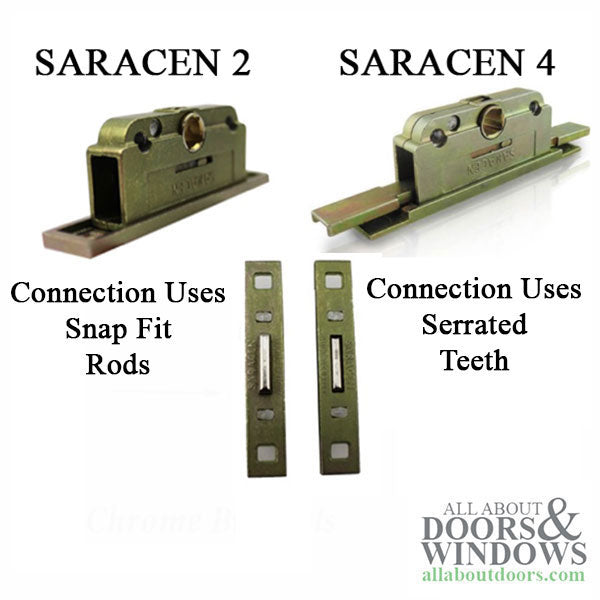

Important: The Saracen 2 and Saracen 4 look the same when installed in door.

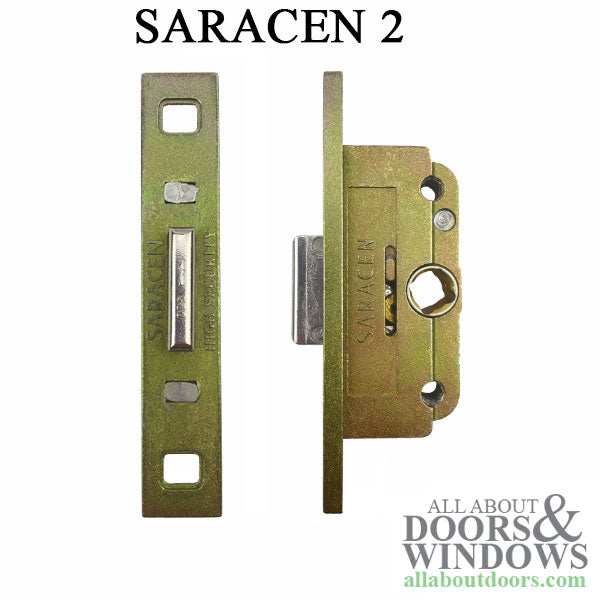

The Saracen SC2 gearbox attaches to extension pieces, clip and twist in rods
The Saracen SC4 gearbox attaches to serrated connections.

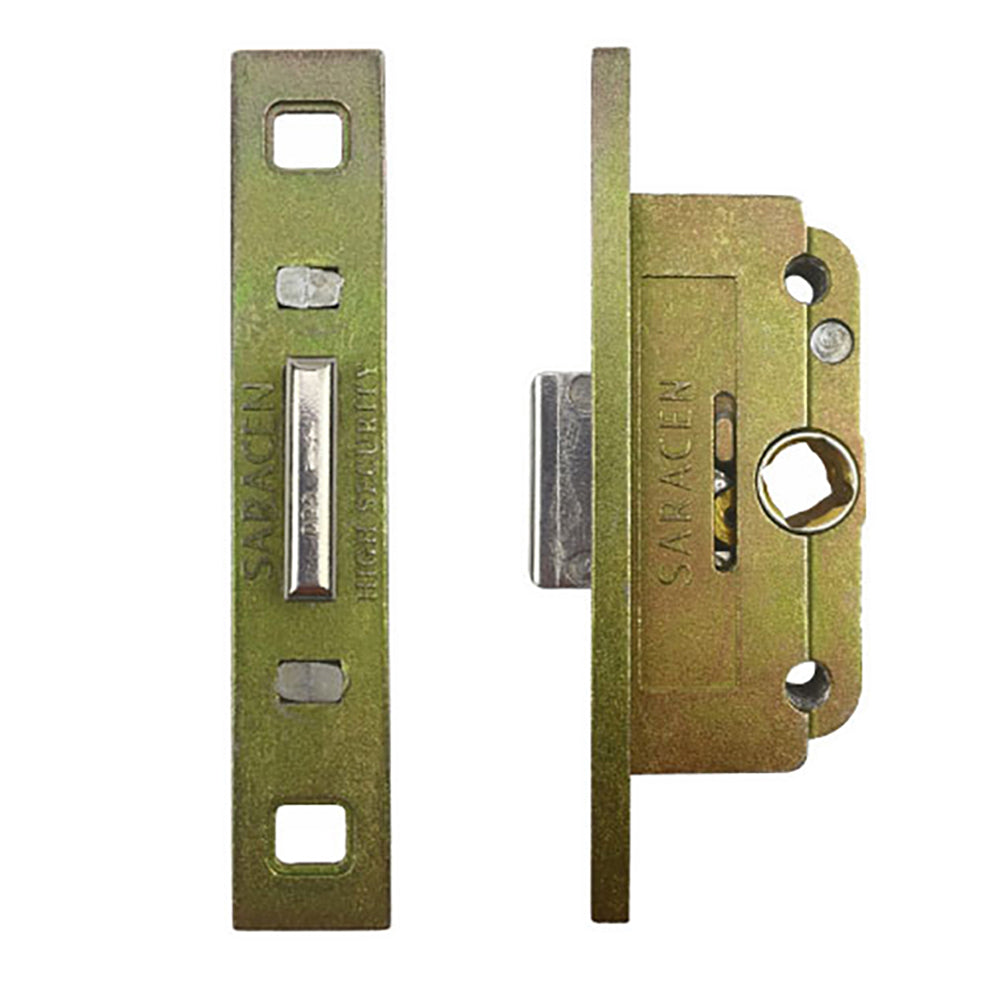

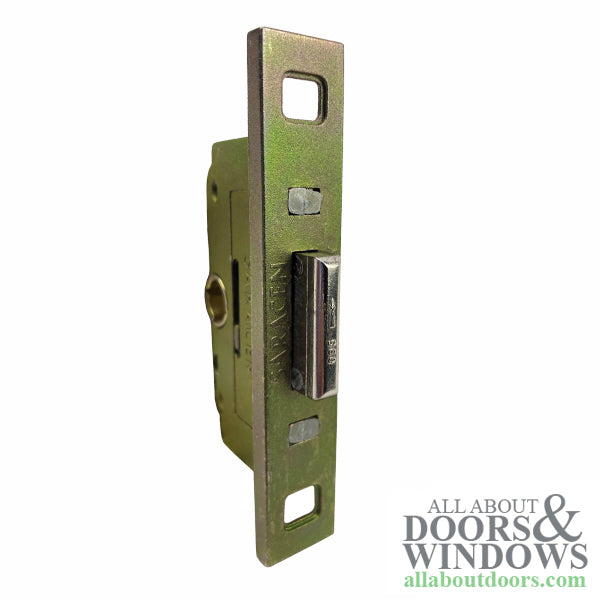

Application: Window Lock
Faceplate Length: 3-1/2 inch (90mm)
Faceplate Width: 5/8 inxh (15mm)
Body: 2-7/16 x 1-1/8 inch ( 61mm x 30mm)
Backset: 7/8 inch (22mm) 0.866
Bolt throw: 3/8 inch (9.5mm) 0.374
Rods: Snap Fix
Operation: Lift handle to engage locking points
Extension pieces: Supplied Separately
Sold Each, No Screws, No Rods
Additional Information:
* Saracen Window lock gearbox with 22mm backset for UPVC windows. Suits Clip and Twist in Rods, which snap in to secure
* This product takes the SC2 shootbolts that are available separately.
* The Saracen 2 window deadbolt gearbox accepts a 7mm spindle from a locking or non locking window handle.
* The rods that fit this Window Lock Gearbox clip and twist to secure in place. They are not included with the Gearbox and must be purchased separately. If they are required, Contact Office
