Savoy Grip Entry Handleset for Multipoint Locks Schlage 5 Pin Keyway
Use the arrows or swipe left to view all images for this product
Savoy Grip Entry Handleset for Multipoint Locks Schlage 5 Pin Keyway
Part Number: $485.72 to $526.75Will NOT work work with the Triple latch
(Triple latch locks = 70100068, 70100080, 72220068, 72220080)
Application: Residential exterior door with Rockwell multipoint lock.
Function: Active Keyed door
Style: 2 Piece sectional

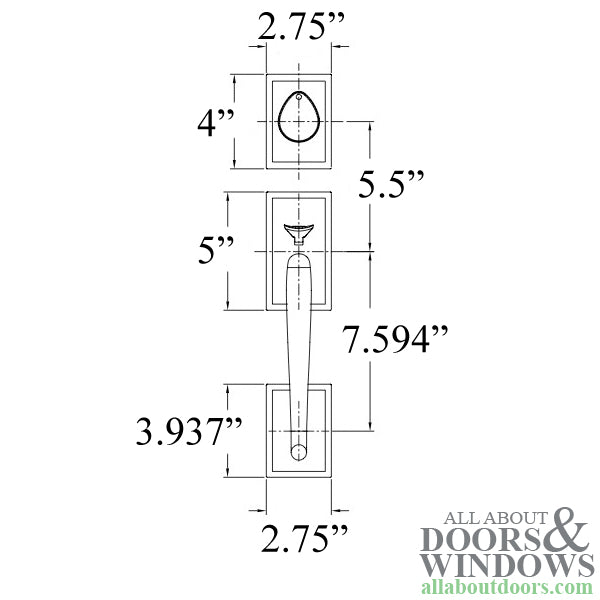

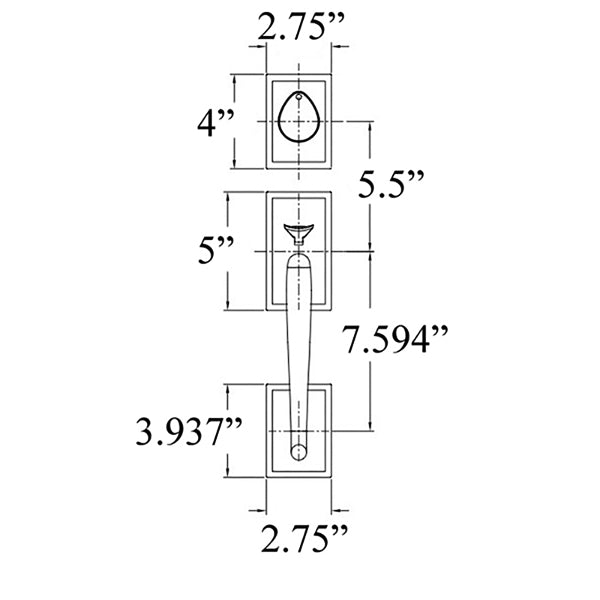

Deadbolt Plate Width: 2.75 inches
Deadbolt Plate Length: 4 inches
Entrance Handle Plate Width: 2.75 inches
Entrance Handle Plate length: 5 inches
Handleset Style: Modern Rectangular escutcheon plates
Lever Style: curved lever, classic wave design
Material: solid forged brass
Bore Application: 5-1/2 inch, center of holes for Handleset and Deadbolt
Cross Bore: 2-1/8\" Diameter, Standard for most doors
Door Thickness: 1-3/4 inch
Keyway: Schlage SC1, 5 pin
Keys: 2 with Large Bow head

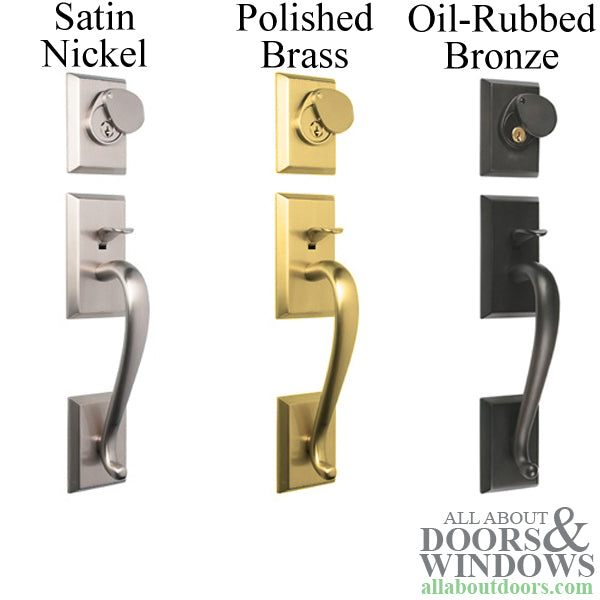

Color Options:
Satin Nickel
Polished Brass
Oil Rubbed Bronze
Premium multipoint lock handleset for use with TONGUE Multipoint lock only (See Part 49917168)
Will NOT work work with the Triple latch
(Triple latch locks = 70100068, 70100080, 72220068, 72220080)
Application: Residential exterior door with Rockwell multipoint lock.
Function: Active Keyed door
Style: 2 Piece sectional
Deadbolt Plate Width: 2.75 inches
Deadbolt Plate Length: 4 inches
Entrance Handle Plate Width: 2.75 inches
Entrance Handle Plate length: 5 inches
Handleset Style: Modern Rectangular escutcheon plates
Lever Style: curved lever, classic wave design
Material: solid forged brass
Bore Application: 5-1/2 inch, center of holes for Handleset and Deadbolt
Cross Bore: 2-1/8\" Diameter, Standard for most doors
Door Thickness: 1-3/4 inch
Keyway: Schlage SC1, 5 pin
Keys: 2 with Large Bow head
Color Options:Satin NickelPolished BrassOil Rubbed Bronze
