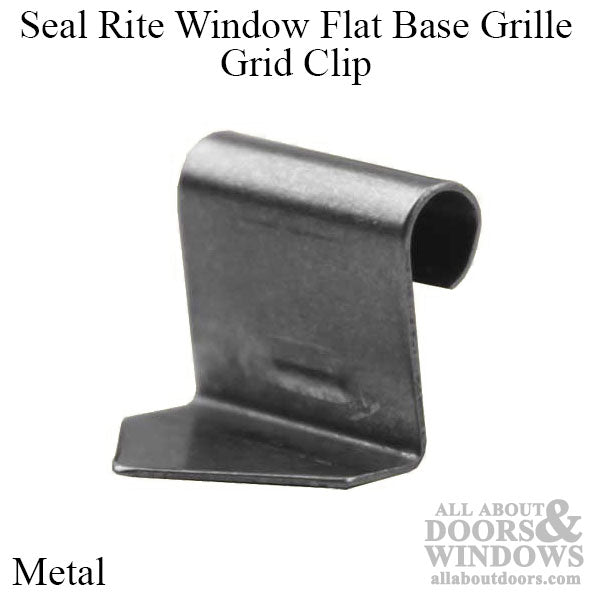

Seal Rite Window Flat Base Grille / Grid Clip- 10 Pack

Part Number:54020 Price: $12.38
Seal-Rite Metal grid / Grille clip: Discontinued 2009 - Replacement Available

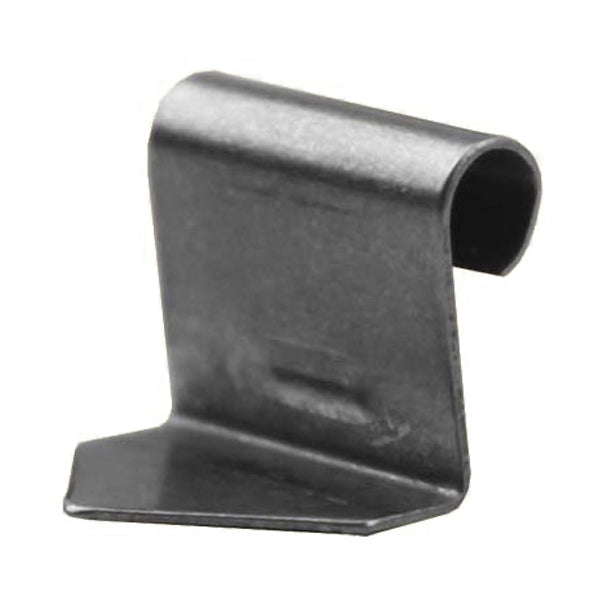

Seal-Rite Rolled Metal spring tension window grid clip;
fits outlook, seal rite, window technology and other wood windows.
grille / grid slides between glass and wood stop
metal rolled top snaps into wood grille
Concealed spring Metal Fastener;

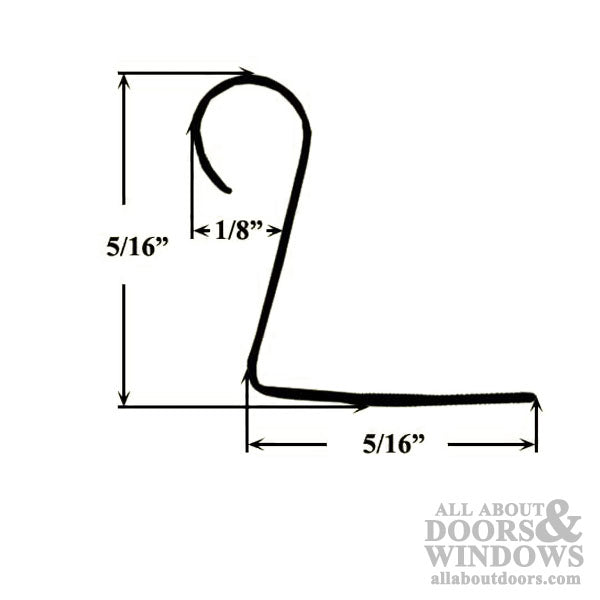

Width: 3/8 inch wide,
Height: 5/16 inch tall with 1/8 inch rolled edge,
Projection: 1/4 inch
Patent # 5109647

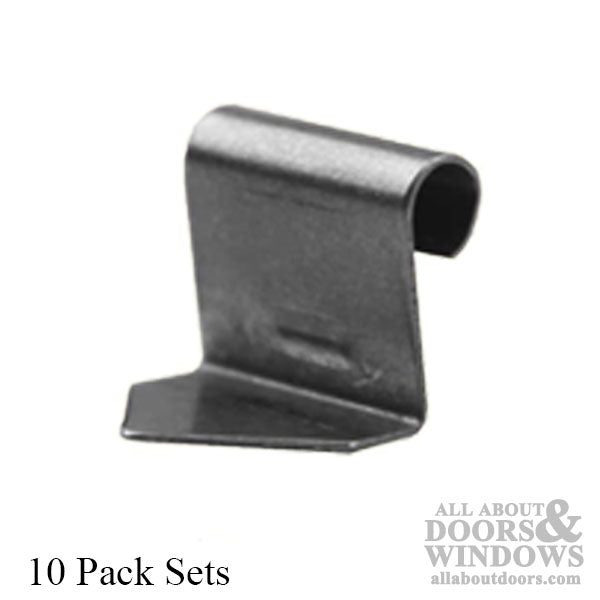

Sold in bags of 10 clips.

Guide: GRILLE CLIP INSTALLATION INSTRUCTIONS
