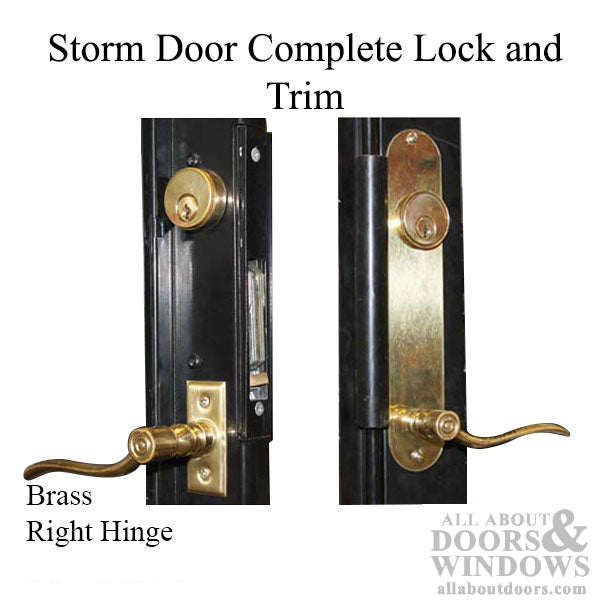

Adams Rite Steel Security Ornamental Storm Door Complete Mortise Lock and Trim Right Hinge
Use the arrows or swipe left to view all images for this product
Adams Rite Steel Security Ornamental Storm Door Mortise Lock Kit - Brass
Used by Grisham on their bank vault security storm door Includes Handles, escutcheon plates and keyed cylinders, Mortise Lock and Screws (Does NOT include - Latch Cover plate). Has Left or Right Handed, spring latch on face of lock.
Specifications:
- Faceplate: 1 x 6-7/8
- Cylinder Backset: 1 inch from front of face plate to center of Cylinder
- Handle Back set: 7/8 inch to center of Handle.
- Lock Markings: Inspect 010; Grade 1: ANSI 156.5
- Escutcheon Plate: 1-3/4 x 9 inches; **factory included plate normally has small imperfections and sold as is***
- Hole spacing from center of key Cylinder to center of handle: 5-1/4 inches
- Handle Hole Diameter: 1/2 inch
- Cylinder Hole Diameter: 1-1/8 inch (NOTE: Hole for cylinder is off center; Handle hole is Centered)
- Inside Handle Plate: 1-1/16 x 2-1/2 inches
- Cylinder Length: 13/16 inch; 4 pin cylinder, Adams Rite Tail piece
- Keyway: Kwikset, Rekeyable (need to cut KW1, 5 pin key blank shorter )
- Handed: YES; Left or Right as viewed from Outside hinge side
- Primarily Picture is a Left Hinge Door
NOTE:
The only difference between the Left and RIght hand hardware is the mortise lock latch.
If you order the wrong handing, you may exchange just the lock case for the opposite one.
Special Order, we normally stock one.
Adams Rite Steel Security Ornamental Storm Door Mortise Lock Kit - Brass
Used by Grisham on their bank vault security storm door

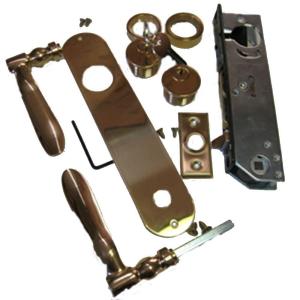

Includes Handles, escutcheon plates and keyed cylinders, Mortise Lock and Screws
Does NOT include - Latch Cover plate
Has Left or Right Handed, spring latch on face of lock.
Lock Body Dimensions:
Face Plate 1 x 6-7/8;
Cylinder Backset: 1 inch from front of face plate to center of Cylinder
Handle Back set: 7/8 inch to center of Handle.
Lock Markings: Inspect 010; Grade 1: ANSI 156.5
Escutcheon Plate 1-3/4 x 9 inches; **factory included plate normally has small imperfections and sold as is***
Hole spacing from center of key Cylinder to center of handle: 5-1/4 inches
Handle Hole Diameter: 1/2 inch
Cylinder Hole Diameter: 1-1/8 inch
NOTE: Hole for cylinder is off center; Handle hole is Centered
Inside Handle Plate: 1-1/16 x 2-1/2 inches
Cylinder Length: 13/16 inch; 4 pin cylinder, Adams Rite Tail pieceKeyway: Kwikset, Rekeyable (need to cut KW1, 5 pin key blank shorter ) Handed- YES; Left or Right as viewed from Outside hinge side
Primarily Picture is a Left Hinge Door
Related Hardware:
40085 - Complete Hardware Kit - Brass - Left
40086 - Complete Hardware Kit - Brass - Right
40087 - Trim Only; Handles and Plate - Brass

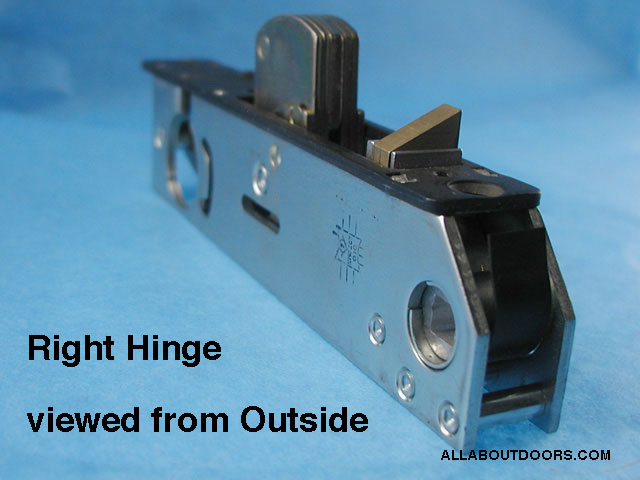

40088 - Mortise Lock Body, Right Hand
40089 - Mortise Lock Body, Left HandNOTE:
The only difference between the Left and RIght hand hardware is the mortise lock latch.
If you order the wrong handing, you may exchange just the lock case for the opposite one.
