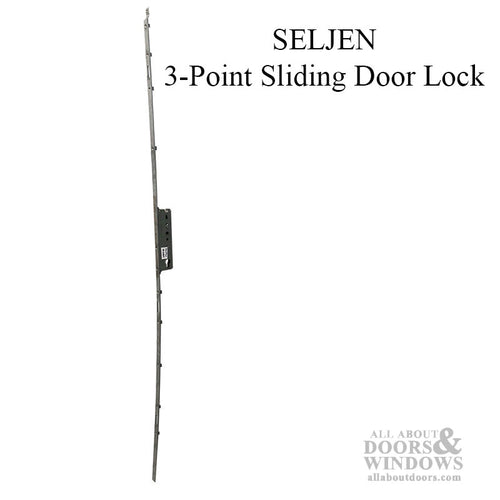

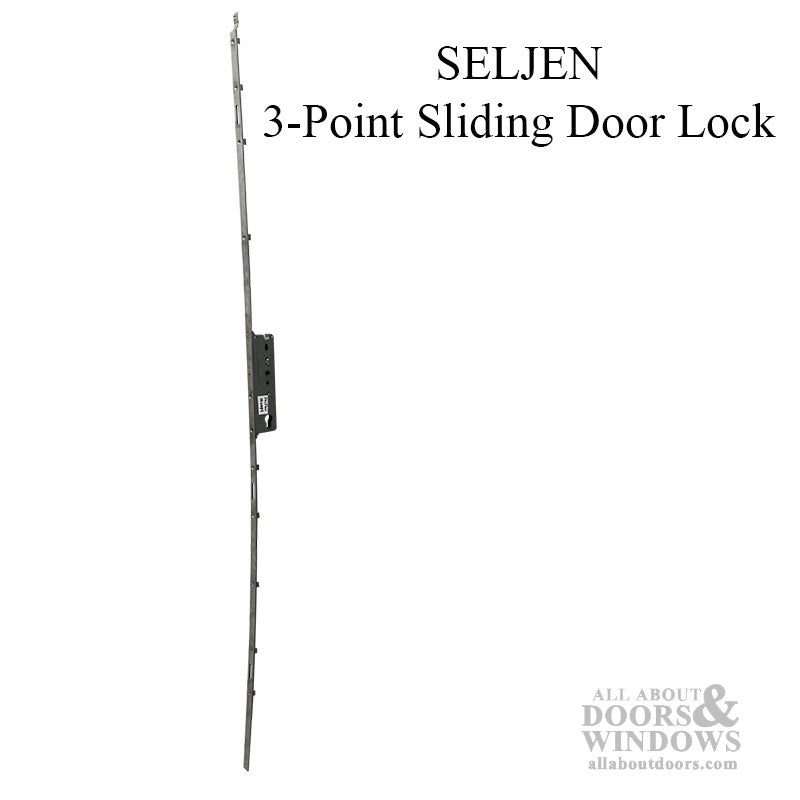

Seljan Multipoint Sliding door lock - 3 hooks on strike - This lock is no longer in production (Replacement available! See Additional Information tab)
Used by Champion, Kensington and others
The multipoint lock is a receiver for the 3 hooks on strike, a flat bar sides up and down to lock hooks in place.
Face Plate Material: Stainless Steel
Face Plate Width: 3/4 inch (20mm)
Face Plate Length: 59-5/8 inch
Markings on Faceplate: Seljan ADH / IPS
Backset: 1-3/8 inch
Handle PZ: 3-5/8 (92mm)
Handle Height: 34-1/2 inch
Locking Device: 3 Hooks on door jamb strike

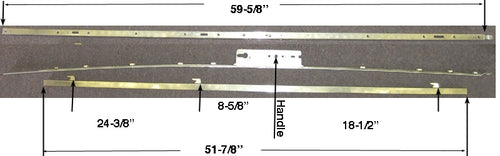

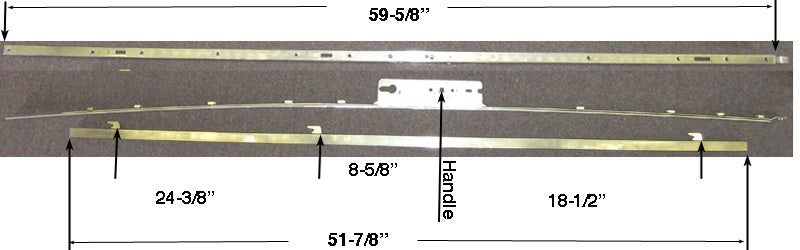

Strike: 3/4 x 3/4 x 51-7/8 Length, 3 hooks
Replacement Option 1 - See Additional Information Tab for Details
# 2184000 Hoppe
Lock Backset: 1-3/8" (35mm) - SAME
Faceplate Width: 3/4" (20 mm) - SAME
Handle PZ: NONE, uses thumb turn only
Cylinder Type: American - DIFFERENT than Seljan
<style type="text/css">
p.p1 {margin: 0.0px 0.0px 0.0px 0.0px; font: 12.0px Helvetica; color: #1a0a53}
p.p2 {margin: 0.0px 0.0px 0.0px 0.0px; font: 12.0px 'Times New Roman'; color: #1a0a53}
p.p3 {margin: 0.0px 0.0px 0.0px 0.0px; font: 12.0px 'Times New Roman'; color: #1a0a53; min-height: 15.0px}
p.p4 {margin: 0.0px 0.0px 0.0px 0.0px; font: 14.0px 'Times New Roman'; color: #1a0a53}
p.p5 {margin: 0.0px 0.0px 0.0px 0.0px; font: 14.0px Arial; color: #1a0a53}
span.s1 {font: 14.0px 'Times New Roman'}
</style>
<p class="p1">There is not a good, simple replacement. I’ve looked at what I think are the 2 best choices and both require some modifications to the door.</p>
<p class="p1">The Seljan I have on parts board has the following specs</p>

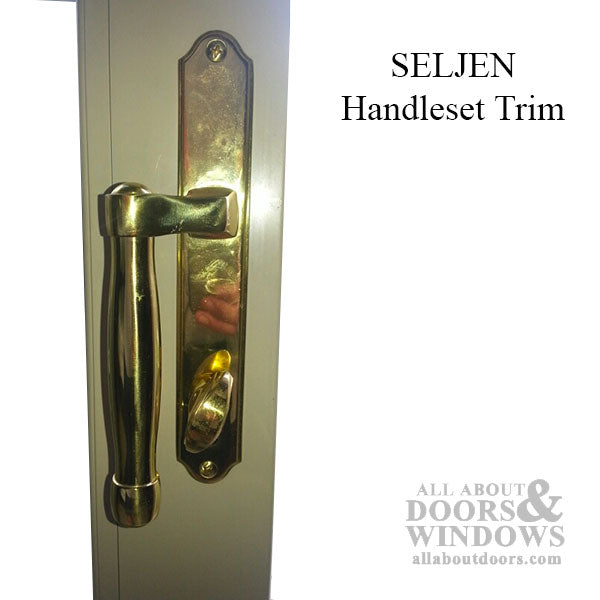

<p class="p2">With either Lock Replacement<span class="Apple-converted-space"> </span>you will have to purchase another handset, yours will not work<span class="Apple-converted-space"> </span></p>
<p class="p2">The route in the door is the biggest consideration, especially on Vinyl</p>
<p class="p3"><br></p>
<p class="p2"><b>SELJAN / Seljen SPECS</b></p>

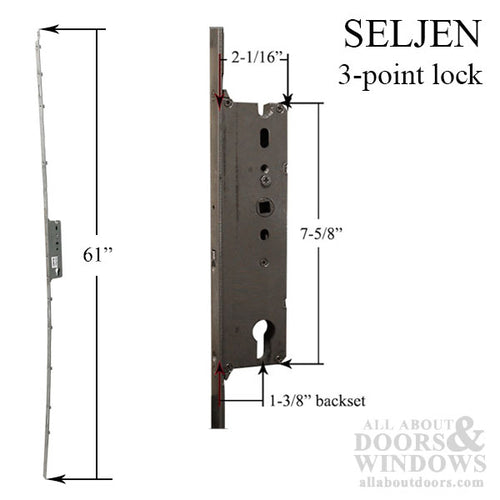

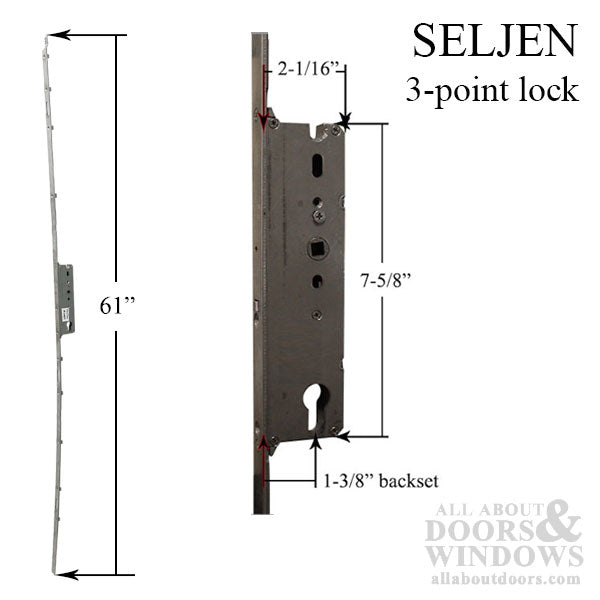

<p class="p2"><b>Backset: 1-3/8 inch (35mm)</b></p>
<p class="p2"><b>Face Plate Width: 25/32 inch (20mm)</b></p>
<p class="p2"><b>Handle PZ:<span class="Apple-converted-space"> </span>3-5/8 (92mm)</b></p>
<p class="p2"><b>Cylinder Type: Euro Profile</b></p>
<p class="p2">Face Plate Length: 59-5/8 inch</p>
<p class="p2">Lock Body Case: 2-1/8 x 7-5/8</p>
<p class="p2">Markings on Faceplate:<span class="Apple-converted-space"> </span>Seljan <span class="Apple-converted-space"> </span>ADH / IPS</p>
<p class="p2">Face Plate Material: Stainless Steel</p>
<p class="p2">Handle Height: 34-1/2 inch</p>
<p class="p2">Locking Device: 3 Hooks on door jamb strike</p>
<p class="p2">Strike: 3/4 x 3/4 x 51-7/8 Length, 3 hooks</p>
<p class="p2">Spindle: 8 mm</p>
<p class="p2">Route in Door: Euro Groove</p>
<p class="p3"><br></p>
<p class="p4"><b>Option 1.</b> # <b>2184000 Hoppe</b></p>
<p class="p2"><b>Lock Backset: 1-3/8" (35mm)<span class="Apple-converted-space"> </span>- SAME</b></p>
<p class="p2"><b>Faceplate Width: 3/4" <span class="Apple-converted-space"> </span>(20 mm)<span class="Apple-converted-space"> </span>- SAME</b></p>
<p class="p2"><b>Handle PZ:<span class="Apple-converted-space"> </span>NONE, uses thumb turn only</b></p>
<p class="p2"><b>Cylinder Type: American<span class="Apple-converted-space"> </span>- DIFFERENT</b></p>
<p class="p2">Faceplate Length: 30"</p>
<p class="p2">Lock Body Case:<span class="Apple-converted-space"> </span>2 x 5-7/8</p>
<p class="p2">Markings on Faceplate:<span class="Apple-converted-space"> </span>HOPPE</p>
<p class="p2">Face Plate Material: Stainless Steel</p>
<p class="p2">Locking Points: Two hooks, one below handle, one above.</p>
<p class="p2">Hooks: 21-1/4 Inch Center of hooks</p>
<p class="p2">Spindle: 7 mm</p>
<p class="p2">Route in Door: Euro Groove<span class="Apple-converted-space"> </span>- SAME</p>
<p class="p1">NOTE: The Hoppe Replacement has the Key ABOVE the handle. The lock will have to be centered so when the Hoppe handle is installed it covers any holes from the Seljan handle.</p><p class="p3">The Hoppe has 30 inch length faceplate and will not cover the groove in door. We can offer 20mm filler strips that can be used to cover the old faceplate or you can cut down the Seljan as needed.</p>
<p class="p5"><span class="s1"><b>Option 2</b>. # </span><b>40216 Ashland</b></p>
<p class="p2"><b>Lock Backset: 1-3/8 inch (35 mm)<span class="Apple-converted-space"> </span>- SAME</b></p>
<p class="p2"><b>Face Plate Width: 25/32 inch (20mm) - SAME</b></p>
<p class="p2"><b>Handle PZ:<span class="Apple-converted-space"> </span>NONE, uses thumb turn only</b></p>
<p class="p2"><b>Cylinder Type: American<span class="Apple-converted-space"> </span>- DIFFERENT</b></p>
<p class="p2">Overall Length: 40-15/16 inch, Radius ends - SHORTER</p>
<p class="p2">Lock Body case:<span class="Apple-converted-space"> </span>2-1/8 x 4-7/8 inch -<span class="Apple-converted-space"> </span>SMALLER</p>
<p class="p2">Markings on Faceplate:<span class="Apple-converted-space"> </span>Pat. Pending</p>
<p class="p2">Face Plate Material: Stainless Steel</p>
<p class="p2">Hooks: 3 - spaced 16-7/8 inch</p>
<p class="p2">Lock case Markings: <span class="Apple-converted-space"> </span>5126-18</p>
<p class="p2">Route in Door: U Groove - DIFFERENT, Requires new route </p>
<p class="p3"><br></p>
<p class="p2">The Seljan has a square end and the other two are radius -If I was doing the install I would cut the ends square on the new lock and cut material from the old lock to fill in the voids and give it a finished look.</p>
<p class="p3"><br></p>
<p class="p2">Let me know your thoughts<span class="Apple-converted-space"> </span></p><p class="p2"><span class="Apple-converted-space"><br></span></p><p class="p2"><span class="Apple-converted-space">Rory</span></p><p class="p2"><span class="Apple-converted-space">Owner and President of AllAboutDoors.com</span></p><style type="text/css">
