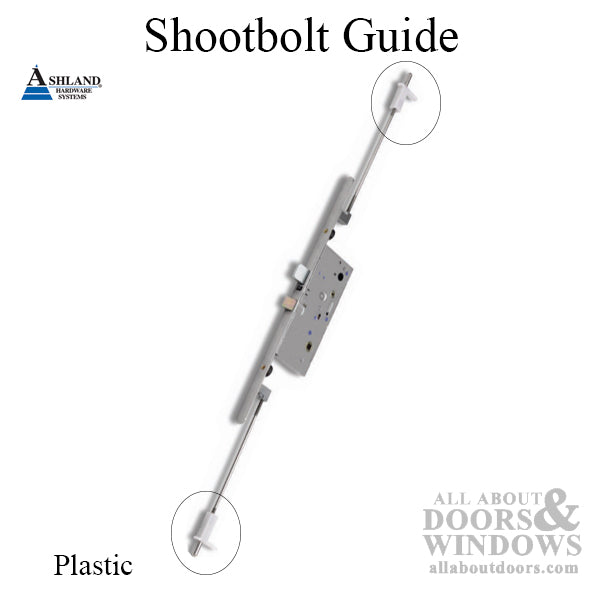

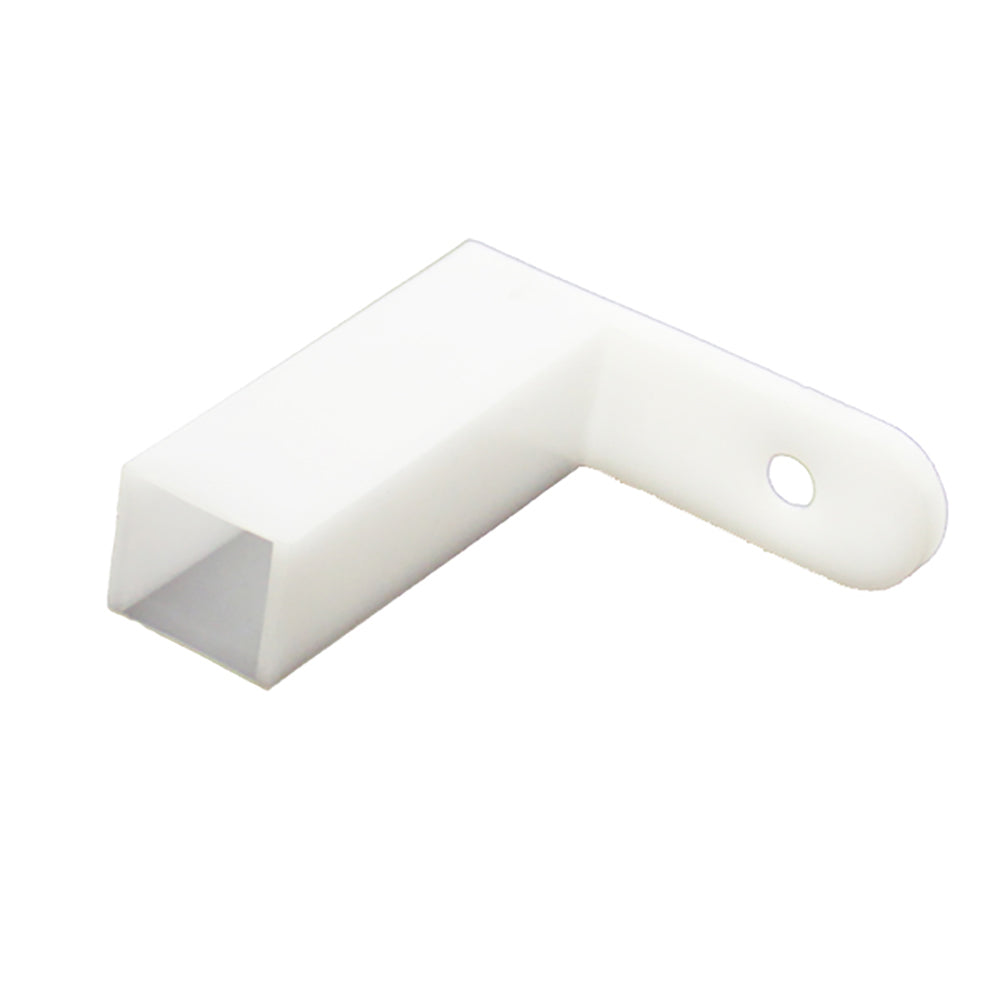

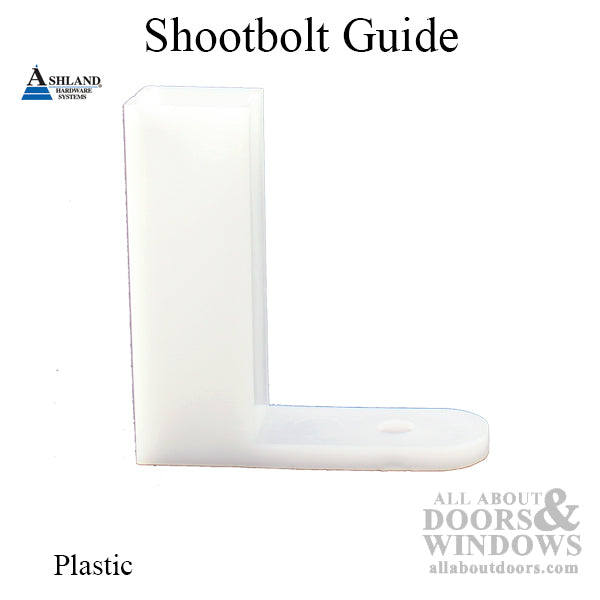

Shootbolt Guide for wood application, Square Shape Tip
Use the arrows or swipe left to view all images for this product
Shootbolt Guide for wood application, Square Shape Tip
Part Number: $4.95Shootbolt Guide, Square Shaped Hole, Plastic
Used with - W1041-30S1 - Shootbolt Tip, Square Shape, 1/4-20 thread

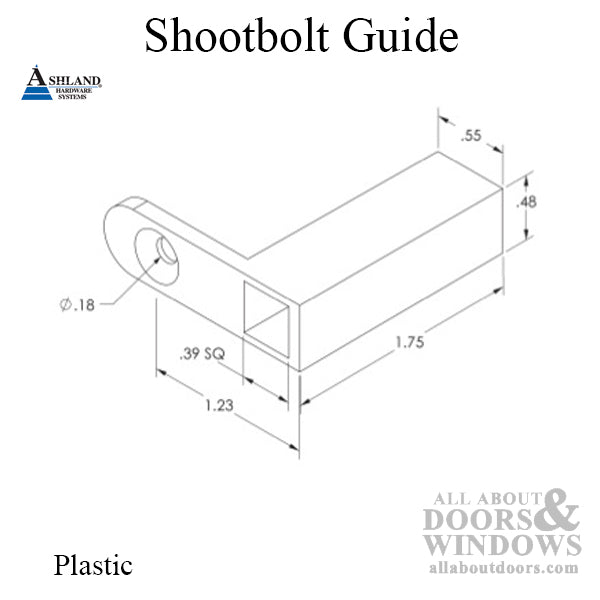

Face Width: 1/2
Face Length: 1-3/4 inch
Depth: 1-5/8 inch
Base: 1/2 x 9/16 inch
