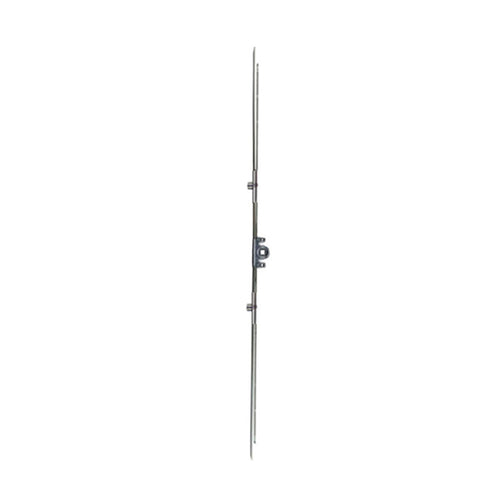

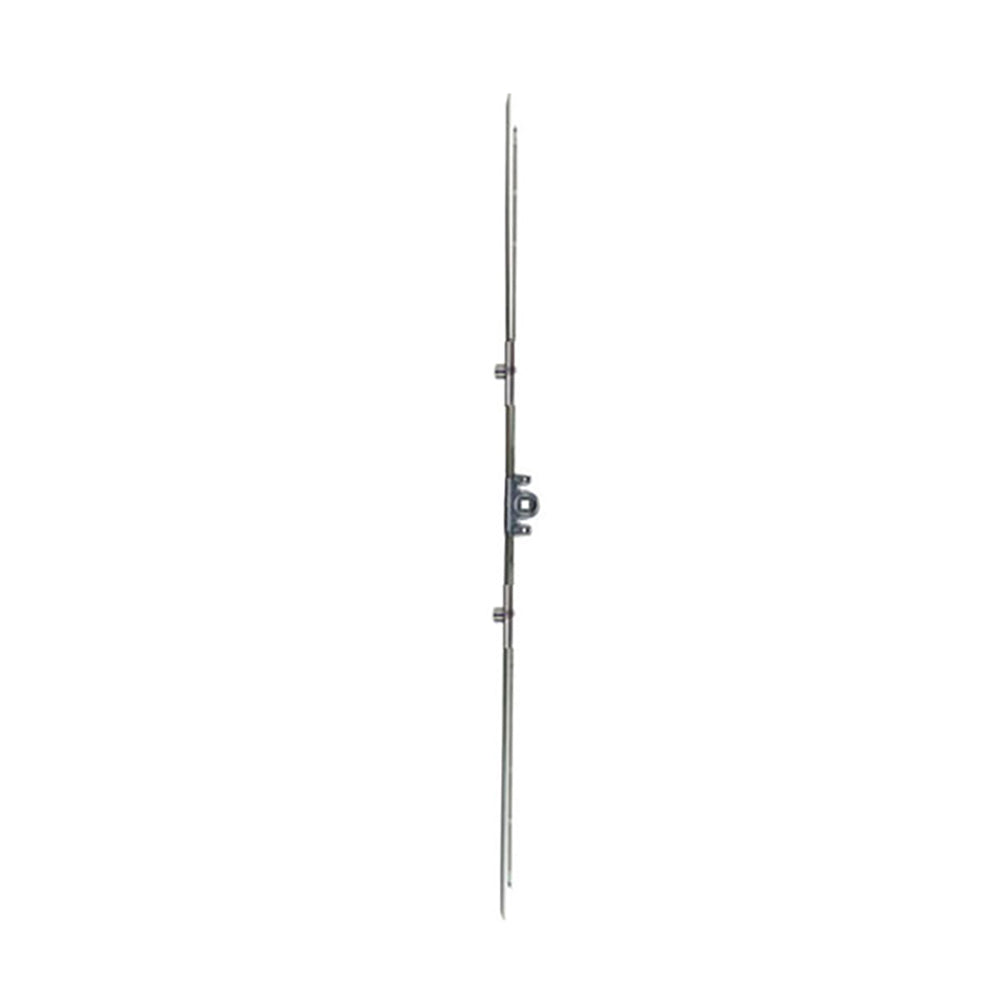

Siegenia Lift and Slide 17mm Patio Door Hardware
Use the arrows or swipe left to view all images for this product
Siegenia Lift and Slide 17mm Patio Door Hardware
Part Number: $195.00Siegenia Lift and Slide 17mm Patio Door Hardware, 2100mm Multipoint lock " SI " Logo
This is the drive gear only with 2 rollers, does not include additional hardware

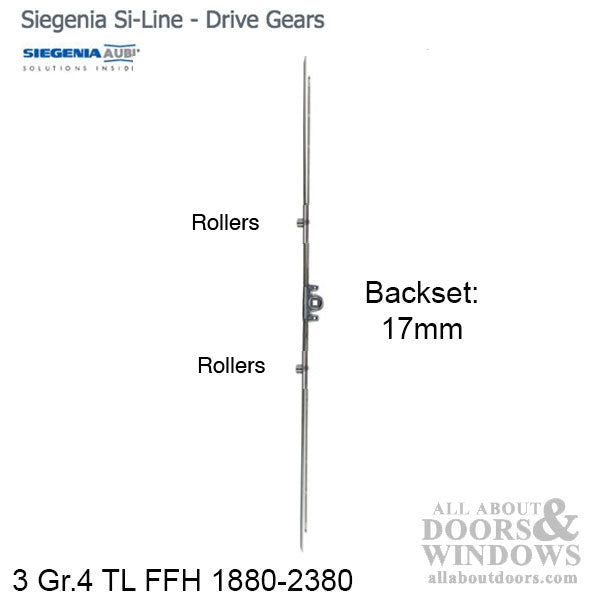

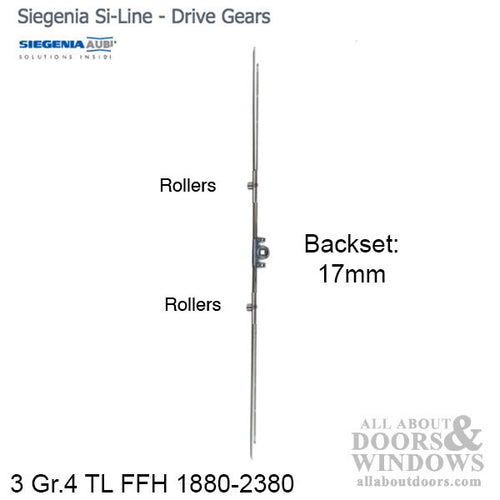

KF-3 SI-Line TBT Drive Gear Gr4TL 17mm 2/R
Backset: 21/32 inches (17mm)

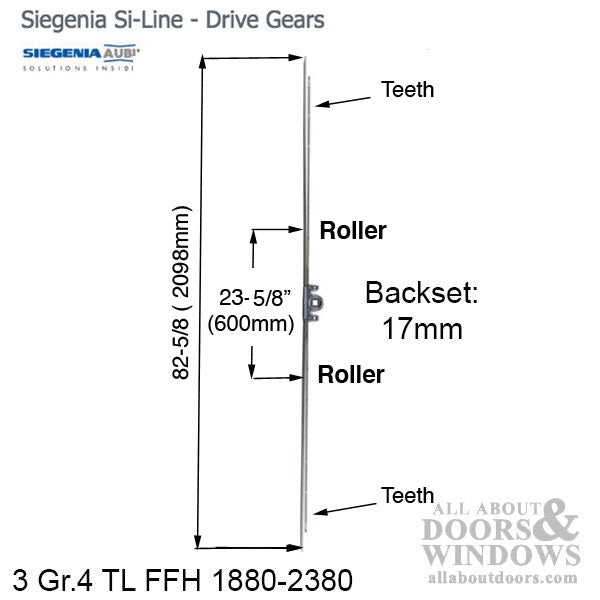

Length: 82-5/8 inches (2100mm)
Rollers: Yes, 2
Distance between rollers: 23-5/8 inches ( 600mm)
Handle to Top roller: 11-13/16 inch (300mm)
Handle to Bottom roller: 11-13/16 inch (300mm)
This is the drive gear only with 2 rollers, does not include additional hardware
KF-3 SI-Line TBT Drive Gear Gr4TL 17mm 2/R
Backset: 21/32 inches (17mm)
Length: 82-5/8 inches (2100mm)
Rollers: Yes, 2
Distance between rollers: 23-5/8 inches ( 600mm)
Handle to Top roller: 11-13/16 inch (300mm)
Handle to Bottom roller: 11-13/16 inch (300mm)
Siegenia Lift and Slide 17mm Patio Door Hardware, 2100mm Multipoint lock " SI " Logo
This is the drive gear only with 2 rollers, does not include additional hardware
KF-3 SI-Line TBT Drive Gear Gr4TL 17mm 2/R
Backset: 21/32 inches (17mm)
Length: 82-5/8 inches (2100mm)
Rollers: Yes, 2
Distance between rollers: 23-5/8 inches ( 600mm)
Handle to Top roller: 11-13/16 inch (300mm)
Handle to Bottom roller: 11-13/16 inch (300mm)
