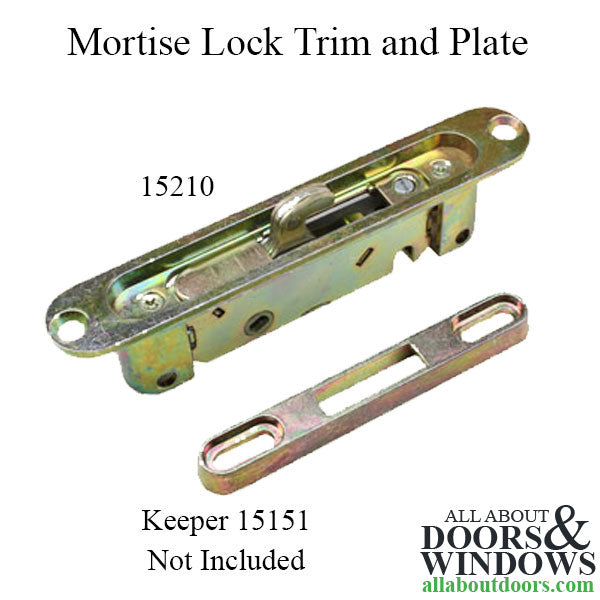

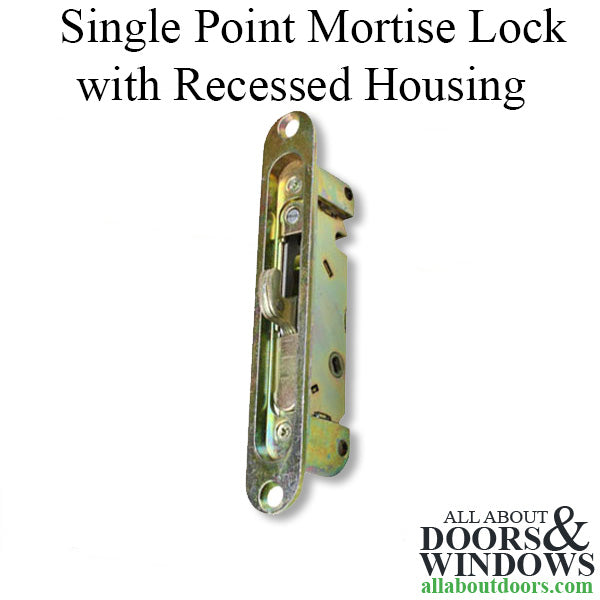

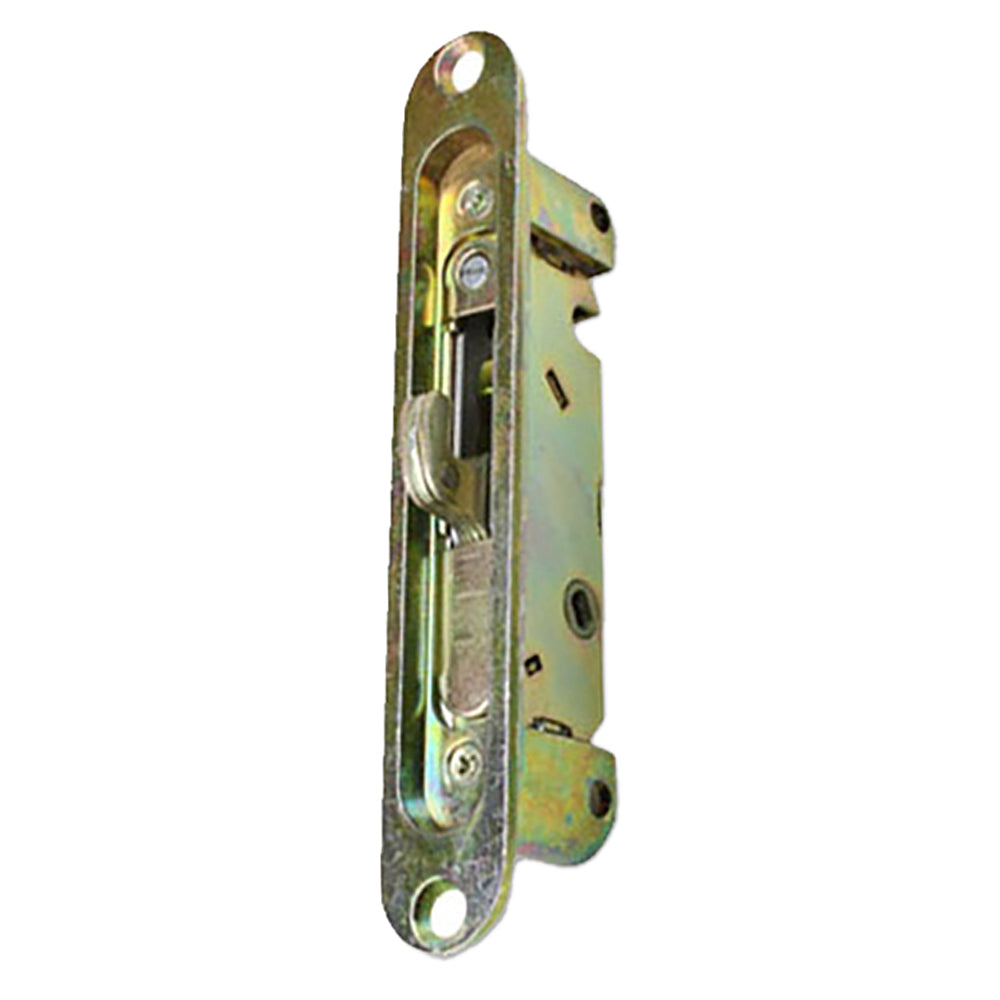

Single Point Mortise Lock with Recessed Housing
Part Number:Single Point Mortise Lock with Recessed Housing. Constructed of diecast metal.
Used on Hydro aluminum Door and others.
Adjustment screw on faceplate.

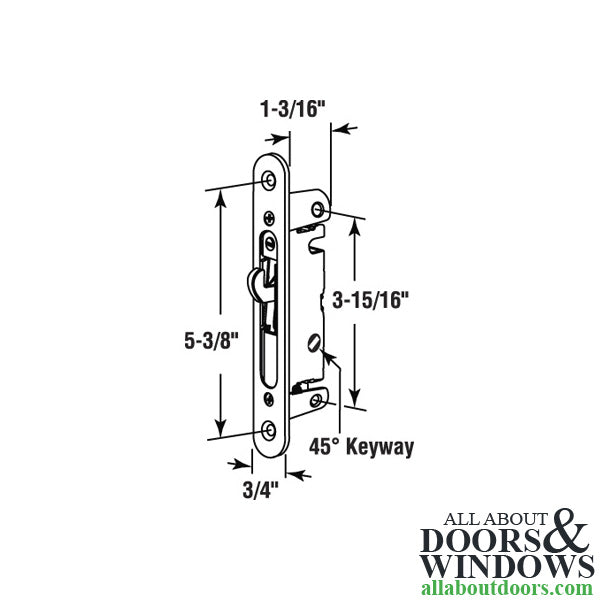

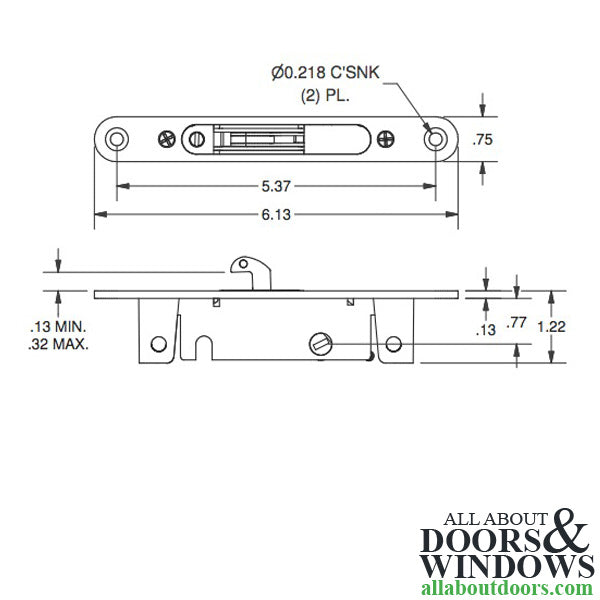

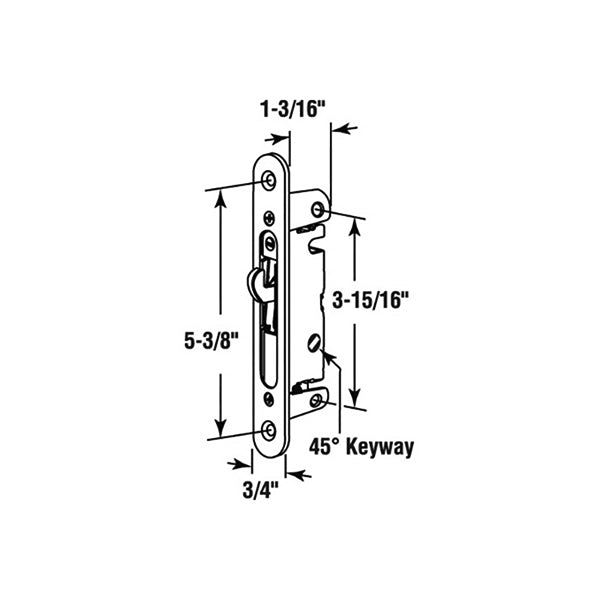

Face Plate Width: 3/4"
Face Plate Length: 5-3/8"
Screw Holes: 5-3/8" center-to-center
Keyway: 45°
Can be replaced with 15142 if customer can reuse existing housing / faceplate
NOTE: Priced and sold each. #15151 keeper not included.
Used on Hydro aluminum Door and others.
Adjustment screw on faceplate.
Face Plate Width: 3/4"
Face Plate Length: 5-3/8"
Screw Holes: 5-3/8" center-to-center
Keyway: 45°
Can be replaced with 15142 if customer can reuse existing housing / faceplate
NOTE: Priced and sold each. #15151 keeper not included.
