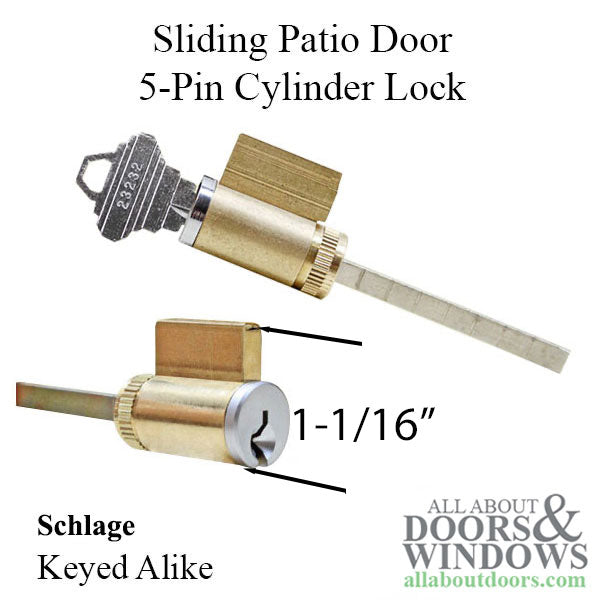

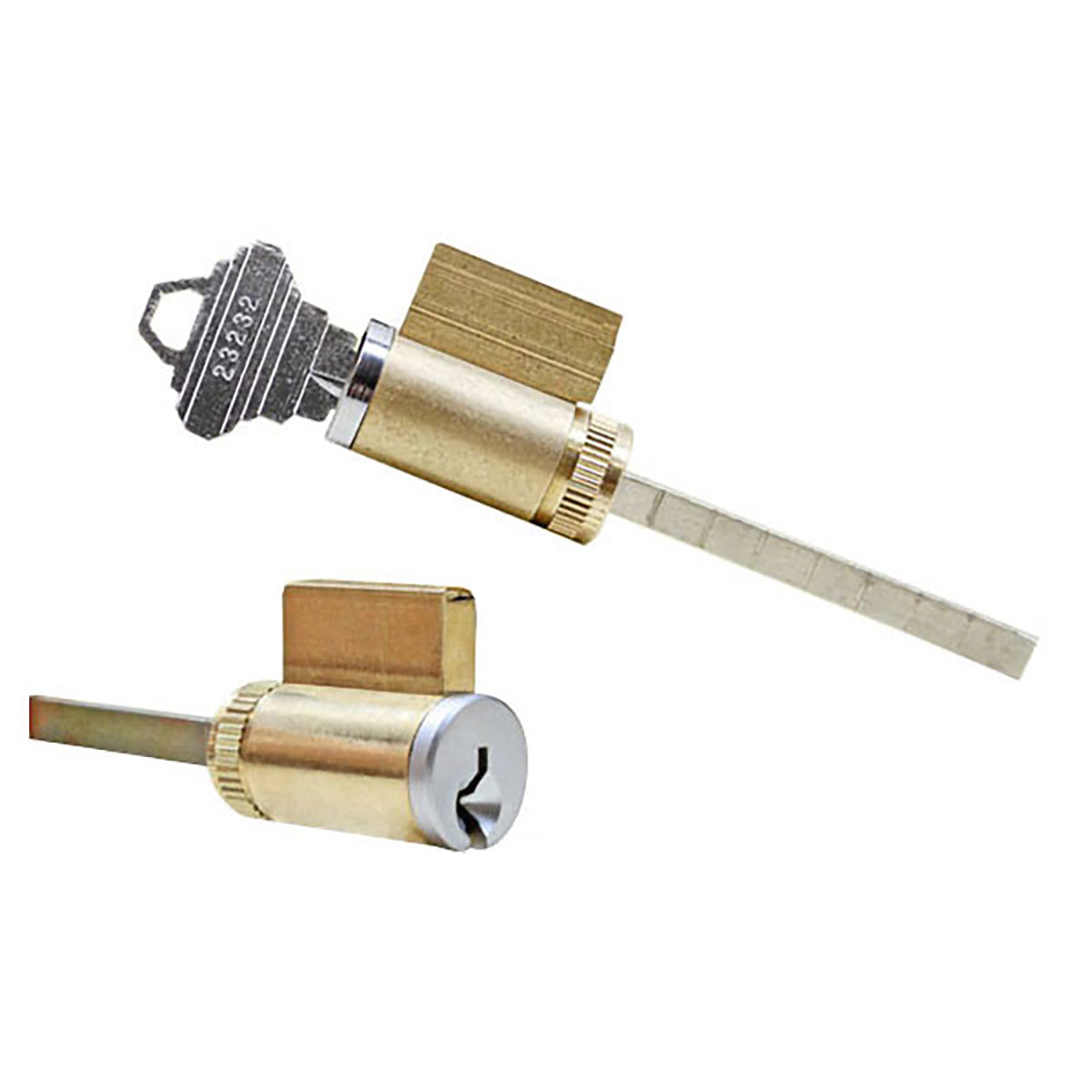

Sliding Door 5 Pin Schlage Lock Cylinder - Keyed Alike

Part Number: 15032 Price: $10.96
American keyed cylinder, 5 pin tumbler sliding door cylinder lock with hardened tailpiece. The most common keyed cylinder used with deadbolts, single and multipoint locks, Andersen, Peachtree, Pease, and others

Keyway: Schlage SC-1, Rekeyable 5 pin
Keying: Keyed Alike (KA), all fit same key

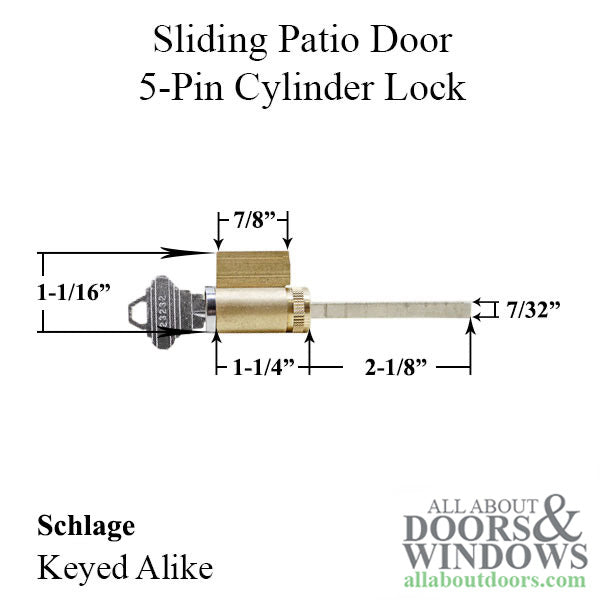

Tail Piece Length: 2-18 inch (adjustable tailpiece has grooves for easy break off for shorter lengths)
Fits doors up to 1-3/4 inches thick

Contents:
1 Key Cylinder
2 Keys

Related items:
15031 - Schlage Keyway KD
15032 - Schlage Keyway KA
15033 - Weiser Keyway KD (Kwikset will also work)
15034 - Weiser Keyway KA (Kwikset will also work)

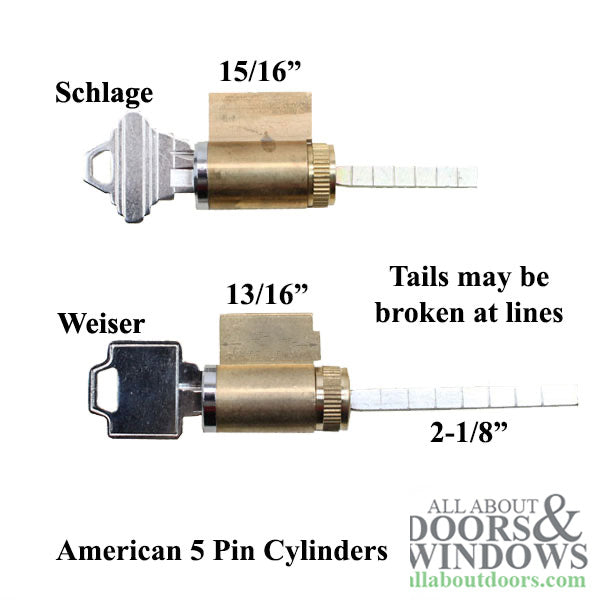

NOTE: About Weiser and Schlage Cylinders
The Schlage housing is 1/32 inch longer and does not have the notch in back sometimes the extra length is to long and may require filing to work. Compare pictures and measurements with your cylinder to be sure which sliding patio door lock you want.
