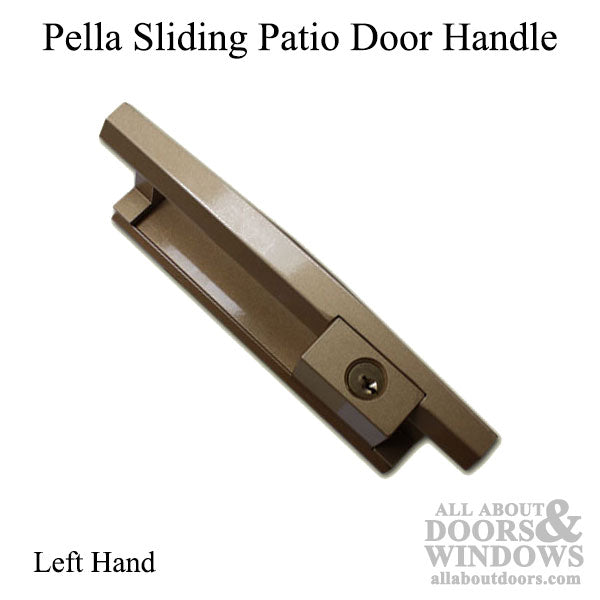

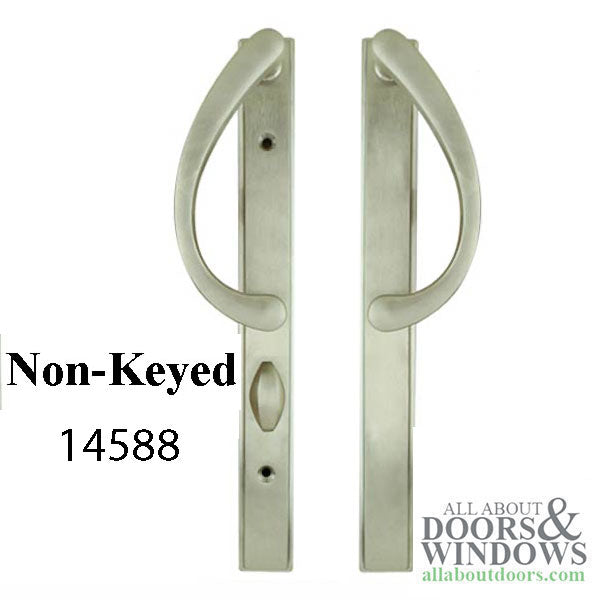

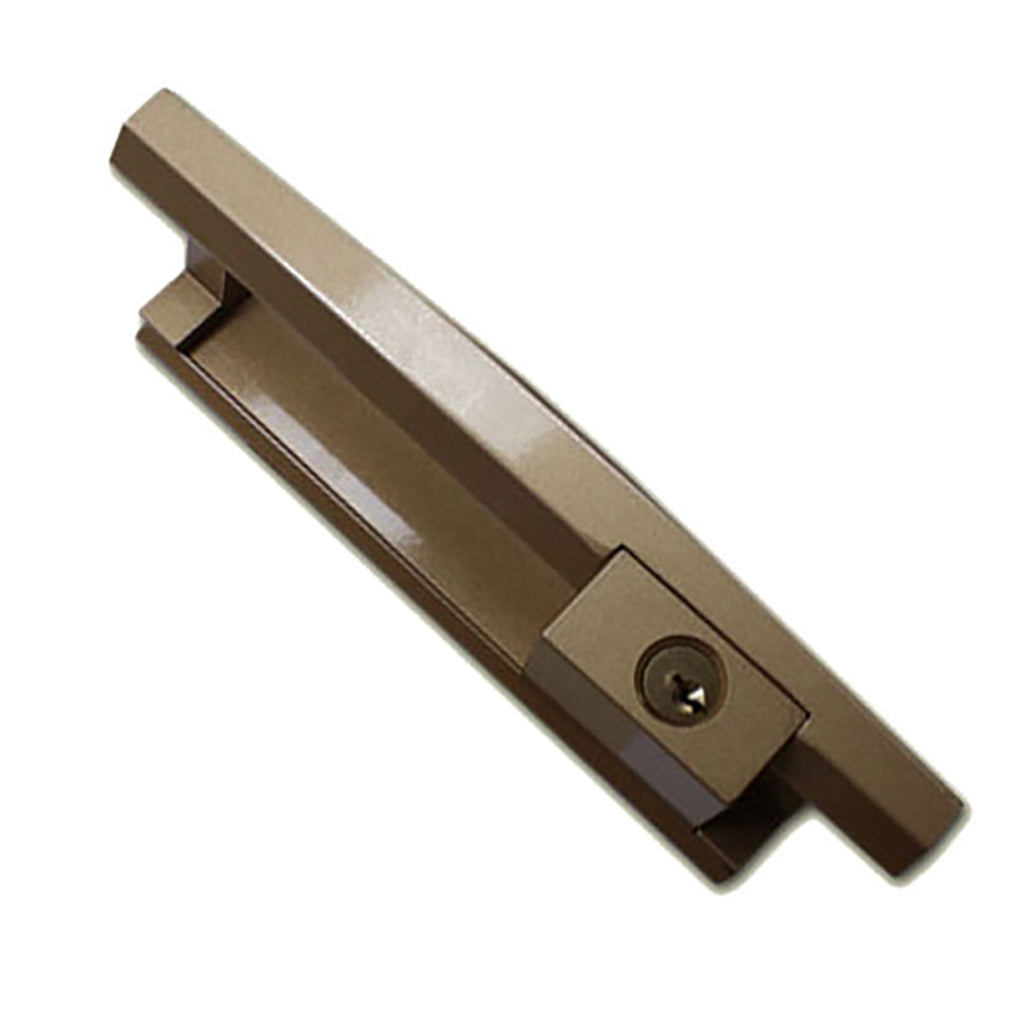

Pella Keyed Sliding patio door handle is Discontinued. May be Replaced with #14588 - see additional images. Will need to drill new screw holes, replacement handle is inverted when installed.
Key cylinder can only be replace with 15032.
Handing: Left Hand
Handle Length: 9 inches
Base Length: 7-1/4 inches
Key: Schlage 6 pin / SC4 keyway
Color: Copperite
Can be used with 15026 mortise lock
INSTALLATION INSTRUCTIONS:
1. Insert 1/4 inch square latch spindle into the nylon latch lever and insert into lock.
2. Insert the bronze thumb lock lever into the slot of the locking cam.
3. Attach the inside screen handle using two 1-1/8 x 8 Phillips oval head bronze screws.
Your Pella door should operate freely and easily.
Paraffin may be applied to the inside of the top screen channel if needed.
Tension of the return spring may be increased or decreased by attaching the spring end to the alternate hooks provided in the head channel.
When the screen is properly adjusted, it should close gently and latch when allowed to return from the half open postion.

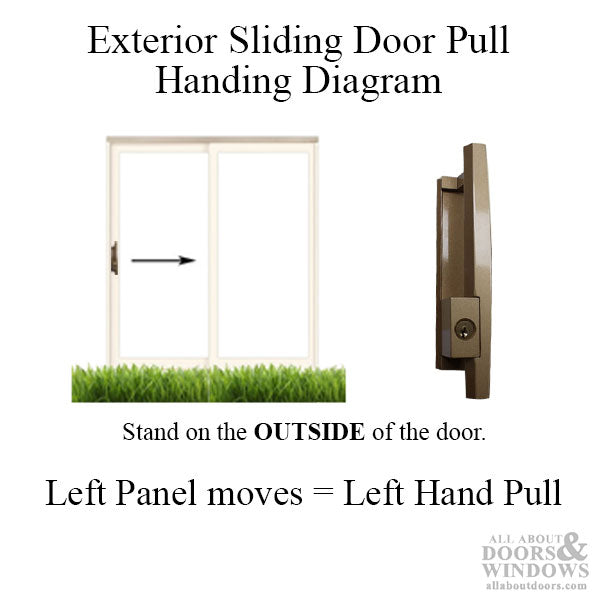

IMPORTANT NOTE: To determine the correct handing for your EXTERIOR PULL please carefully follow these steps.
Step 1: Stand on the OUTSIDE of your door.
Step 2: Determine if the left hand or right hand panel of your door moves.
If the right panel moves then you need a right hand pull.
If the left panel moves then you need a left hand pull.
GUIDE: How to Replace the Key Cylinder in a Pella Sliding Patio Door Handle
Priced and sold each.
Related Parts
9014001 Exterior Keyed Handle, LH
9014002 Exterior Keyed Handle, RH
9014013 Exterior Non-keyed Handle, Non-handed
9014014 Interior Handle, Non-handed (thumbturn not included)
9014018 Thumbturn for LH doors
9014019 Thumbturn for RH doors
