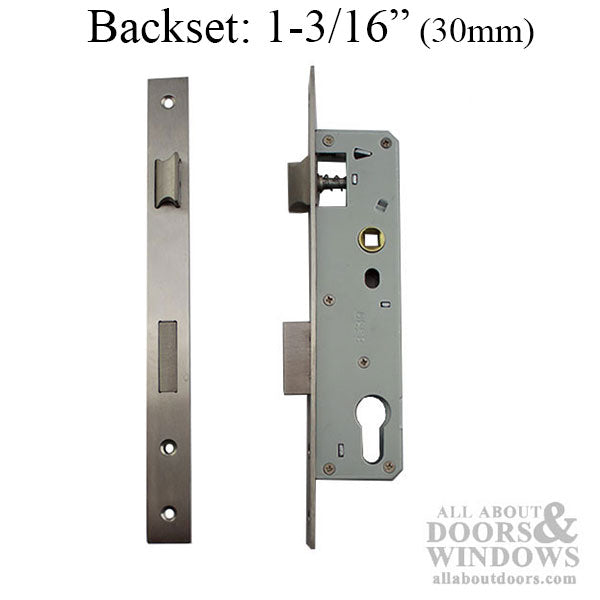

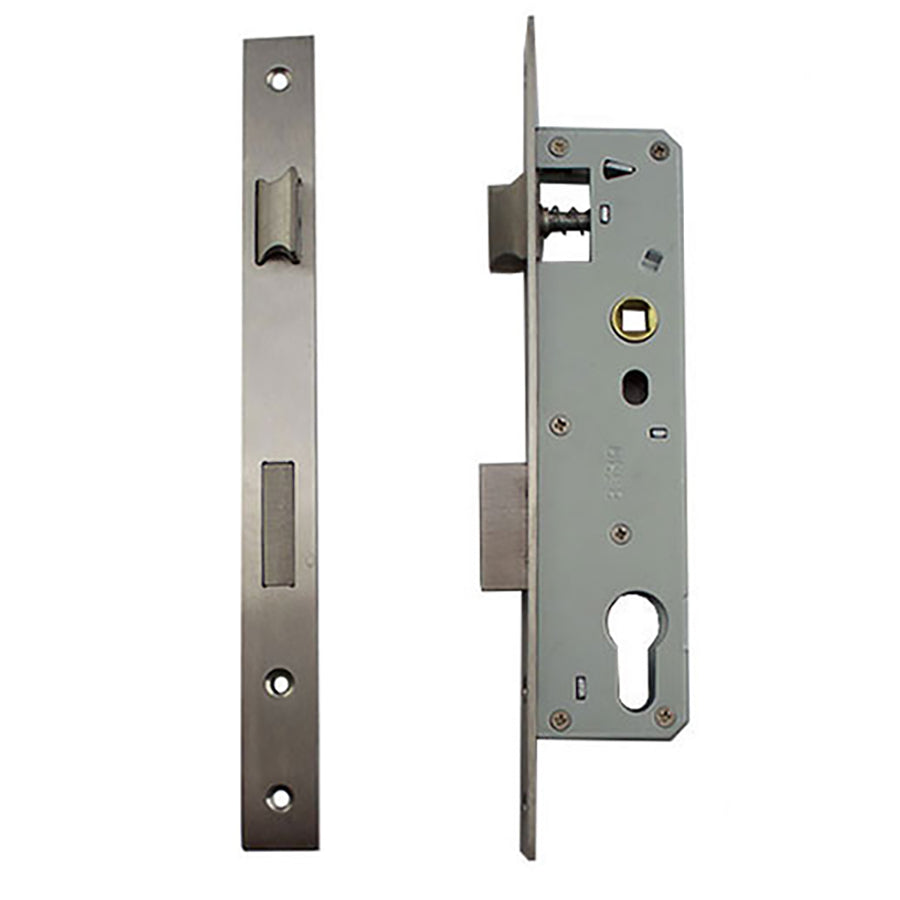

Slim line storm door mortise lock with 1-3/16 inch (30 mm) backset.

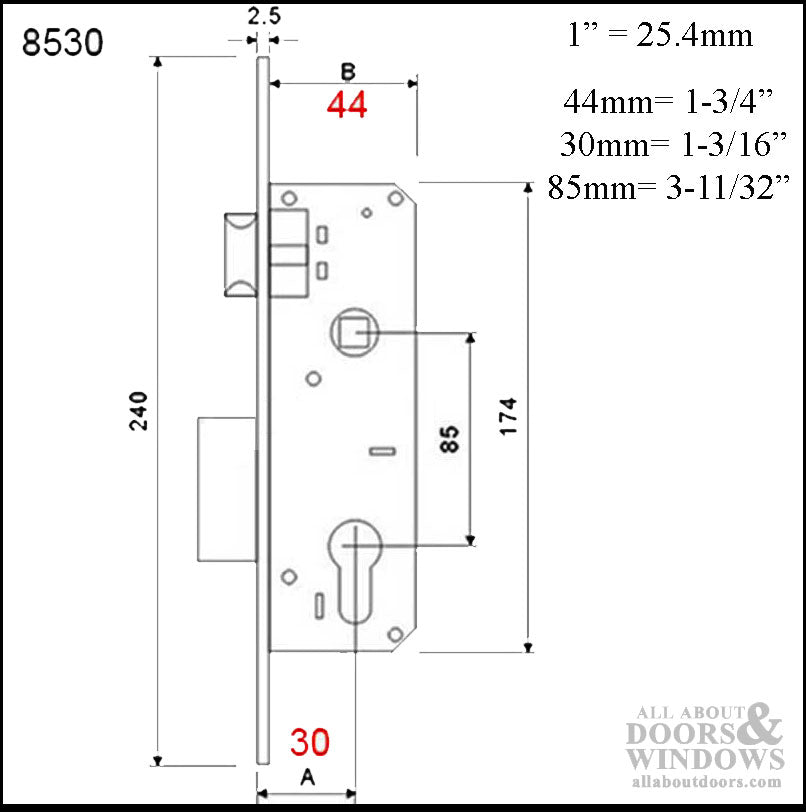

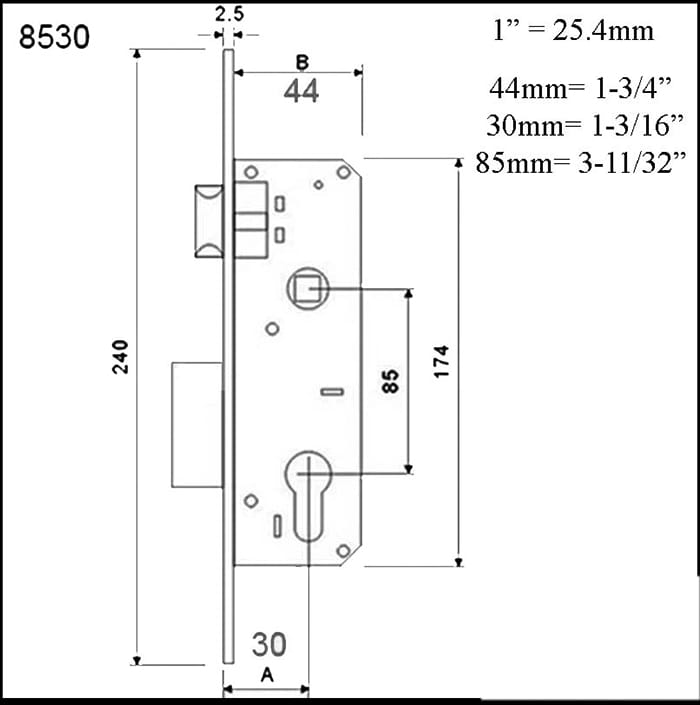

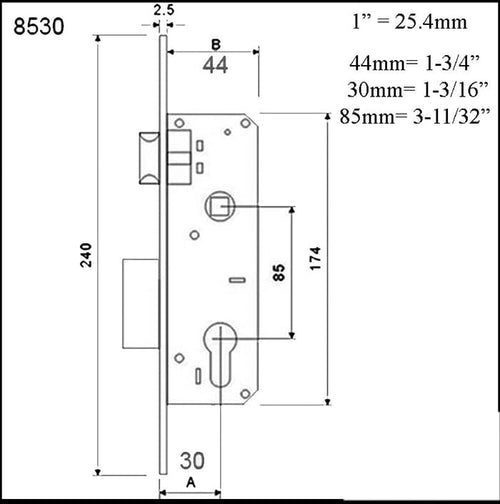

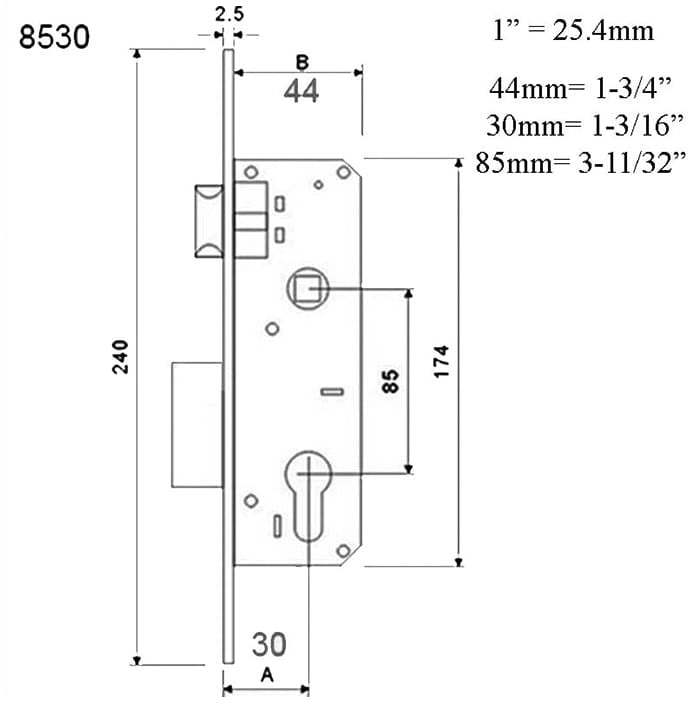

Model 8530
Faceplate Measures: 1 inch (25 mm) by 9-7/16 inch (240 mm)
Face Plate Color: Silver
Screw hole Spacing: 8-5/16 inches (210 mm)
Backset: 1-3/16 inch (30 mm)
Deadbolt Throw: 1/2 inch (12.7mm)
Handle PZ: 3-11/32 inch (85 mm)

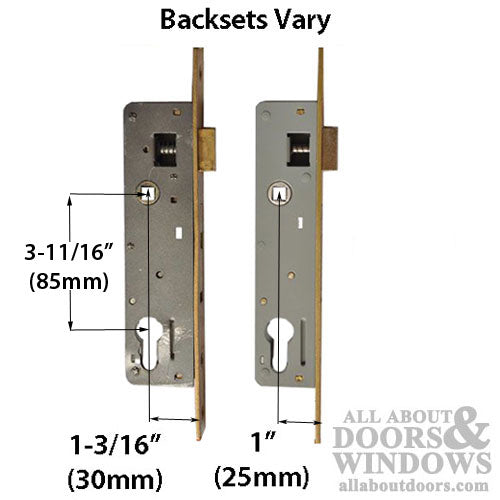

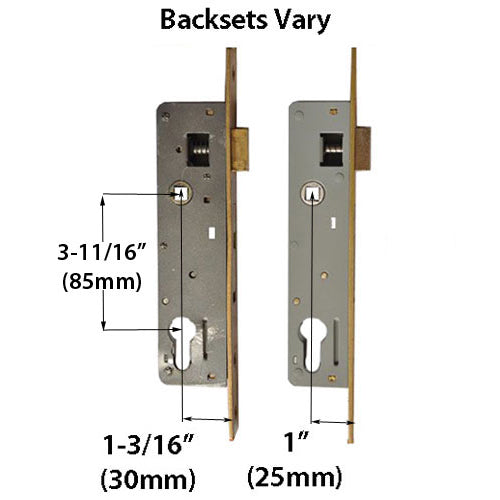

Backset is measured from the front of faceplate to center of Handle / cylinder hole
Can reverse latch by loosing screw behind until it spins the latch, then tighten into place.

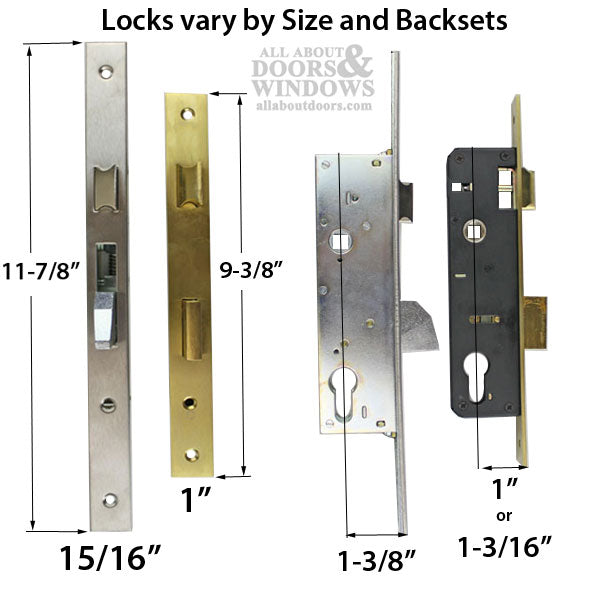

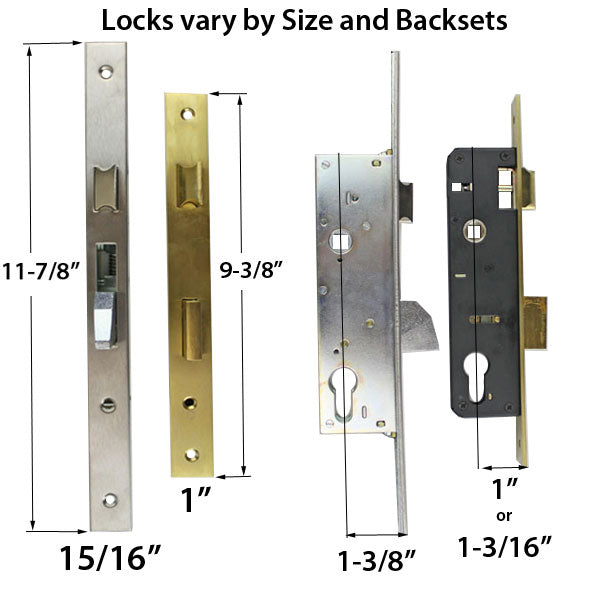

Replaces CEL, KFV, Tefco and Marks with 1-3/16 inch (30mm) Backsets
Markings: Made in China
The deadbolt latch may not match exactly with older styles, but adjustments can be made.
Priced and sold each.
Related Lock Hardware:
301080 - 1 inch (25 mm) Backset on , Complete Mortise Lock Handles
301100 - 1-3/16 inch (30 mm) backset, Mortise lock only
301103 - 1-3/8 inch (35mm) Mortise Lock Case only
301104 - 1.0 inch (25mm) Marks Slimline lock body only
