Slimline Storm Door Mortise Lock and Strike Plate 35mm Backset

Slimline Storm Door Mortise Lock and Strike Plate 35mm Backset - Slimline Storm Door Mortise Lock and Strike Plate 35mm Backset
Slimline Storm Door Mortise Lock and Strike Plate 35mm Backset - Slimline Storm Door Mortise Lock and Strike Plate 35mm Backset
Slimline Storm Door Mortise Lock and Strike Plate 35mm Backset - Slimline Storm Door Mortise Lock and Strike Plate 35mm Backset
Slimline Storm Door Mortise Lock and Strike Plate 35mm Backset - Slimline Storm Door Mortise Lock and Strike Plate 35mm Backset

Slimline Storm Door Mortise Lock and Strike Plate 35mm Backset

Part Number:301109 Price: $89.95

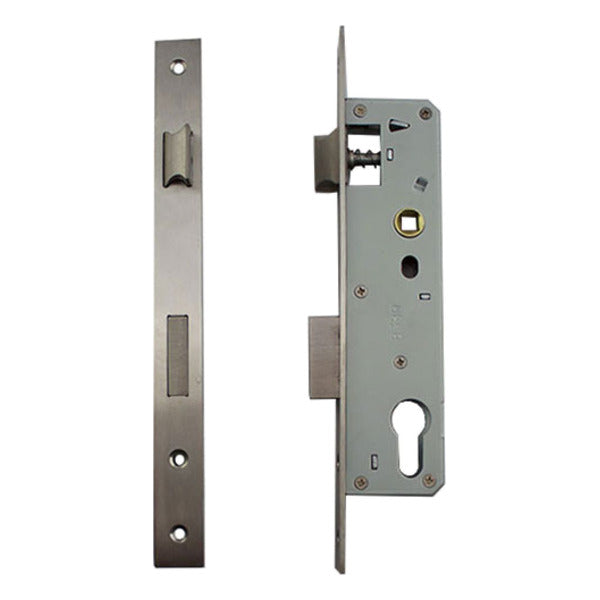

Slimline storm door mortise lock with 1-3/8 inch (35 mm) backset.

  • Model 8530

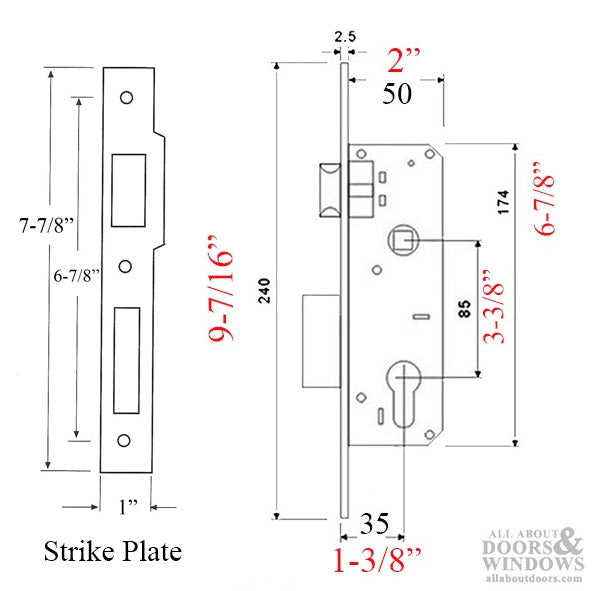

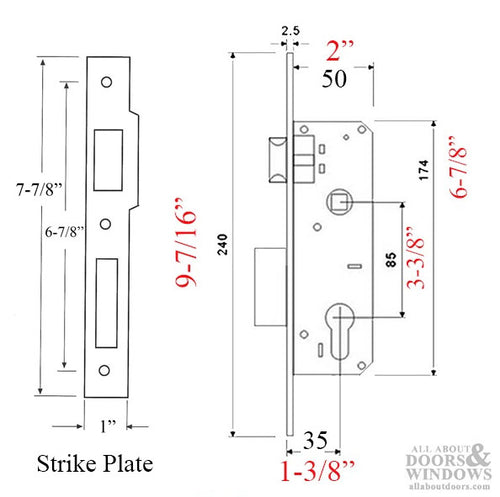

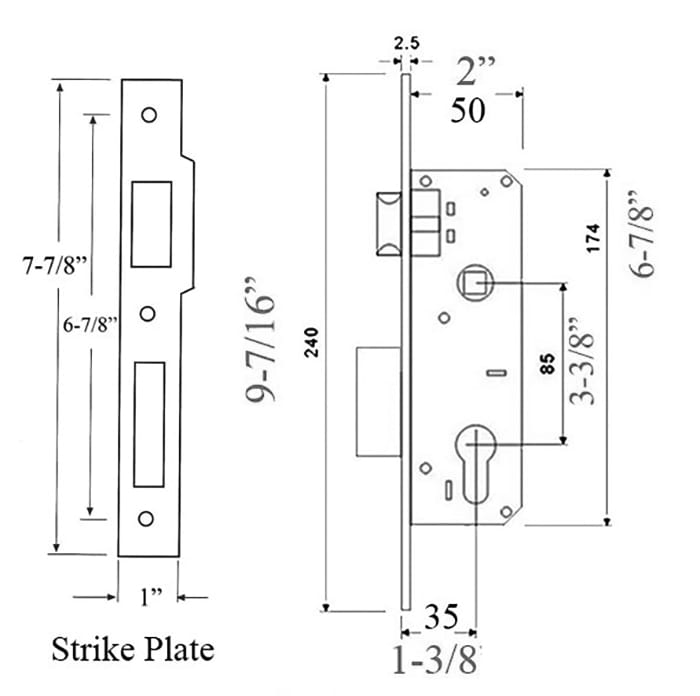

  • Faceplate Measures: 1 inch  (25 mm) by  9-7/16 inch (240 mm)

  • Face Plate Color: Silver

  • Screw hole Spacing:  8-5/16 inches (210 mm)

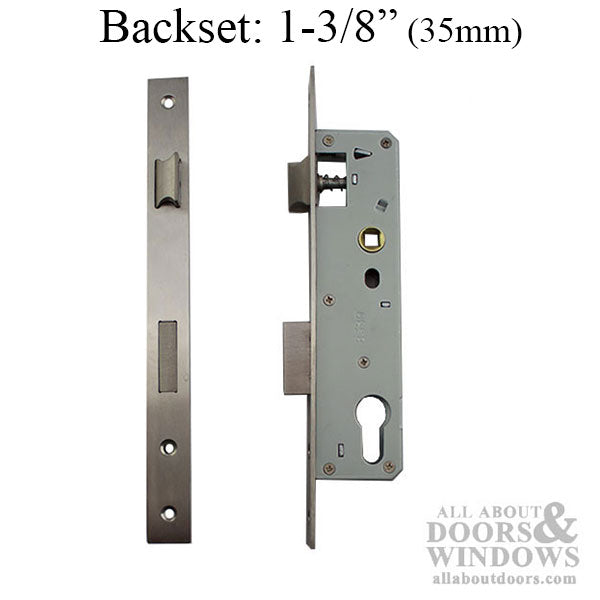

  • Backset: 1-3/8 inch (35 mm)

  • Deadbolt Throw: 1/2 inch (12.7mm)

  • Handle PZ: 3-11/32 inch (85 mm)

  • Priced and sold each.

See Additional Information for more details.

<p style="line-height:normal;margin:0px;"><font face="times new roman">The backset is measured from the front of faceplate to center of the handle/cylinder hole.</font><br /> </p><p style="line-height:normal;margin:0px;"><font face="times new roman">Can reverse latch by loosing screw behind until it spins the latch, then tighten into place.</font><br /> </p><p style="line-height:normal;margin:0px;"><font face="times new roman">Replaces CEL,  KFV, Omnia, Tefco and Marks with 1-3/8 inch (35mm) Backsets</font></p><p style="line-height:normal;margin:0px;"> </p><p style="line-height:normal;margin:0px;"><font face="times new roman">The deadbolt latch may not match exactly with older styles, but adjustments can be made. </font></p><p style="line-height:normal;margin:0px;"> </p><p style="line-height:normal;margin:0px;"><font face="times new roman">Markings: Made in China</font></p>
