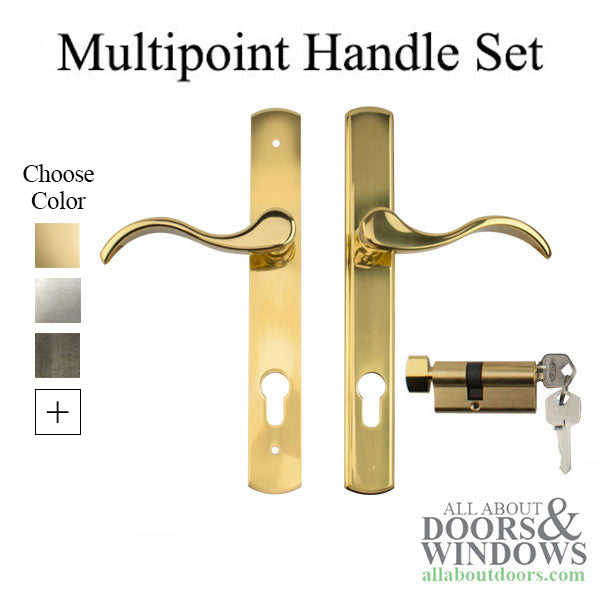

Multipoint Lock Handle Set Trim - Choose Color

Part Number:305027
COLOR: - Brushed/Satin Nickel
Please note, this product has been discontinued.

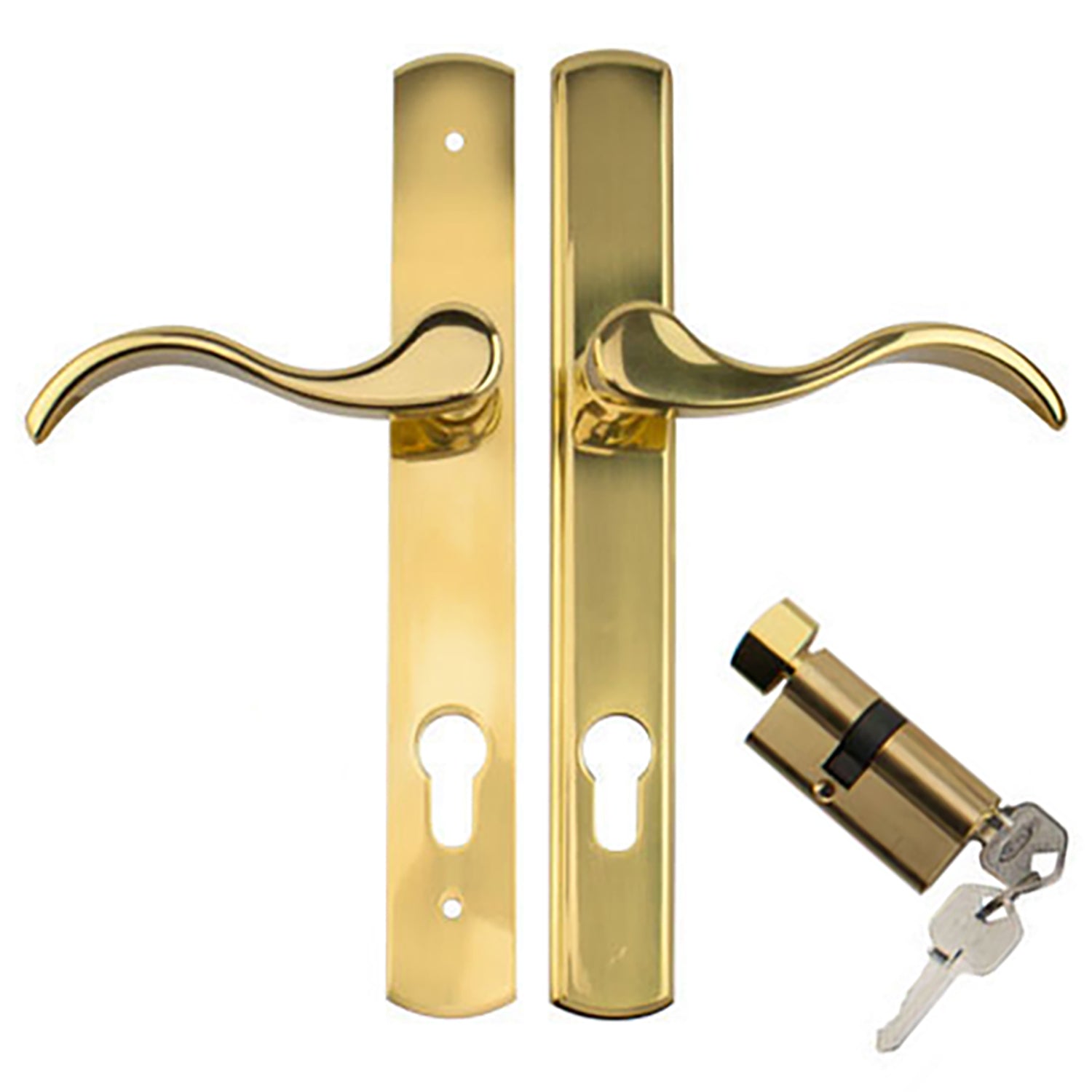

This Handle Set Trim is Used on the Larson Secure Elegance Storm door with Multipoint Lock (MPL) The lock mechanism might say Rockwell or Larson, has 2 hooks and spring latch in center. ( 2-point lock is NOT included.)

Manufacture: Larson Storm Doors and Windows
Door Thickness: 1-1/2 -1-3/4 inch
Handle PZ: 3-5/8 inch (92mm)
Cylinder Type: Euro Profile
Keyway: Kwikset 5 pin KW1
Rekeyable: Yes, hex screw caps on top
Lever Length: 4-5/8"
Lever Projection: 2"
Faceplate Length: 9-3/4"
Faceplate Width: 1-5/8"
Inside Plate: Flat, 1/16 inch thick
Outside Plate : Raised, 3/8 inch thick
Material: Brass

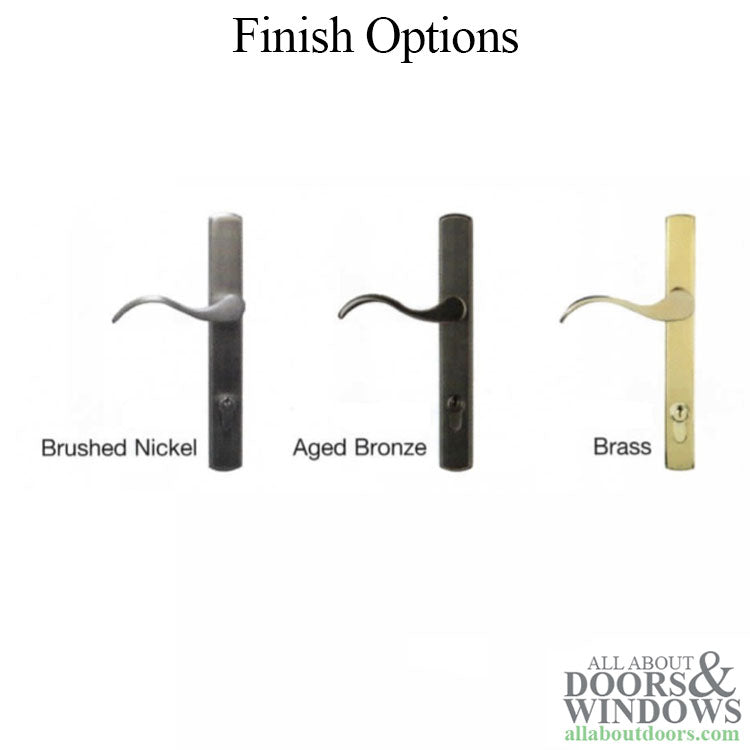

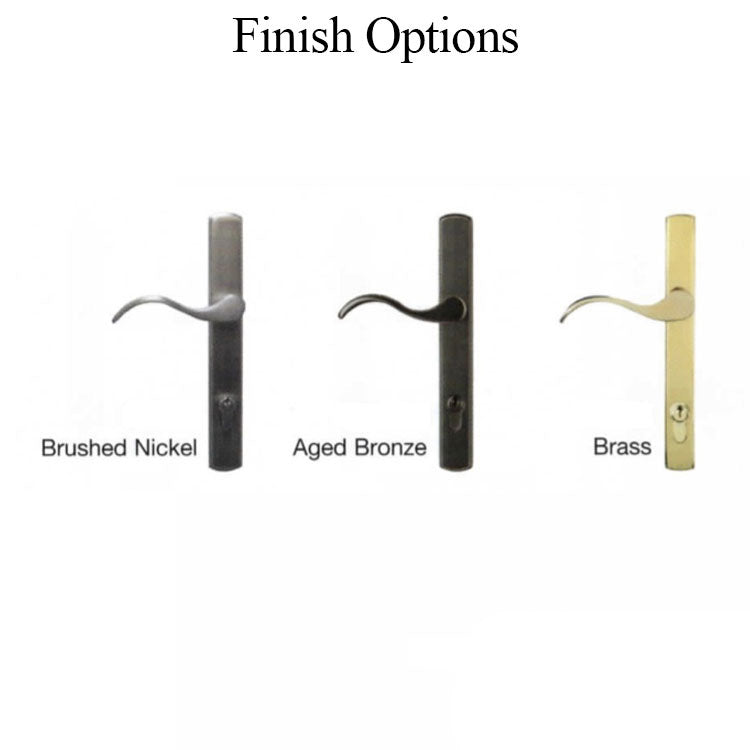

Colors: Polished Brass, Brushed Satin Nickel, Aged Bronze
Screw Spacing on Plate: 7-3/4 inch
Handle set Screws: 10-32 x 1-3/4 inch Pan head
Spindle: 5/16 Diameter, 3-1/2 inch Length
Cylinder Fixing Screw: # 10-32 x 1-1/2 inch

Can be used on the following Larson door models:
349-20
349-15
349-17
96-MV

Related Larson Hardware:
305017 - 2-point Hook Lock

NOTE: This lock will work with a HOPPE MPL, However depending on existing hardware and screw hole locations, it may be necessary to drill new holes or enlarge existing ones.
Hoppe 216N or 374N Plate - Top to Bottom screw hole spacing: 7-7/8 inch ( 1/8" difference)
