Blemished Storm Door Lever Handle With Keyed Deadbolt Georgian Storm Door Handle - Black

Part Number: 302003-BLEM-SCUFFS Price: $45.76
BLEMISHED ITEM: - Scuffs / Scratches

This item is considered blemished and may include but is not limited to slight scuffs, scratches and/or missing components such as screws.

Blemished items are priced accordingly and are sold as-is.

No returns, refunds or exchanges.

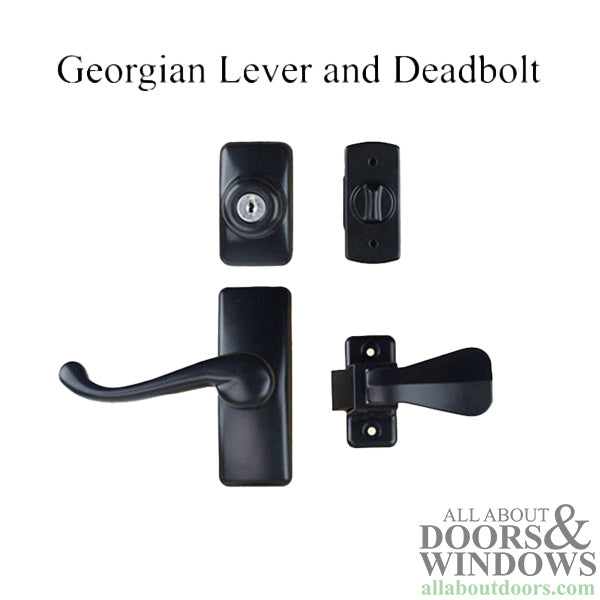

Georgian Storm Door Lever Handle

With Keyed Deadbolt, Two Keys

Replaces Standard hardware (three hole pattern with 1-3/4 inch screw hole spacing).

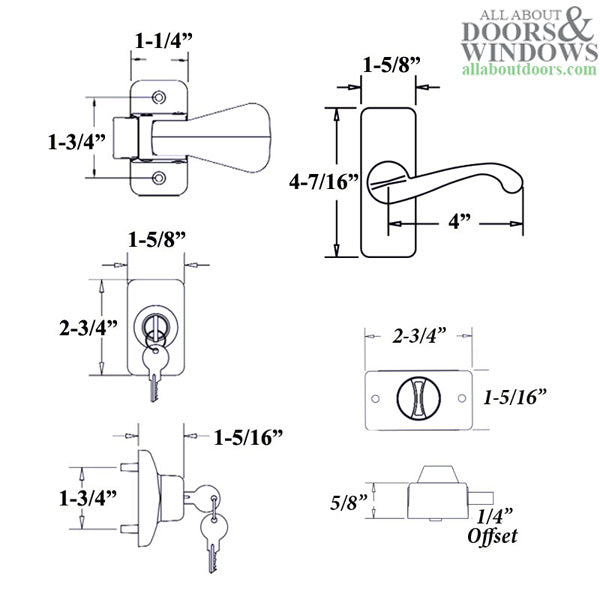

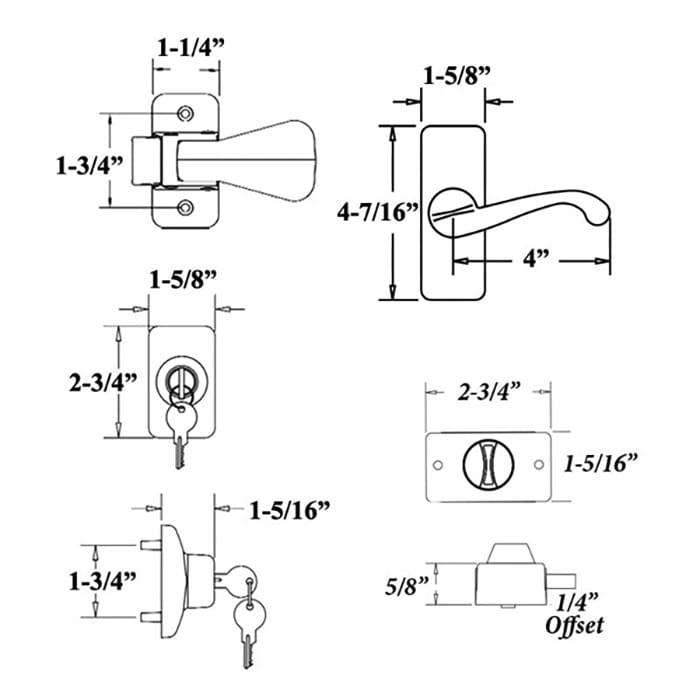

  • Door Thickness: 3/4 inch, 1 inch, or 1-1/4 inch thick doors
  • Deadbolt Offset: 1/4 inch from base (Note: Deadbolt offset height varies. There are three height variations: 1/4 inch, 1/2 inch, and 3/4 inch. We do not carry the 1/2 inch variation.)
  • Screw Hole Spacing: 1-3/4 inch; deadbolt and lever handle.
  • Standard Lock Spacing: 7-1/4 inch from top screw on deadbolt to bottom screw on lever handle - will fit other hole spacing.
  • Minimum Spacing: 5-1/4 inch from top screw on deadbolt to bottom screw on lever handle (See additional images).
  • Material: Zinc base metal, same finish on inside and out.
  • Color/Finish: Black

Guide: How to Install Georgian Deadlock and Latch

<p>
<strong>We do not stock the deadbolt with 1/2 inch offset. </strong>
</p>
<ul>
<li>
302003 (This item): 1/4 inch offset
<br />
Fit doors from 3/4 to 1-1/4 inch thick
</li>
<li>
301053 (See <i>Related Items</i> below): 3/4 inch offset
<br />
Fit doors from 3/4 to 1-1/4 inch thick
</li>
</ul>
