Storm Door Mortise Lock body, Pella, Larson, Wright, 7/8" Backset - Choose Color

Part Number: 302031-AB
COLOR: - Antique Brass
Please note, this product has been discontinued.

This part has been discontinued and is limited to existing inventory or no longer available by itself.
This is now available as a full kit with included trim (handleset) here: 302035: Lock + Handleset Kit

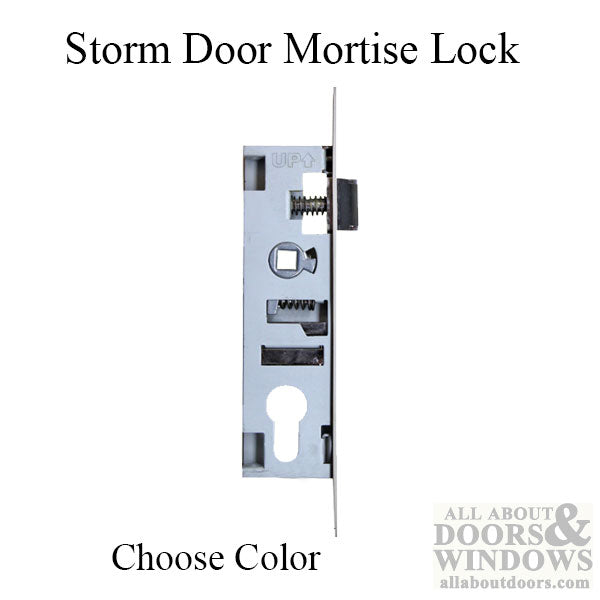

This is a Storm Door Mortise Lock body.
Commonly used on Pella, Larson and Wright storm doors, as well as others.

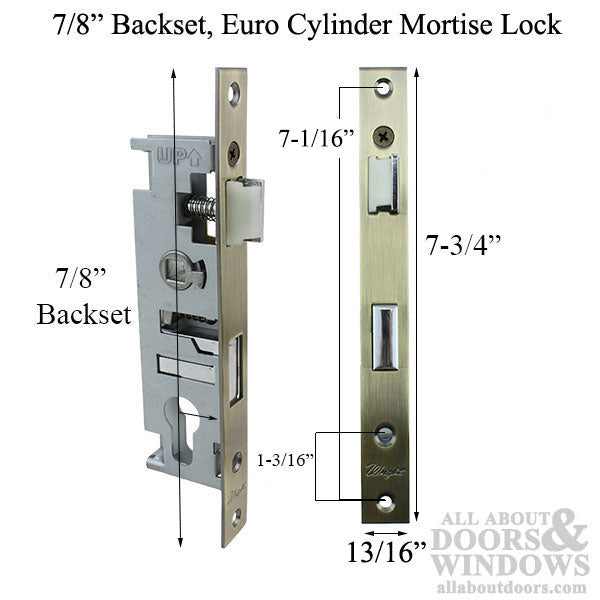

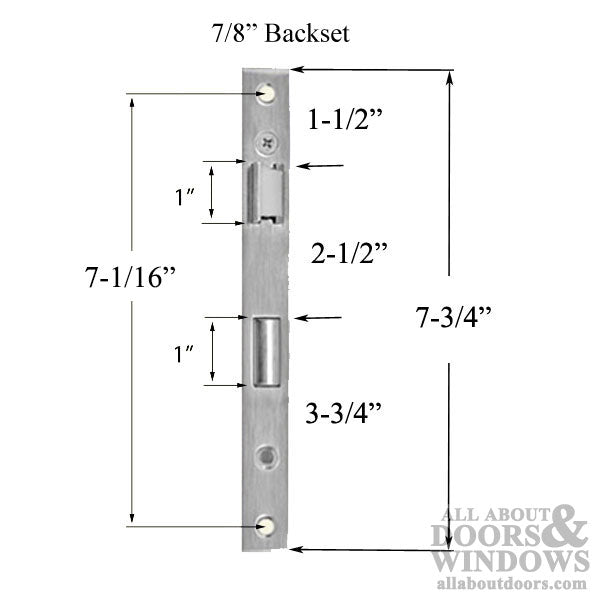

Measurements:
7/8'' Backset
7-1/16" Screw Hole Spacing
7-3/4'' Overall Length
13/16" Faceplate Width
15/16" Spring latch
1-1/16" Deadbolt

Available Colors: (limited inventories)
Tuscan Bronze

Contents:

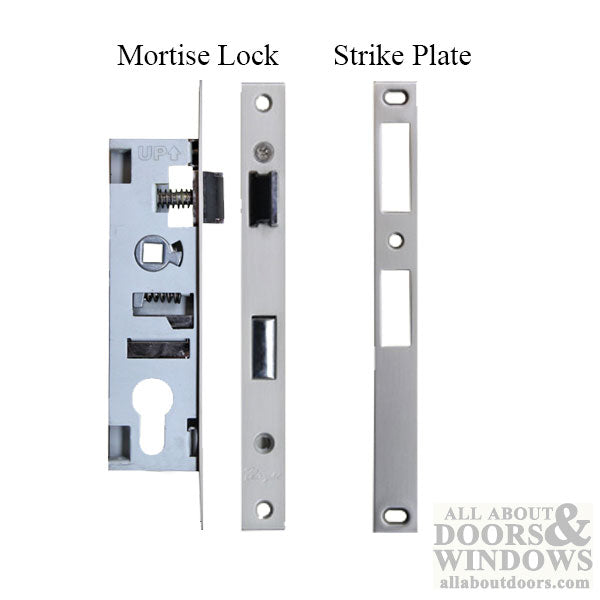

1 Mortise Lock Body
1 Mortise Lock Strike Plate

Please review additional images

This is not a complete storm door hardware kit.
For a complete Storm Door Mortise Lock and Handle Set see 302035
This item is limited to existing inventory.
