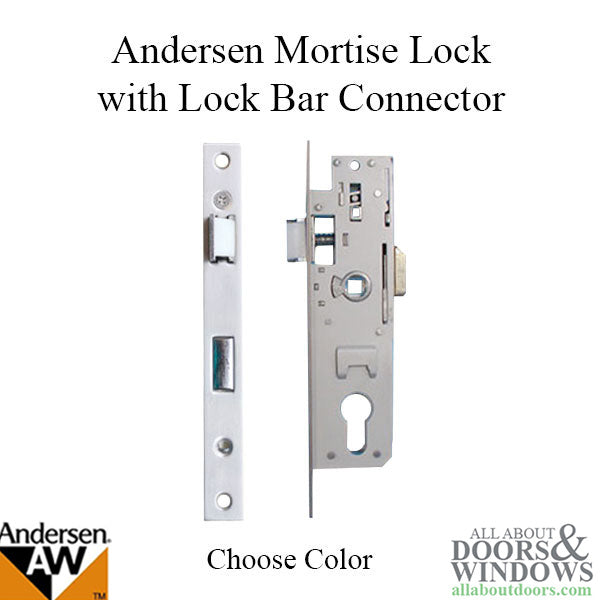

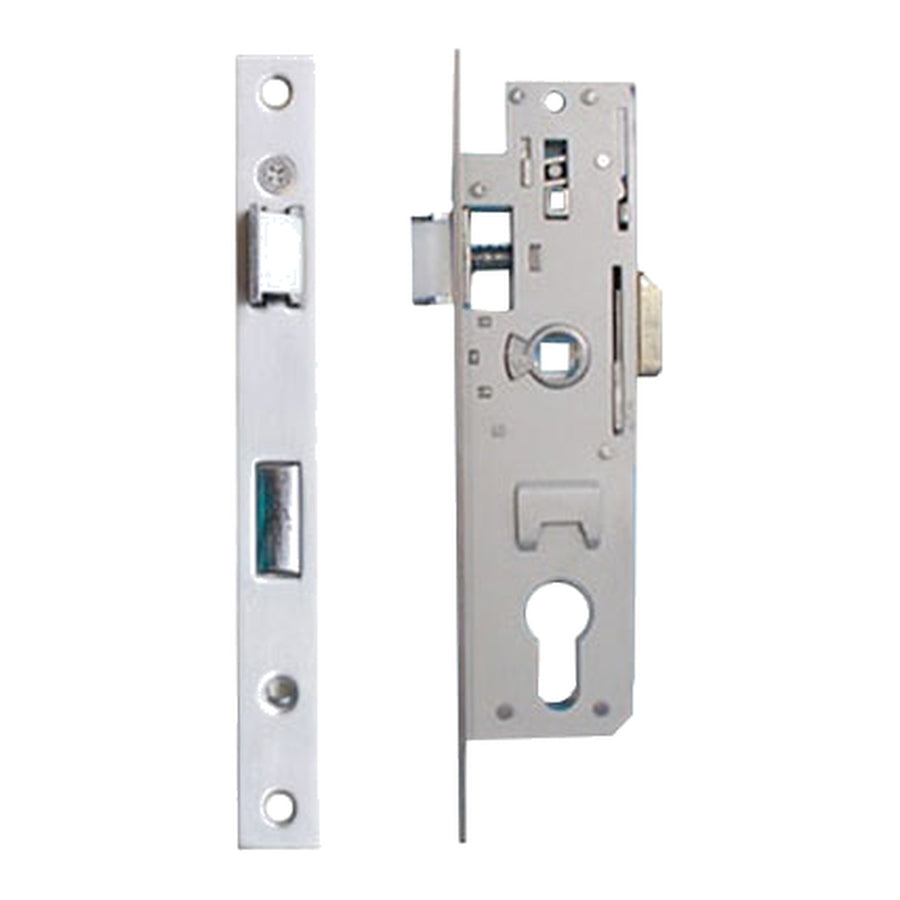

Storm Door Mortise Lock with Lock Bar Connector

Part Number: 306201 Price: $0.00
This item is no longer available.
Replace with complete handle set -  please see 302047

Andersen / Emco Contemprary Quick Change storm door Mortise Lock with Lock Bar.
This design can be used on a 3000 or 4000 series storm door made by Andersen / EMCO

Special Features:
Lock Bar Connector on lock case with Slide Thumb Button on inside plate.
This design uses a Euro style profile key cylinder 302054 or 302055 (not included)

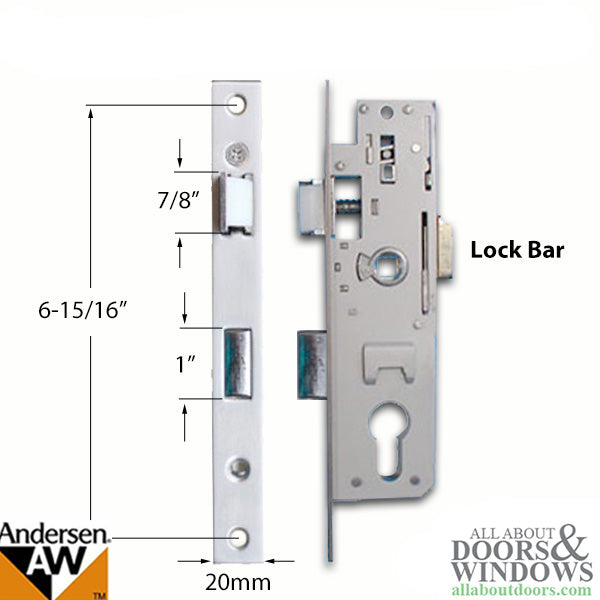

Mortise Lock Body Measurements:
Installation screws: 6-7/8 inch

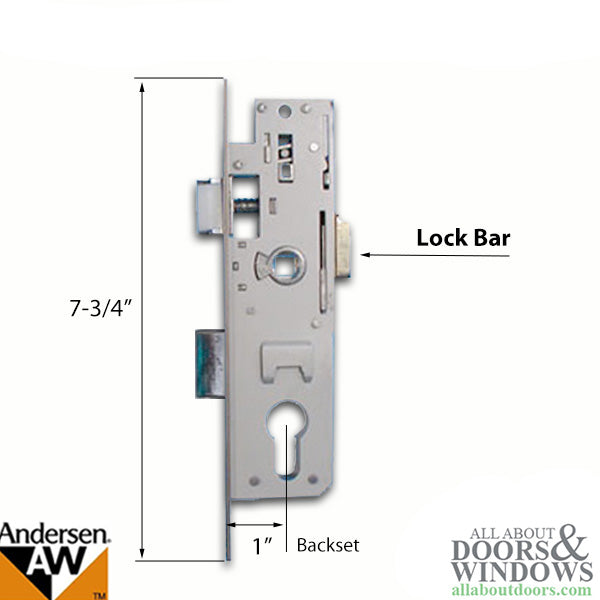

Backset: 1 inch (standard is 7/8 )
Backset is measured from edge of mortise lock to center of handle
Faceplate Length: 7-3/4 inch
Faceplate Width: 7/8 inch (20mm)
Used on 1-1/2 inch doors.

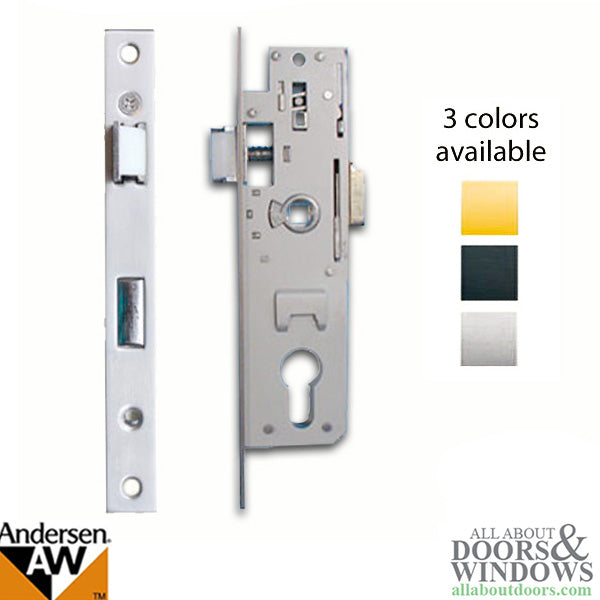

Available in 3 Colors / Finishes:
Polished Brass, Brushed/Satin Nickel and Oil Rubbed Bronze

To reverse the handing of this Mortise Lock, simply remove the Faceplate and rotate the Spring Latch 180 degrees, then reconnect the faceplate.
To purchase this Mortise Lock as a complete Mortise Lock Kit with Handles and Key Cylinder, 302047
