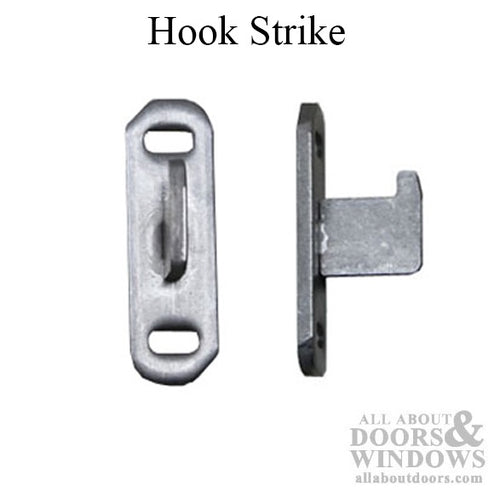

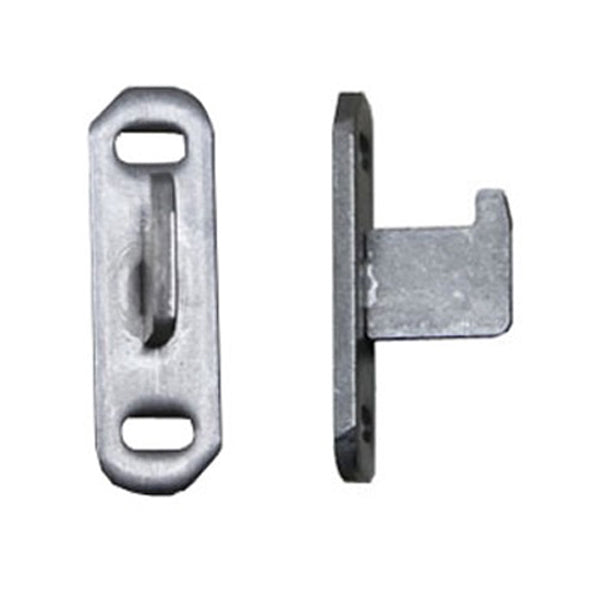

Strike Hook, Marvin Sliding Door 2 -3 point lock

Part Number:11860041 Price: $12.92

Marvin Ultimate French Sliding Door 2-3 point lock Strike hook

Uses on Marvin sliding door with 2 point or 3 point lock

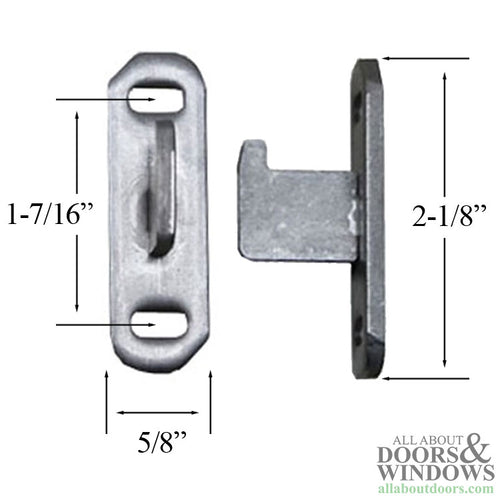

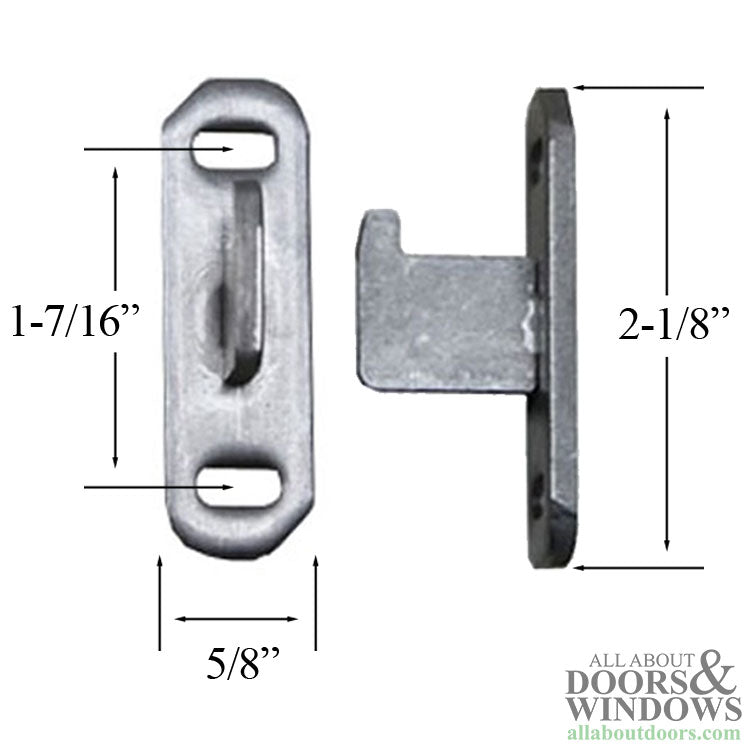

Hook Screw Holes: 1-7/16 inch
Hook Projection: 3/4 inch from base
Base thickness: 1/8 inch
Overall Projection: 15/16 inch
Base width: 5/8 inch
Base Length: 2-1/8 inch

Priced and sold as each

NOTE:
The center jamb strike is attached with machine screws and T-Nut that is installed in wood jamb.
Other strikes use # 8 flat head wood screws.

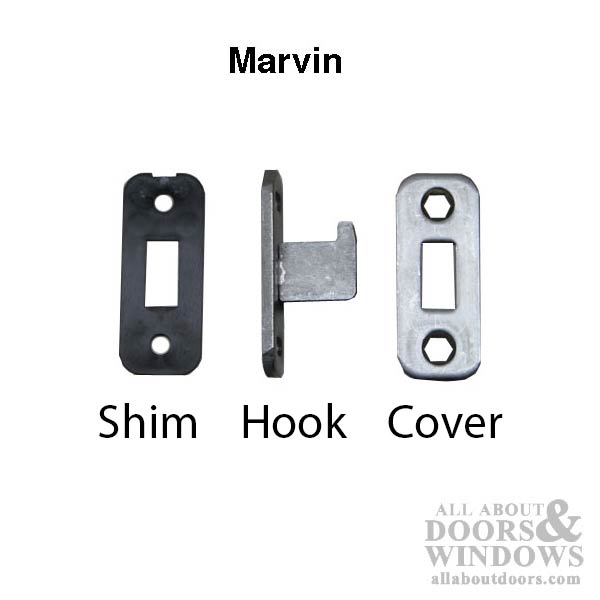

Related Marvin Parts:
11860042 - Cover plate for strike
18900501 - Shim
