This G-U strike has been discontinued and replaced with New style # 6-38733-01-0-1
The new Strike Length: 9-1/8 (232mm) with ends or 8-1/2 (216.5mm) metal only
Compared to old strike 9-5/8 inch overall length

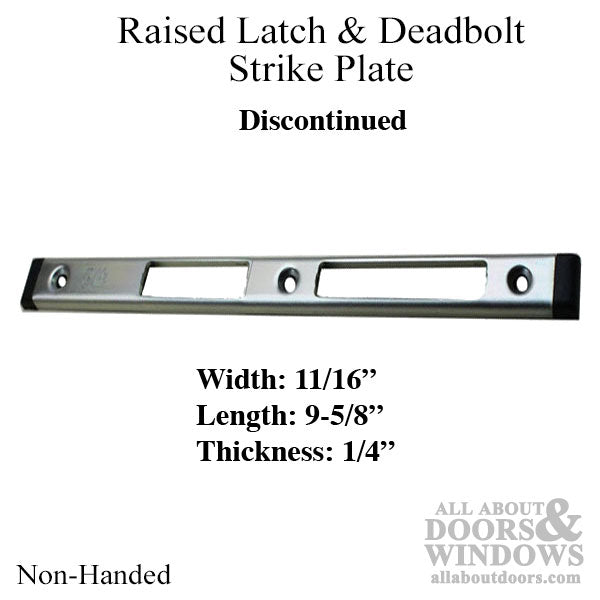

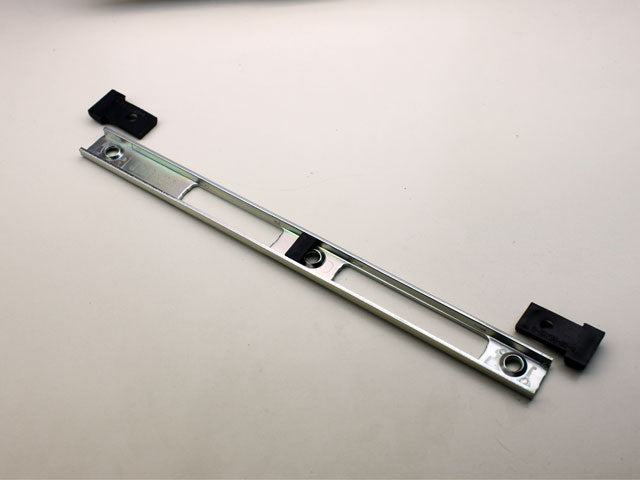

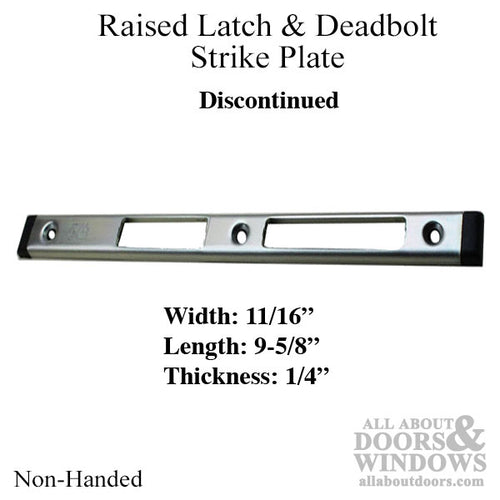

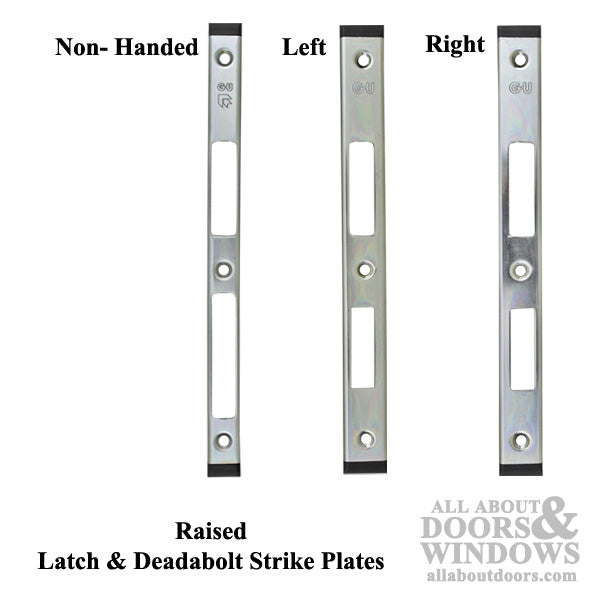

Latch & Deadbolt Strike, 1/4 inch Raised with Plastic ends
Used by G-U Ferco on Vinyl or Fiberglass doors

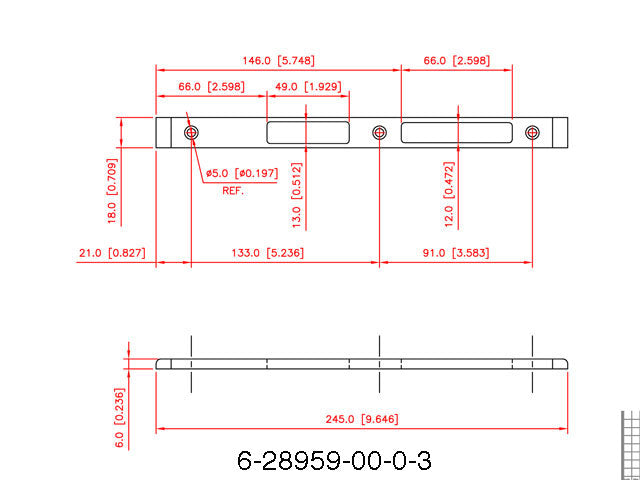

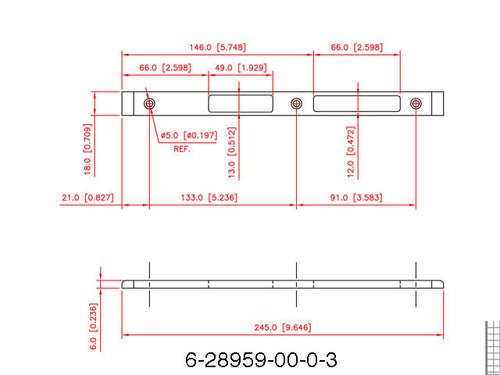

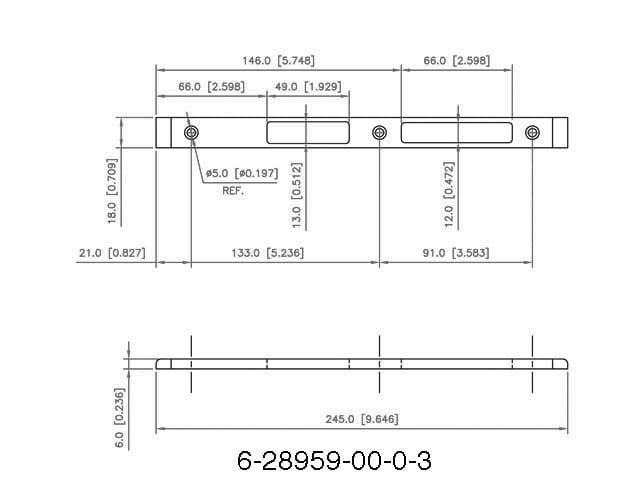

6-28959-00-0-1, Old Style Specifications:
Width: 11/16 inch (18mm)
Length: 9-5/8 (245mm) with ends or 8-15/16 (227mm) metal only
Thickness: 1/4 inch (6mm)
Screw Holes: 8 inch top to bottom
Markings on G-U Strike:
Metal Strike Plate: DC 01 ; 937878000
Plastic End Caps: 9-37735-01-0
Plastic Middle Support: 9-37827-01
