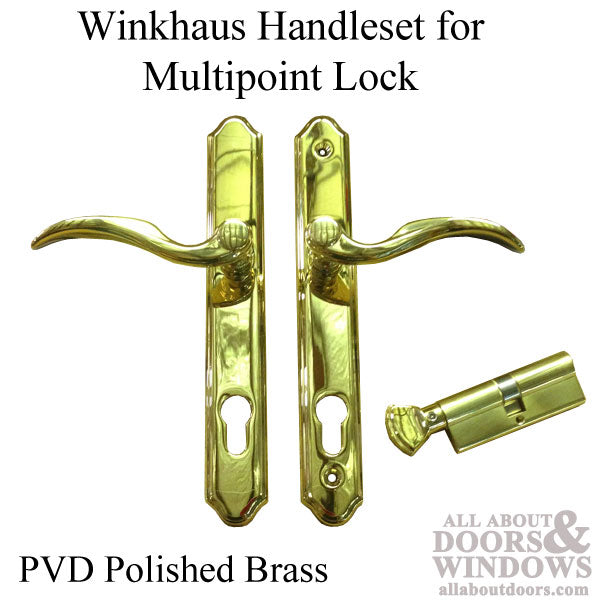

Winkhaus multi-point lock handleset for 2-1/4 Inch thick active door

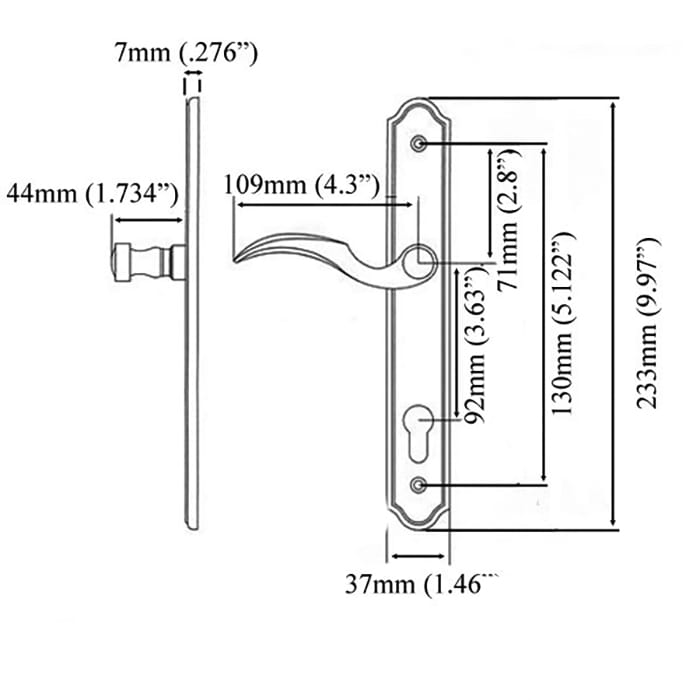

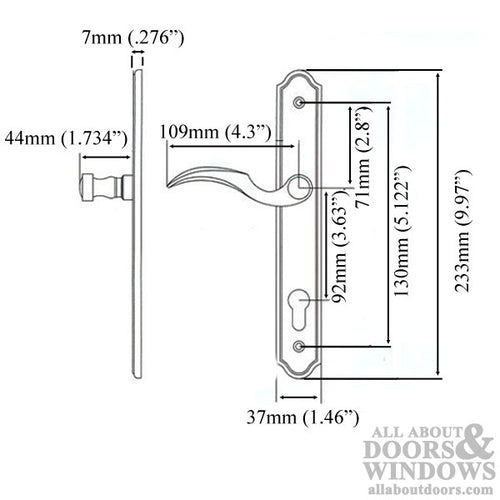

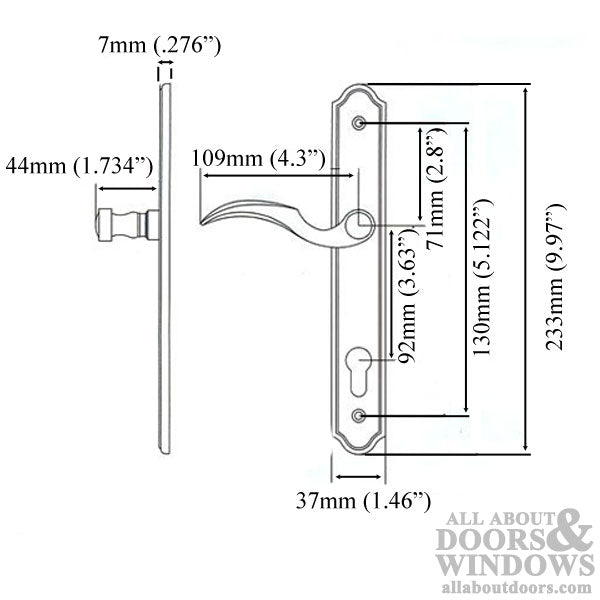

Escutcheon Plate: Traditional Style, Screw holes spaced at 7-7/8 inches (201mm)
Traditional style escutcheon plate measures 1-7/16 x 9-15/16 inches (37x253mm)
Door Thickness: Fits 2-1/4 inch ( 57mm)
Handle Design: Fontana Curved lever

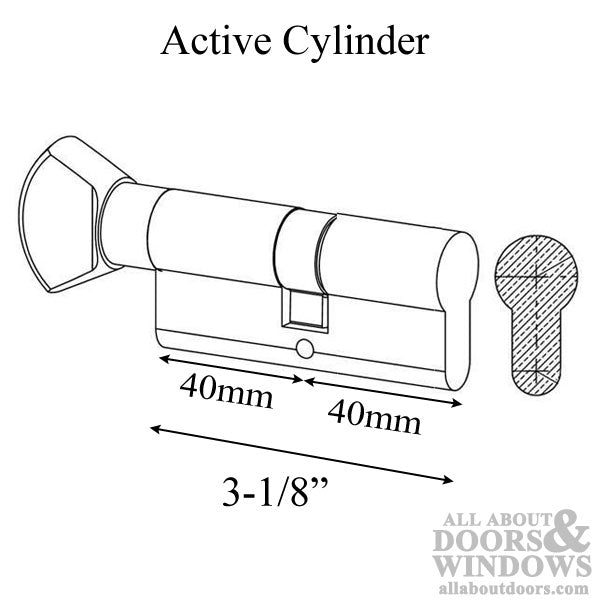

keyed cylinder: Schlage SC-1 key, 5 pin rekeyable
Cylinder Length: 3-1/8 inch (40/40mm)
Euro Groove: Centered in door
Finish / Color: PVD Bright Brass (No Tarnish)
Escutcheon Plate: Traditional Style, Screw holes spaced at 7-7/8 inches (201mm)
Traditional style escutcheon plate measures 1-7/16 x 9-15/16 inches (37x253mm)
Door Thickness: Fits 2-1/4 inch ( 57mm)
Handle Design: Fontana Curved lever
keyed cylinder: Schlage SC-1 key, 5 pin rekeyable
Cylinder Length: 3-1/8 inch (40/40mm)
Euro Groove: Centered in door
Finish / Color: PVD Bright Brass (No Tarnish)
