Hoppe Manual Swing Hook 16mm Middle Extension with Overall Length of 24.09 Inches
Use the arrows or swipe left to view all images for this product
Hoppe Manual Swing Hook 16mm Middle Extension with Overall Length of 24.09 Inches
Part Number: $110.66HOPPE 16mm HLS9000 manual middle extension with one Swing Hook.
Application: Middle Extension used with upper shootbolt extension

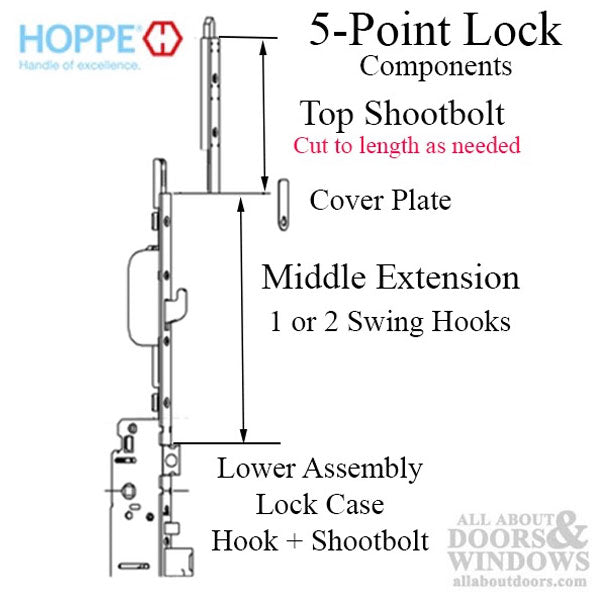

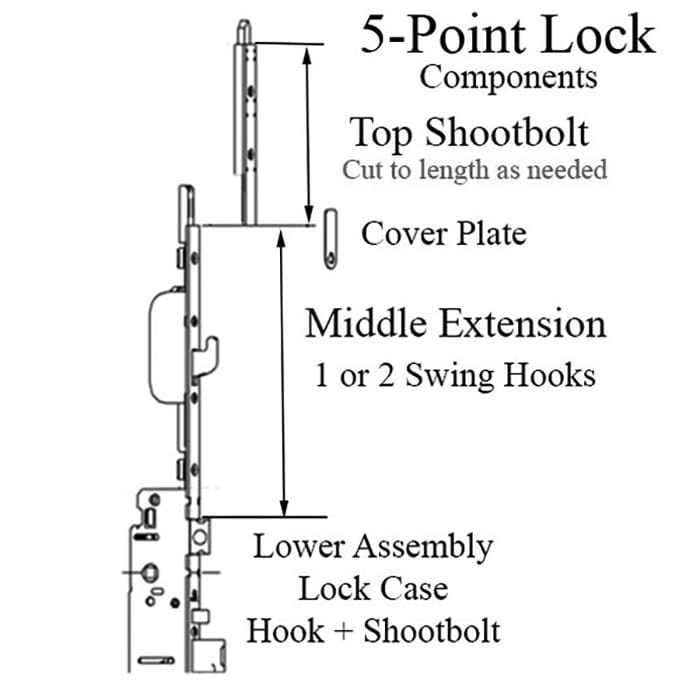

The middle extension is attached to the lower assembly just above the springlatch. A shootbolt extension is attached to the top of the middle extension to complete the multipoint lock.
Overall Length with single hook: 73.50" (1867mm) to maximum 98.11" (2492mm)
Locking Type: 1 swing hook

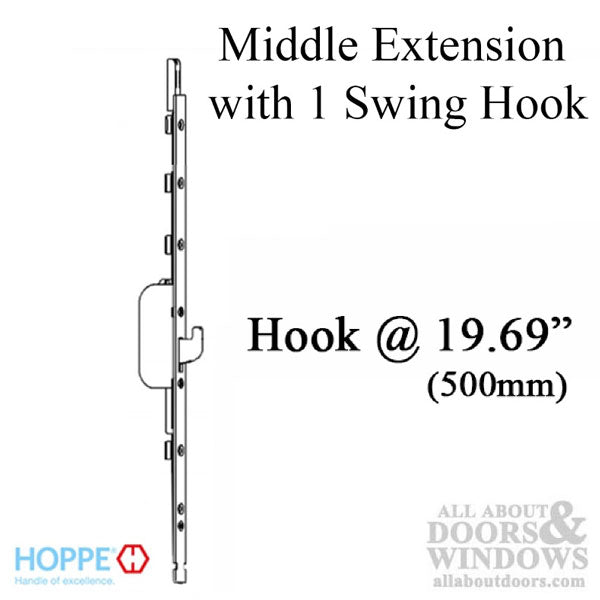

Hook Position: 19.69 inches (500mm) square end
Hook Projection: 3/4 inch (19.5mm)
Face Plate Width: 5/8 inch (16mm)
Extension Length: 24.09 inches (612mm)
Maximum Cutoff: None
Number of Screws: 4 Stainless Steel
NOTE:
There are 5 middle extensions used with various top extensions to accommodate door panel heights from a minimum of 73.50 inches (1867mm) to a maximum of 137.48 inches (3492mm)
HOPPE 16mm HLS9000 manual middle extension with one Swing Hook.
Application: Middle Extension used with upper shootbolt extension
The middle extension is attached to the lower assembly just above the springlatch. A shootbolt extension is attached to the top of the middle extension to complete the multipoint lock.
Overall Length with single hook: 73.50" (1867mm) to maximum 98.11" (2492mm)Locking Type: 1 swing hookHook Position: 19.69 inches (500mm) square end Hook Projection: 3/4 inch (19.5mm)Face Plate Width: 5/8 inch (16mm)Extension Length: 24.09 inches (612mm)Maximum Cutoff: NoneNumber of Screws: 4 Stainless Steel
NOTE:
There are 5 middle extensions used with various top extensions to accommodate door panel heights from a minimum of 73.50 inches (1867mm) to a maximum of 137.48 inches (3492mm)
