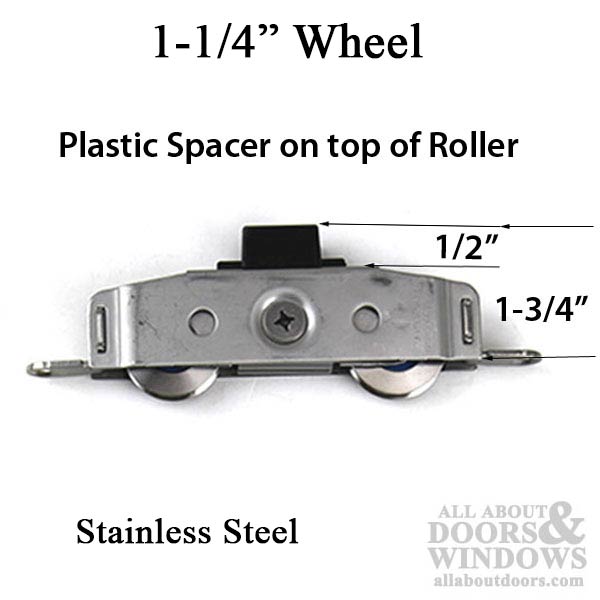

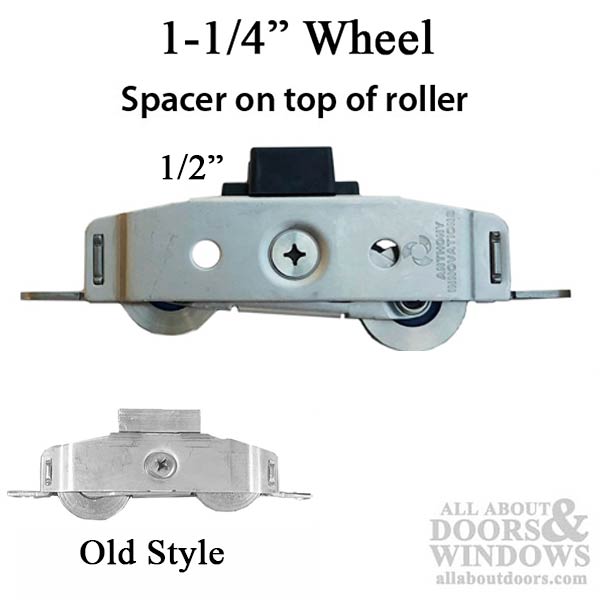

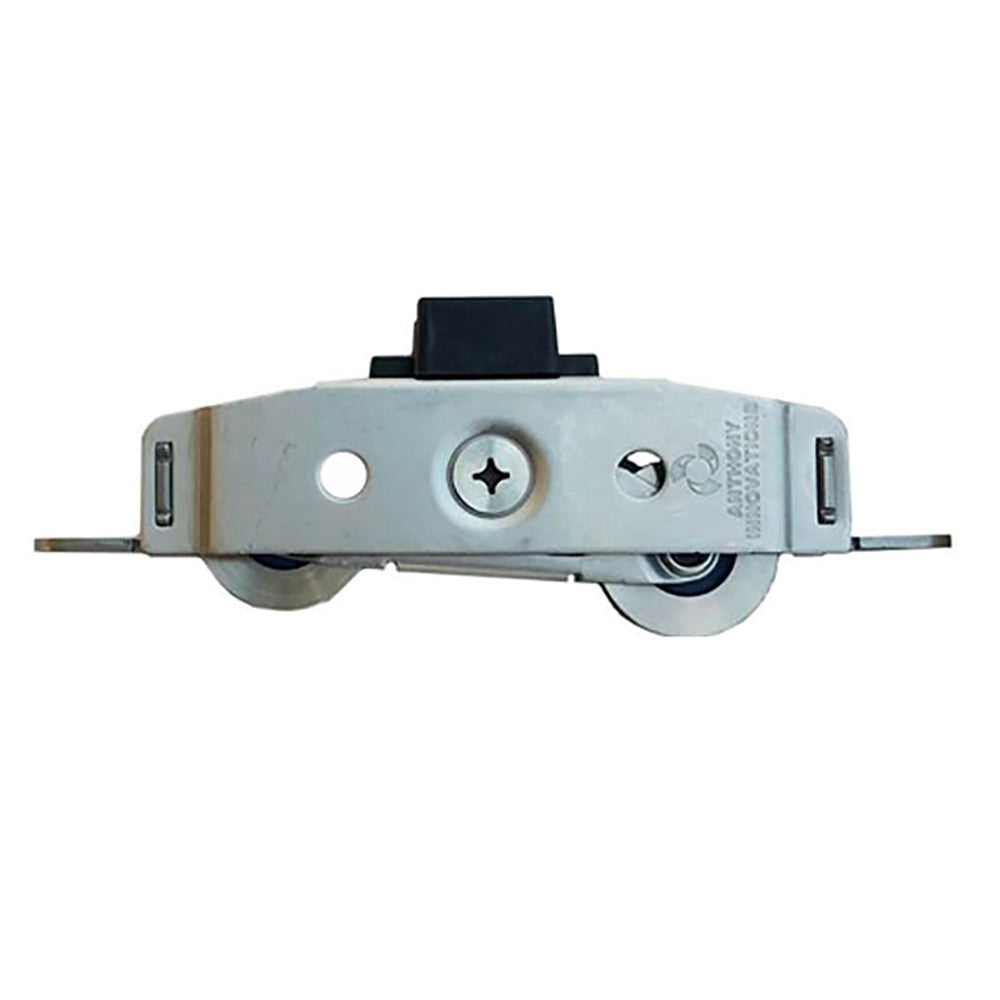

Milgard Classic Series Tandem Roller Assembly with 1-1/4 inch steel wheel
U-shaped spacer / Support filler
Mounted on top
Measuring 5/8 x 1-5/8 x 7/16 inch tall
Used on Milgard Classic series vinyl sliding patio door.
Replacement Specifications:
Application: Tandem Roller Assembly for Vinyl sliding patio doors
Special Characteristic: Plastic Spacer / filler mounted on top.

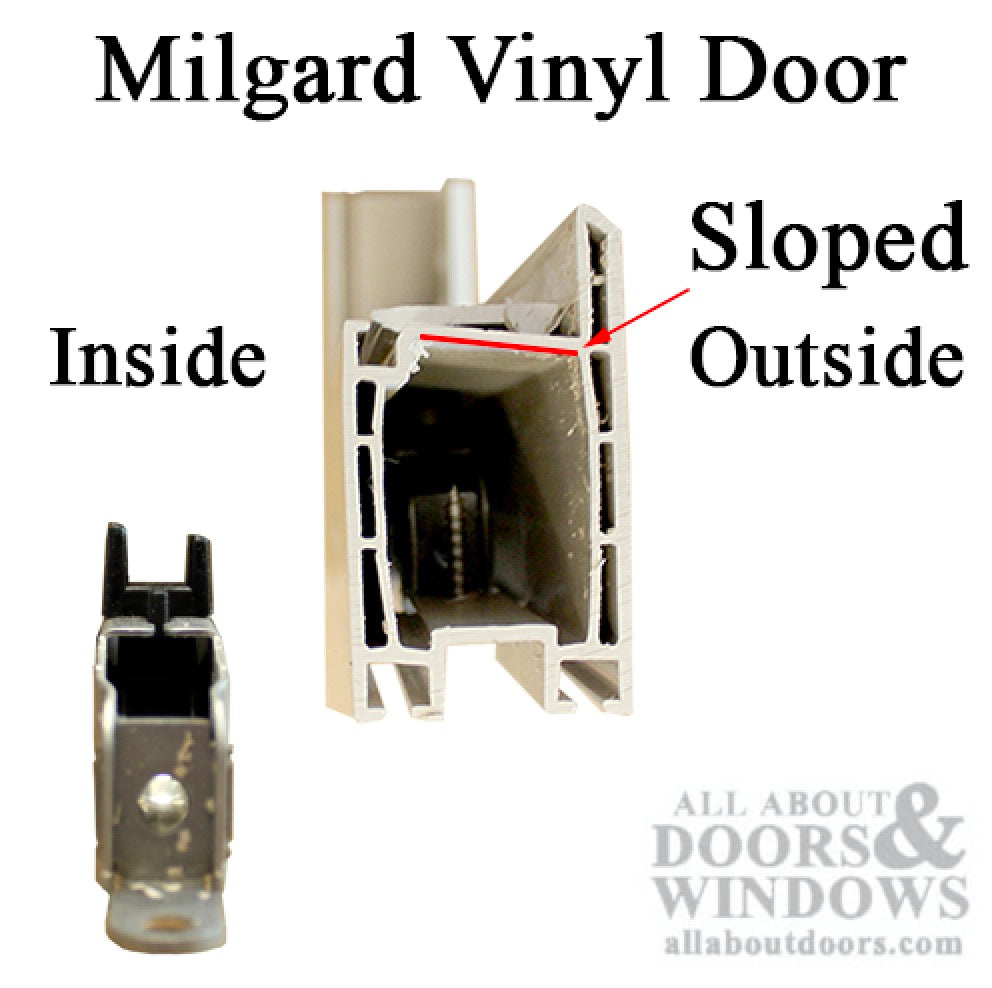

Handed: Yes, The Shorter leg goes to the OUTSIDE.
Spacer Measuring 1/2 x 15/16 x 1/2 inch tall on one side and 9/16 on other
Roller Wheel: 1-1/4 inch Steel
Screw hole spacing: 5-3/4 inch
Priced and sold each.
Replacement Note:

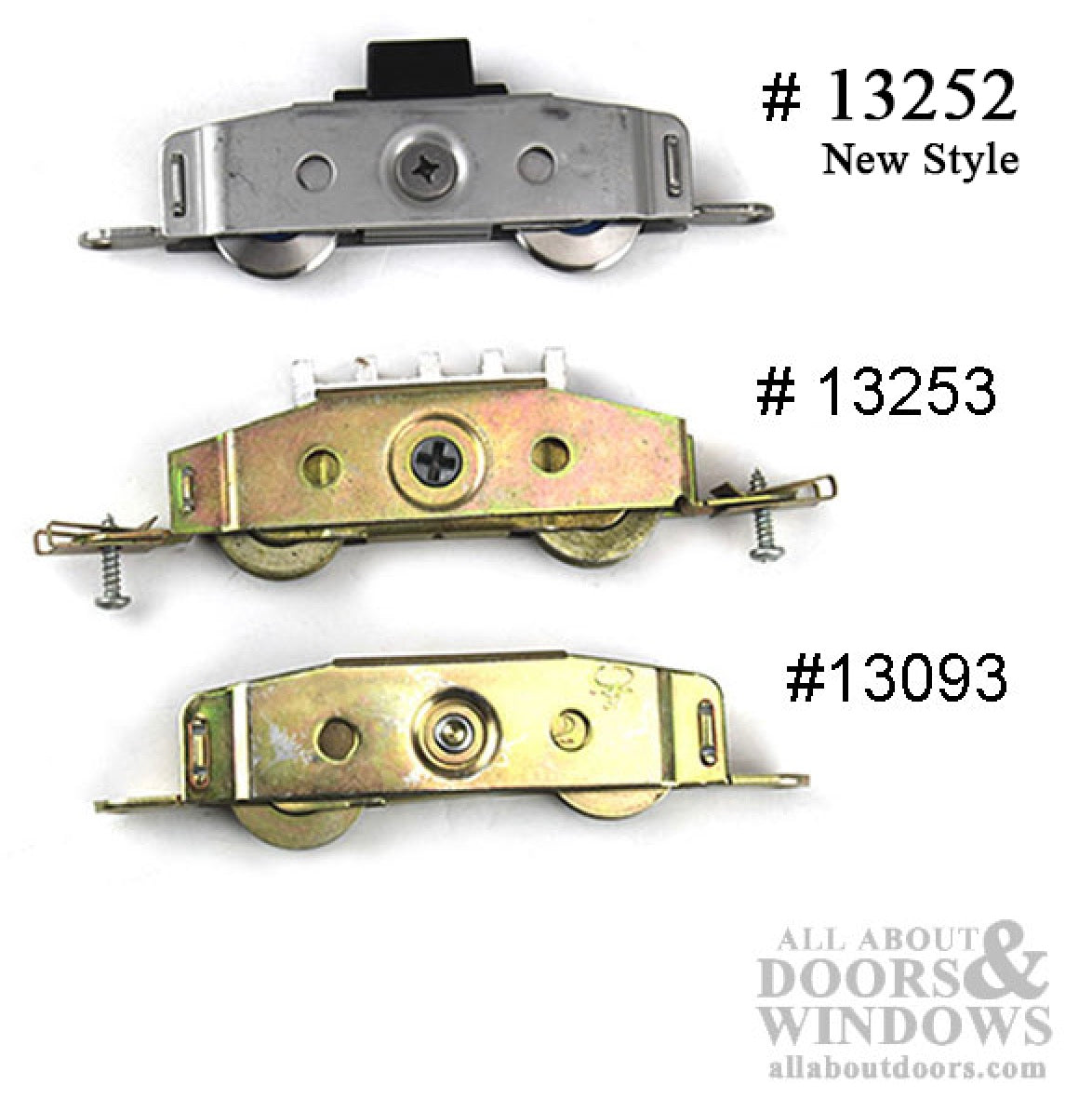

13243 Roller with 1-1/2 inch wheels (Discontinued)
13093 Roller with 1-1/4 inch wheels, but will require a spacer provided by others to fill space above housing.
The spacer provides support for the weight of the door and spreads the weight from the screws to the door Panel. The Spacer is necessary to prevent damage to door panel.
How to Adjust Sliding Door Rollers
